Installation Procedure

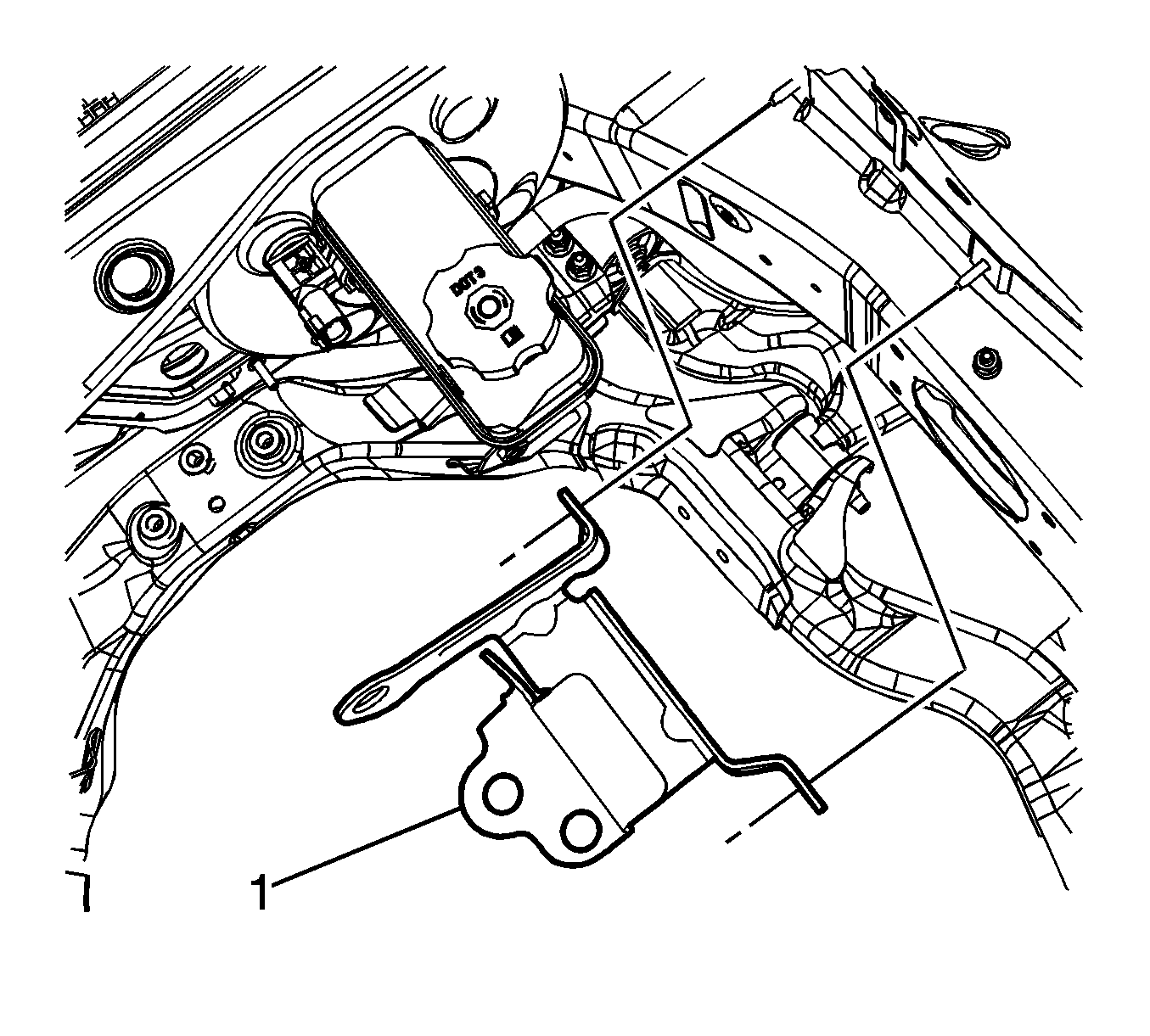

    Fig 1: BPMV Bracket
    GM2249461Courtesy of GENERAL MOTORS COMPANY
  1. Install the BPMV bracket (1).

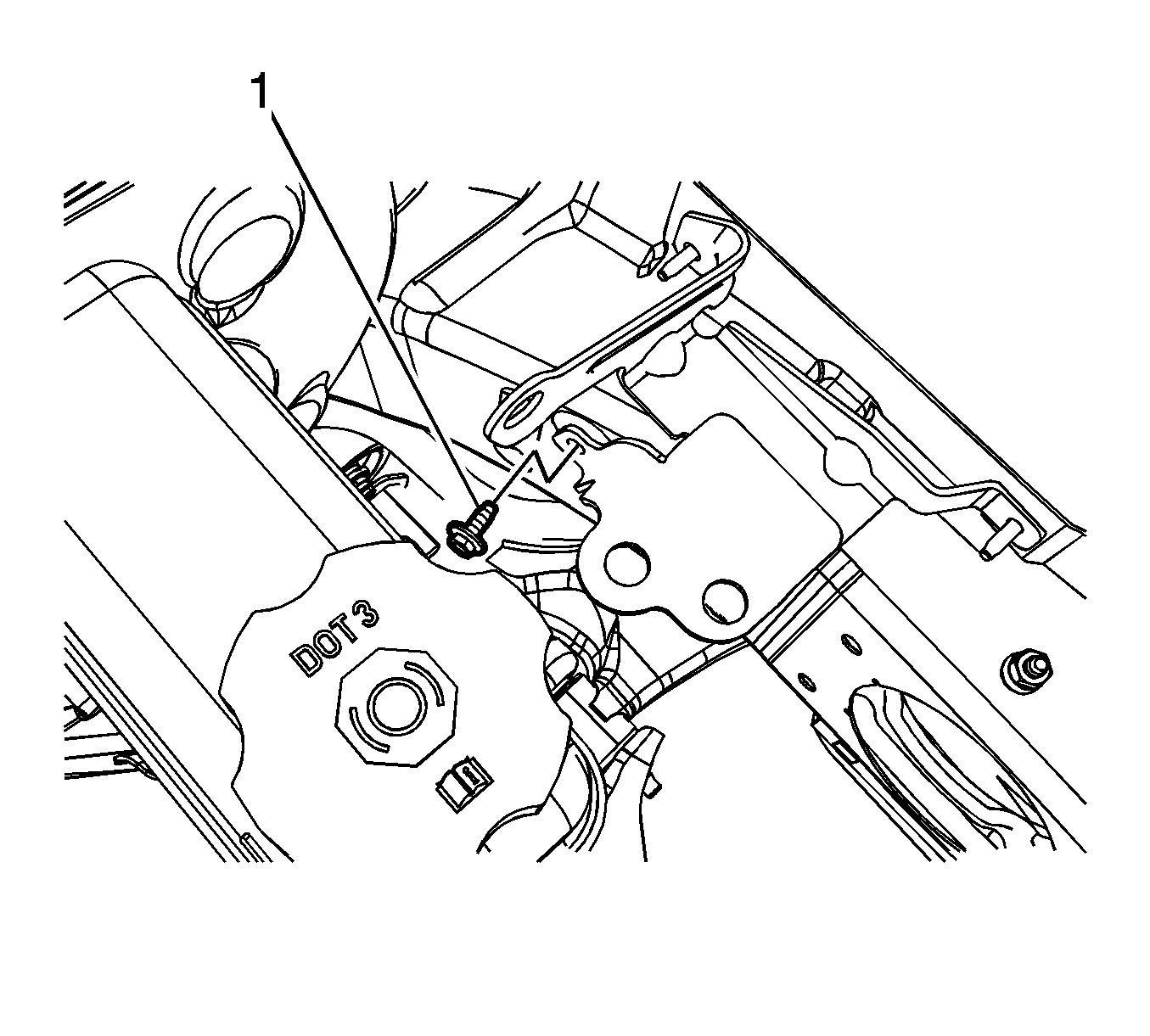

    2. Fig 2: BPMV Bracket Bolt
    GM2249458Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the BPMV bracket bolt (1) and tighten to 10 N.m (89 lb in).

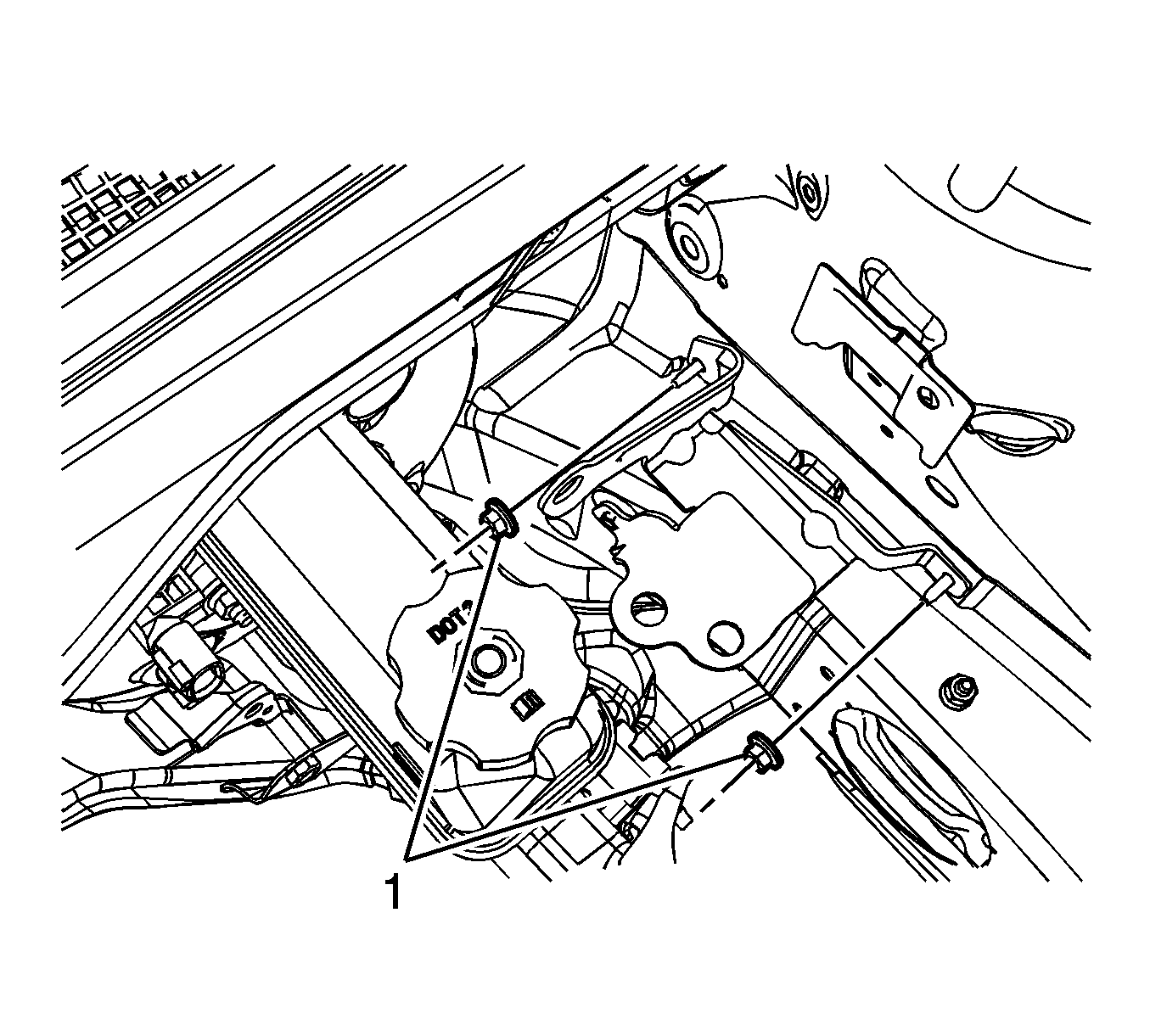

    3. Fig 3: BPMV Bracket Nuts
    GM2249456Courtesy of GENERAL MOTORS COMPANY
  3. Install the BPMV bracket nuts (1) and tighten to 10 N.m (89 lb in).
    4. Fig 4: BPMV Assembly
    GM1873931Courtesy of GENERAL MOTORS COMPANY
  4. Carefully position the BPMV assembly (1) to the BPMV bracket insulators.
    5. Fig 5: BPMV Bolt
    GM1873930Courtesy of GENERAL MOTORS COMPANY
  5. Install the BPMV bolt (1) and tighten to 10 N.m (89 lb in).
  6. Install the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement .
