Lane Departure Warning and Forward Collision Alert (UEU/UFL)

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

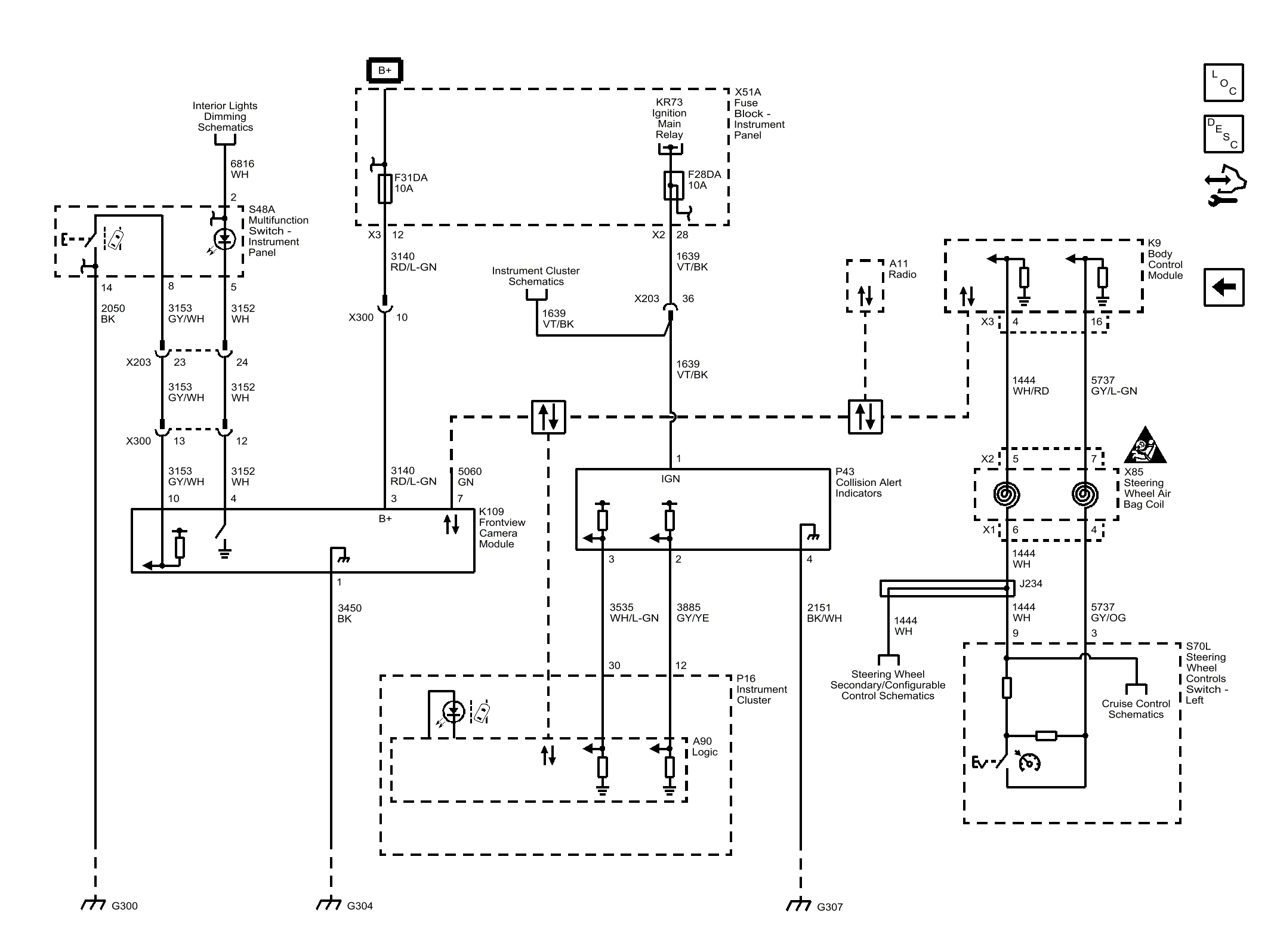

Fig 1: Lane Departure Warning and Forward Collision Alert (UEU/UFL)
GM4507661Courtesy of GENERAL MOTORS COMPANY
