Air Cleaner Element Replacement

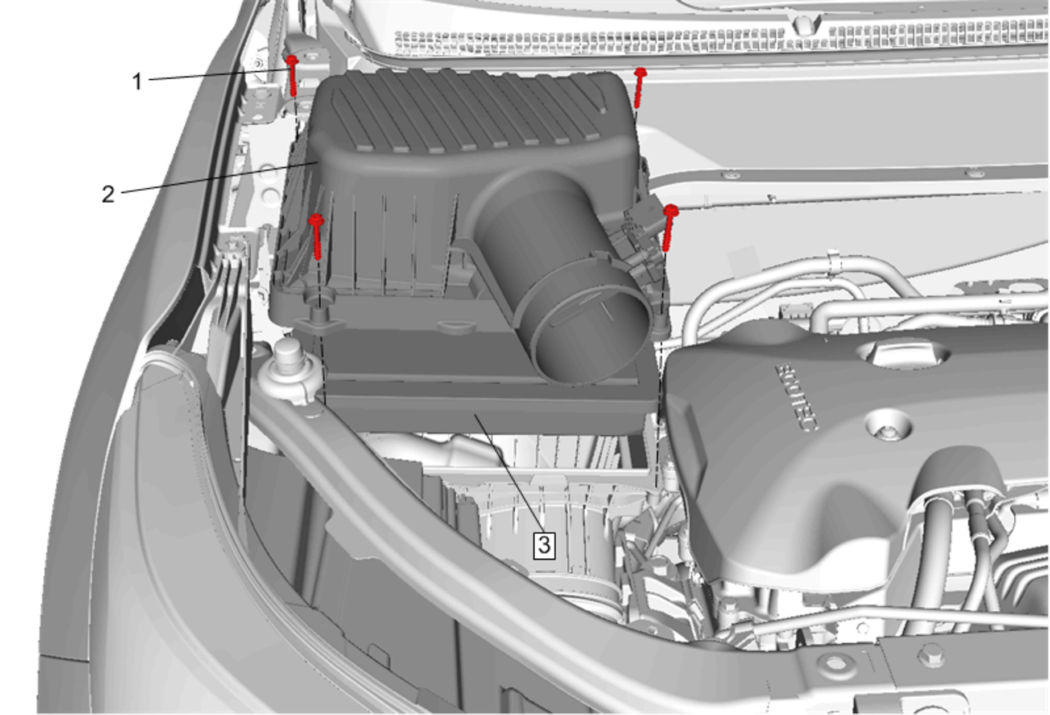

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement (Non-Tamperproof) Air Cleaner Outlet Duct Replacement (Tamperproof) Disconnect the electrical connector.
1	Air Cleaner Upper Housing Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element
