Camshaft Position Sensor Replacement - Intake

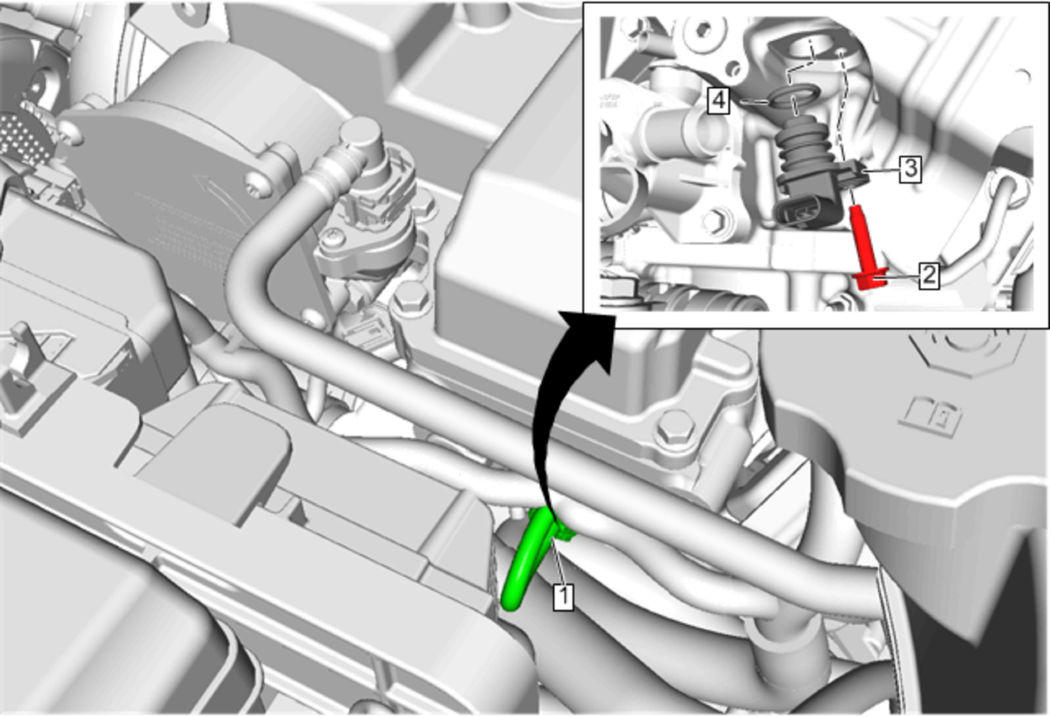

Fig 1: Camshaft Position Sensor - Intake
GM4676512Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Charge Air Cooler Outlet Air Tube Replacement
  2. Reposition Heater Inlet Hose @ Water Outlet - Water Outlet Replacement (LTG)
1 Electrical Connector
2 Camshaft Position Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
3 Camshaft Position Sensor
4 Camshaft Position Sensor Seal
Procedure
Install a NEW seal.
