Low Frequency Rear Compartment Antenna Replacement

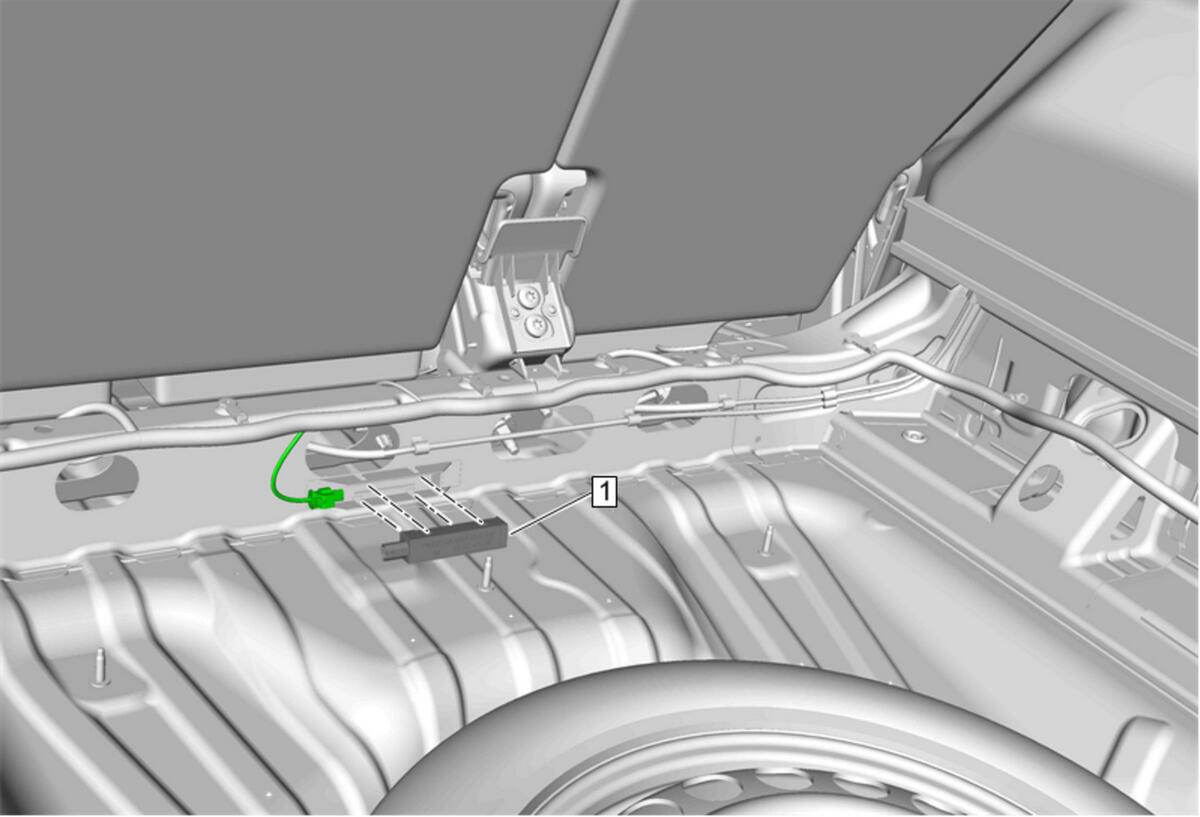

Fig 1: Low Frequency Rear Compartment Antenna
GM4597113Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Rear Compartment Floor Stowage Trim Compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement (Equinox)Rear Compartment Floor Stowage Trim Compartment Replacement (Terrain)
1 Low Frequency Rear Compartment Antenna

Procedure

  1. Reposition the carpet.
  2. Disconnect the electrical connector.
  3. Release the retaining tabs.
