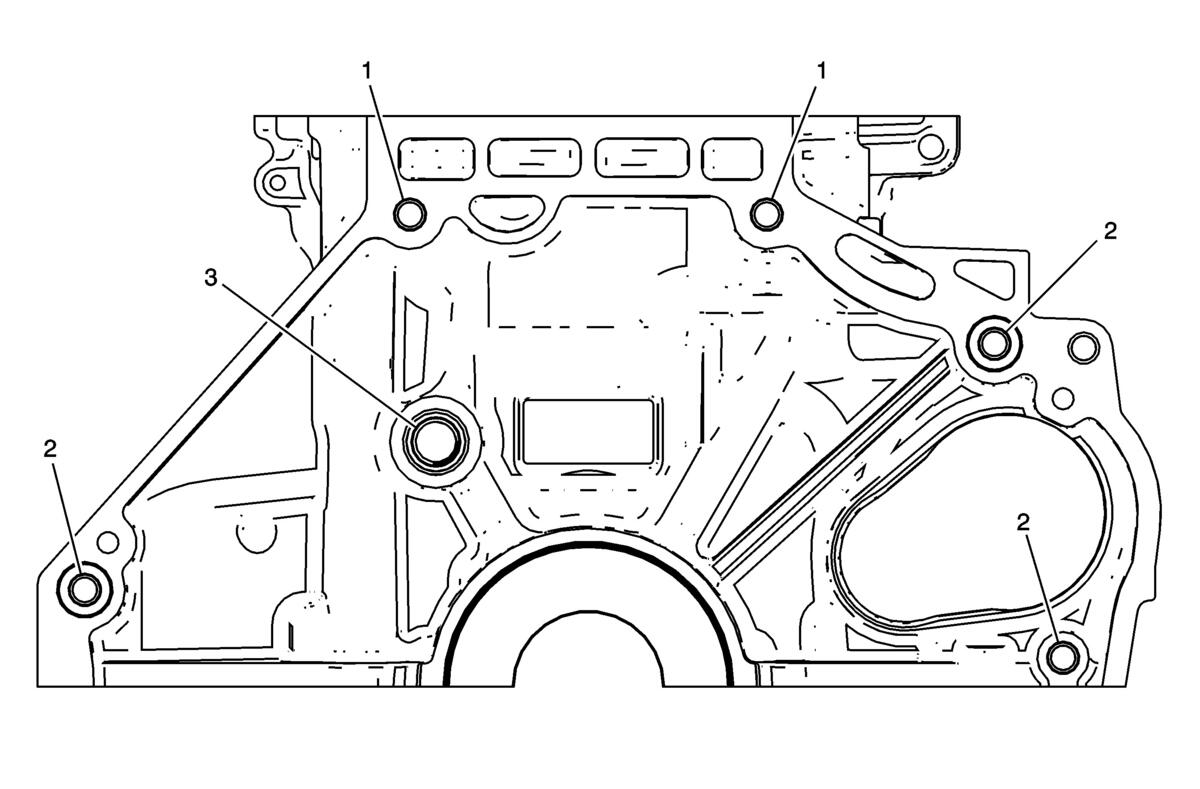

Engine Block - Rear View

GM3652948Courtesy of GENERAL MOTORS COMPANY
Engine Block - Rear View

Service Call Out Thread Size Insert Drill Counterbore Tool Tap Driver Drill Depth (Maximum) Tap Depth (Maximum)
EN 42385-400 MM (IN) MM (IN)
1 M10x1.5 904 211 212 213 903 36.0 1.417 36.0 1.417
2 M10x1.5 215 211 212 213 214 25.0 0.984 25.0 0.984
3 Not Serviced
