Installation Procedure

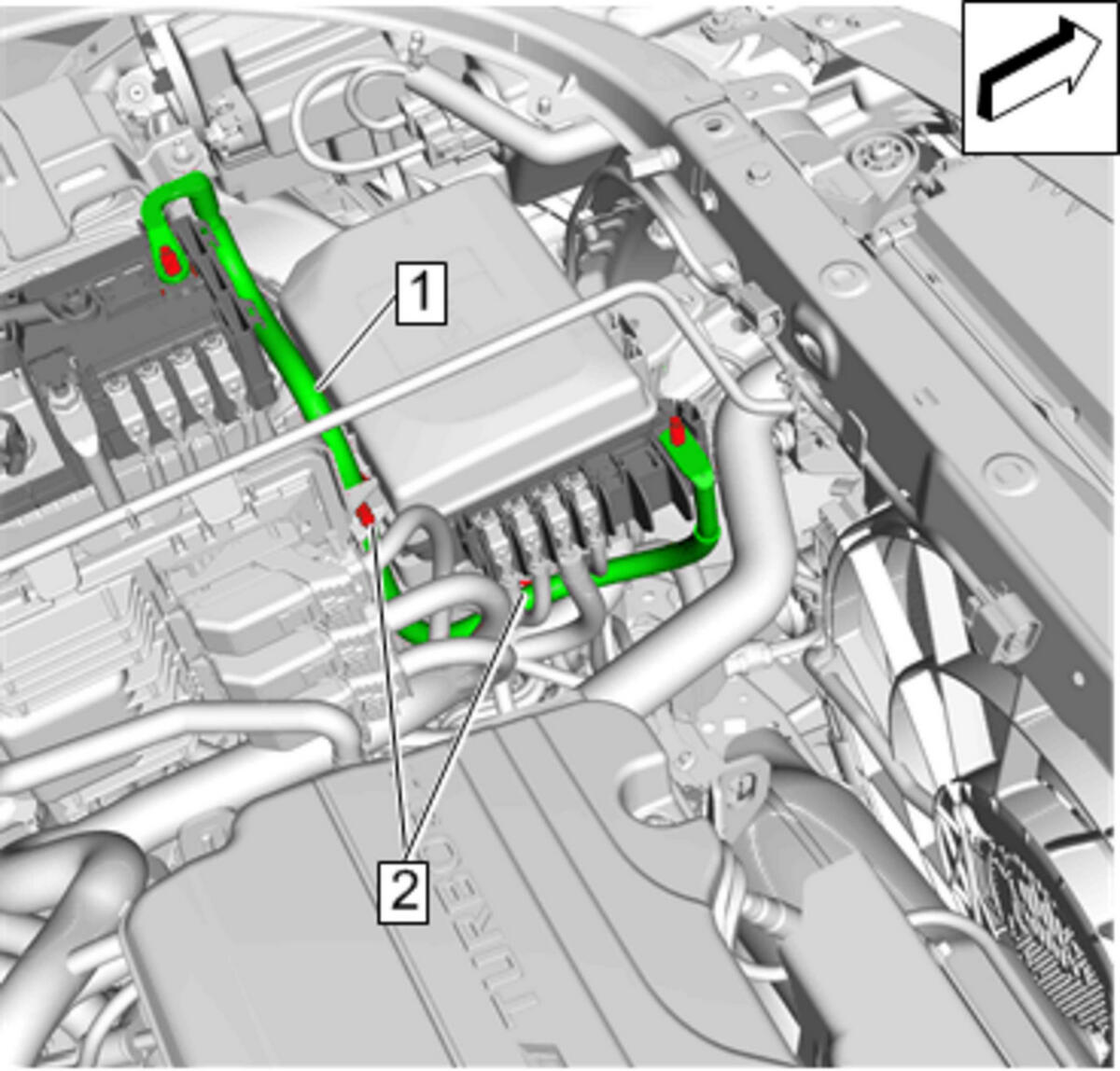

Battery Positive Junction Block Cable (1) - Install

Courtesy of GENERAL MOTORS COMPANY
Retainer (2) - Engage [2x]
Battery Positive Junction Block Cable (2) - Install

Courtesy of GENERAL MOTORS COMPANY

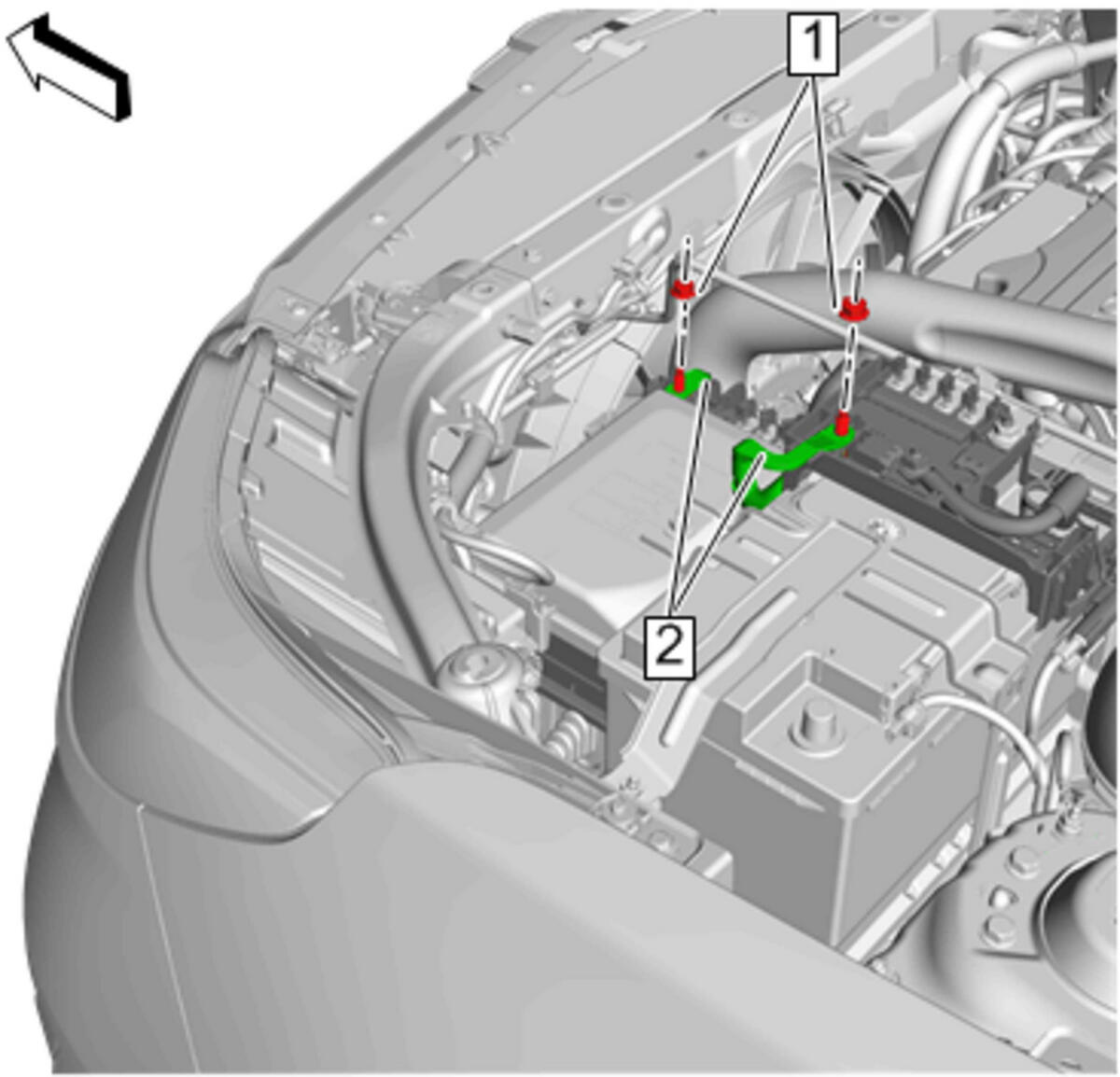

Battery Positive Junction Block Cable Nut (1) - Install and tighten [2x] 12 N.m (106 lb in)
CAUTION:
Refer to Fastener Caution .

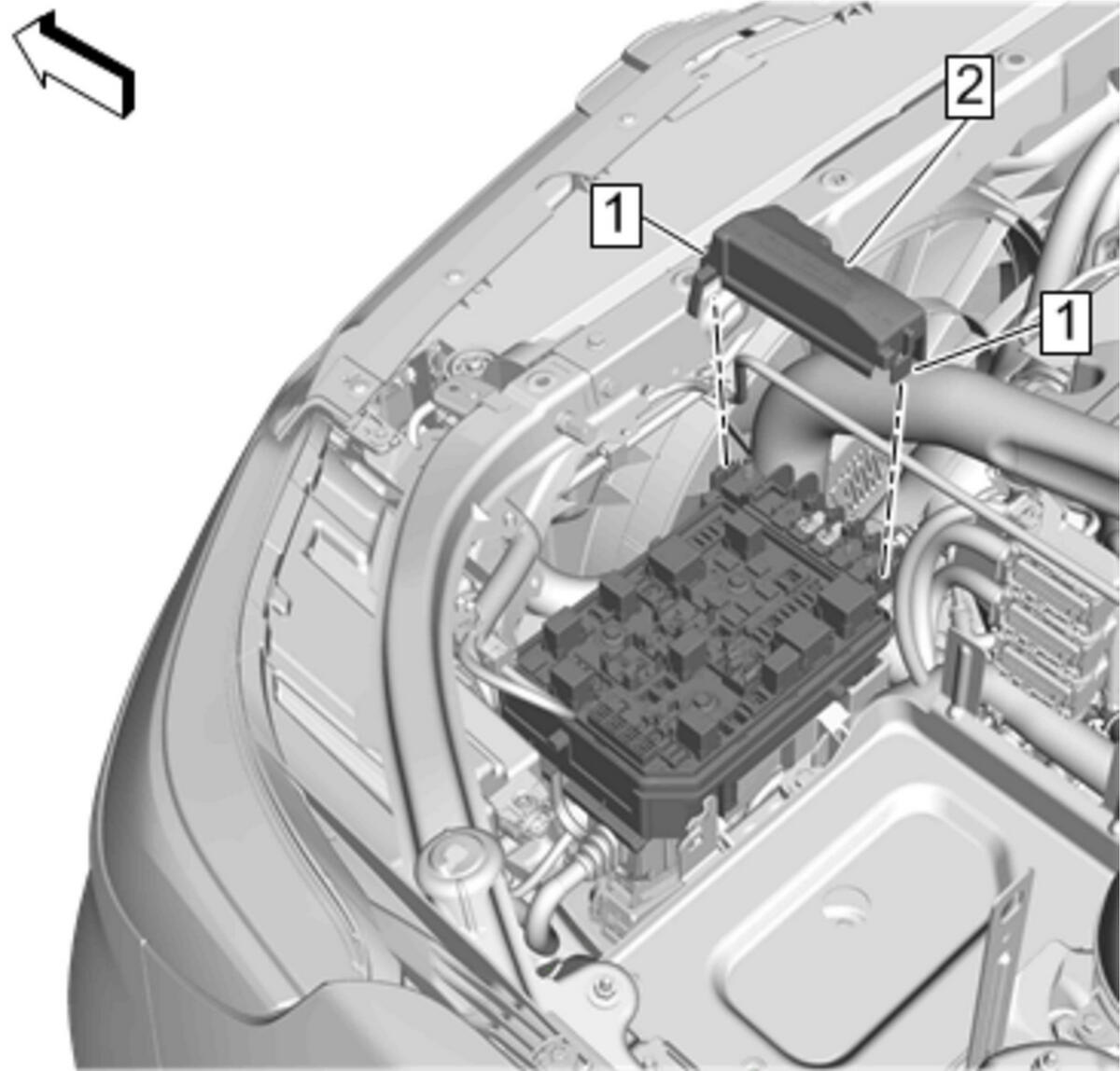

Junction Block Cover (2) - Install

Courtesy of GENERAL MOTORS COMPANY
Retaining Tab (1) - Engage [2x]

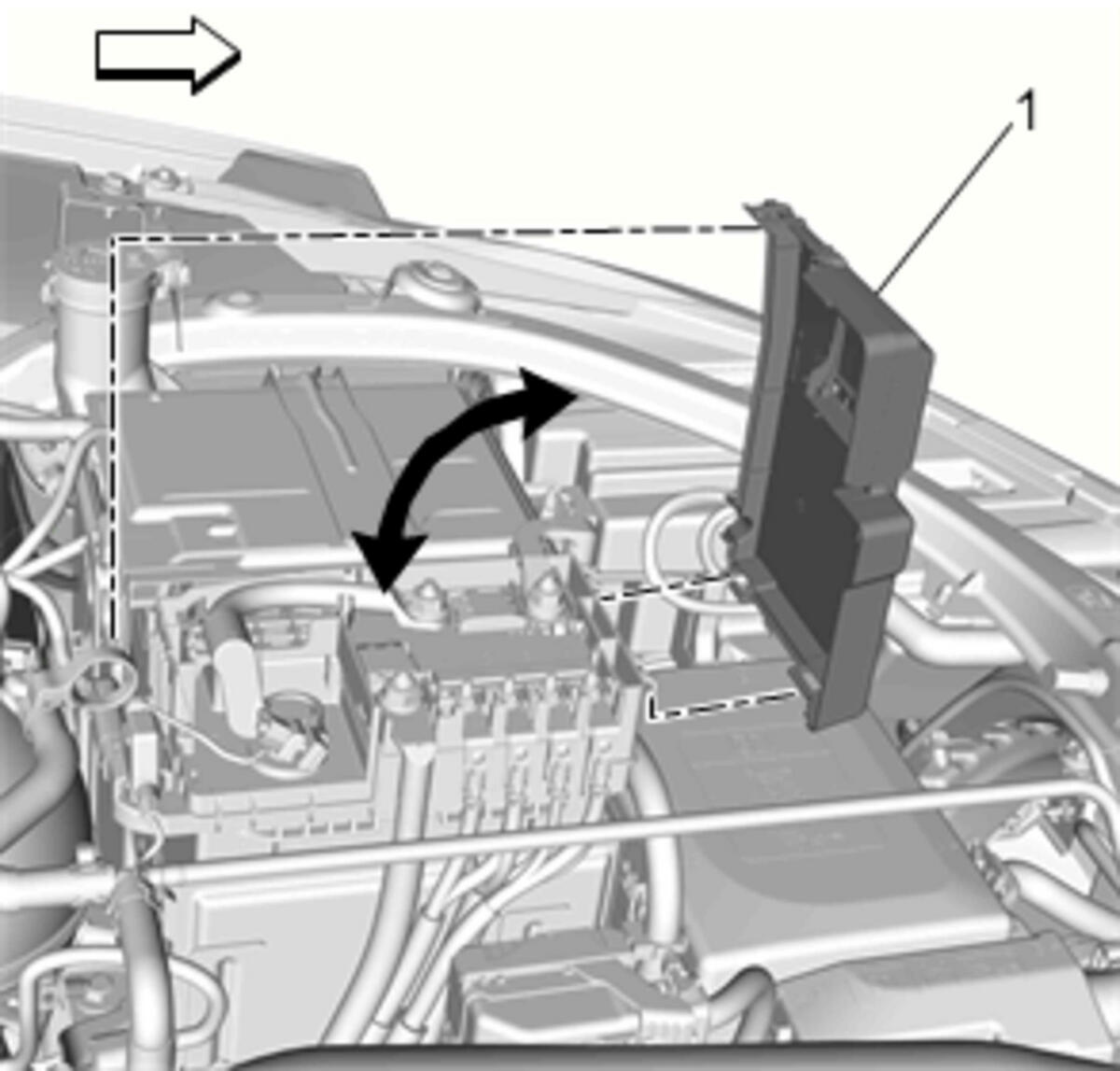

Battery Distribution Engine Compartment Fuse Block Cover (1) - Close

Courtesy of GENERAL MOTORS COMPANY
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9) .
