Installation Procedure

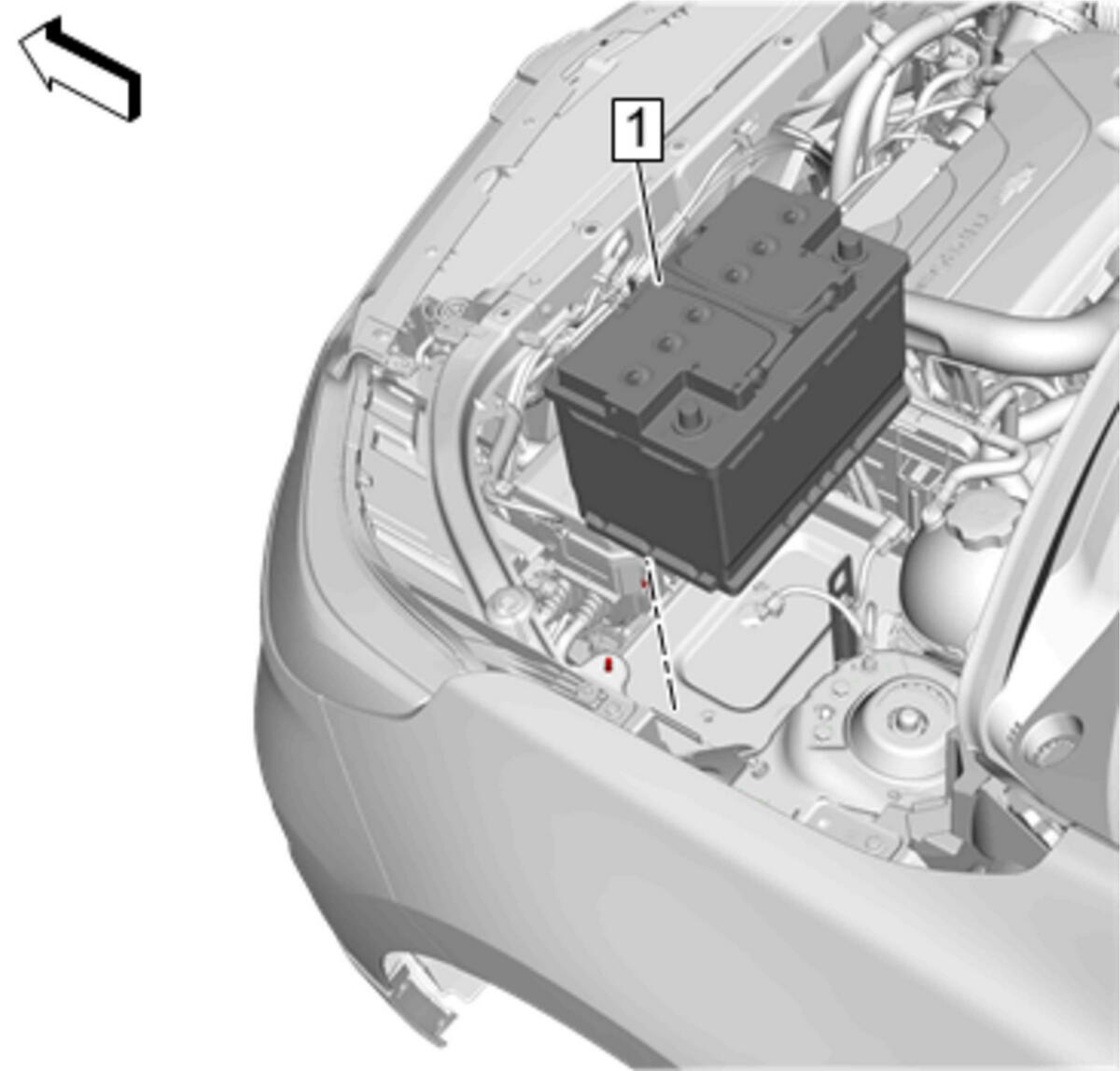

Battery (1) - Install

Courtesy of GENERAL MOTORS COMPANY

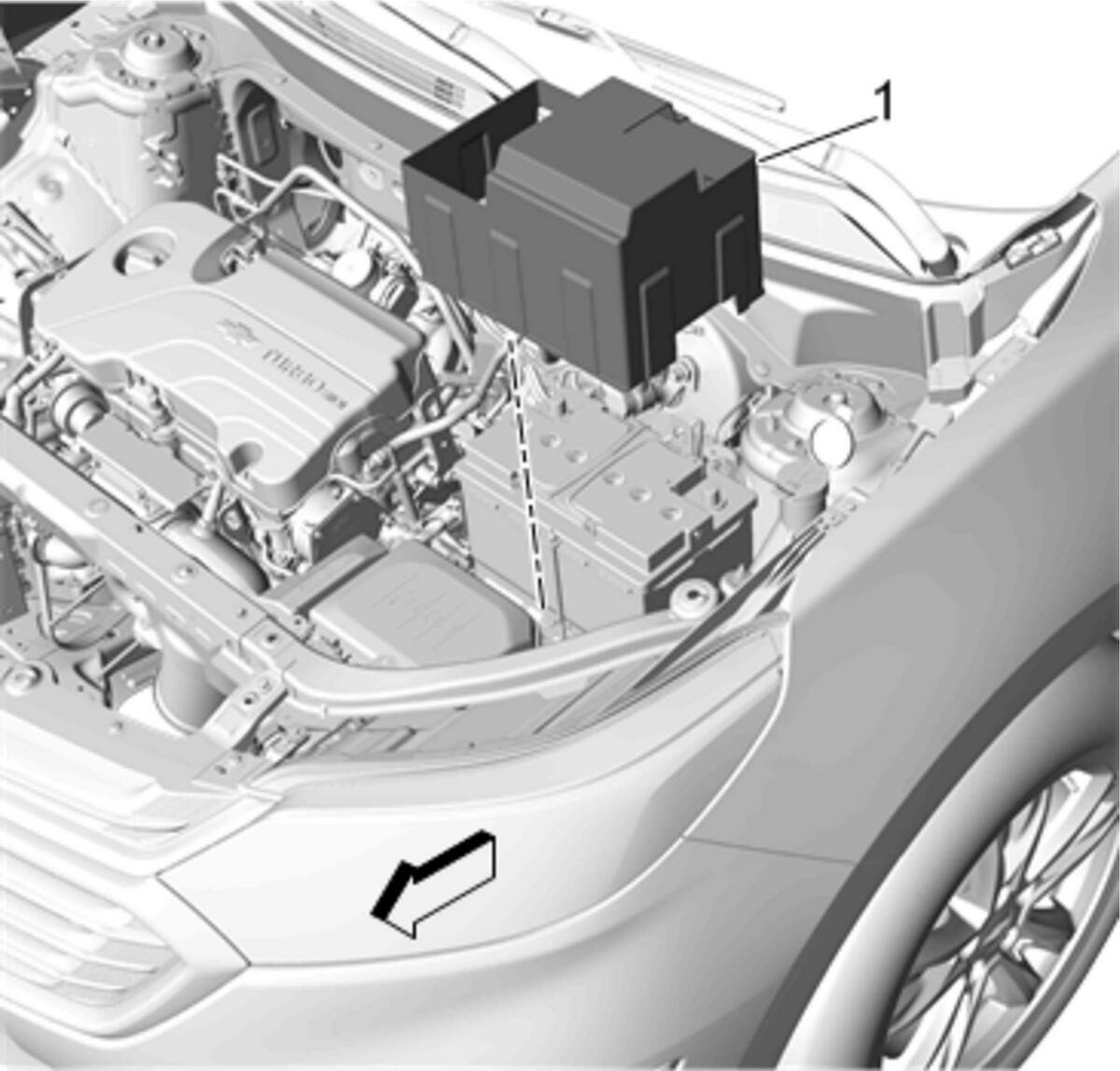

Battery Cover (1) - Install

Courtesy of GENERAL MOTORS COMPANY

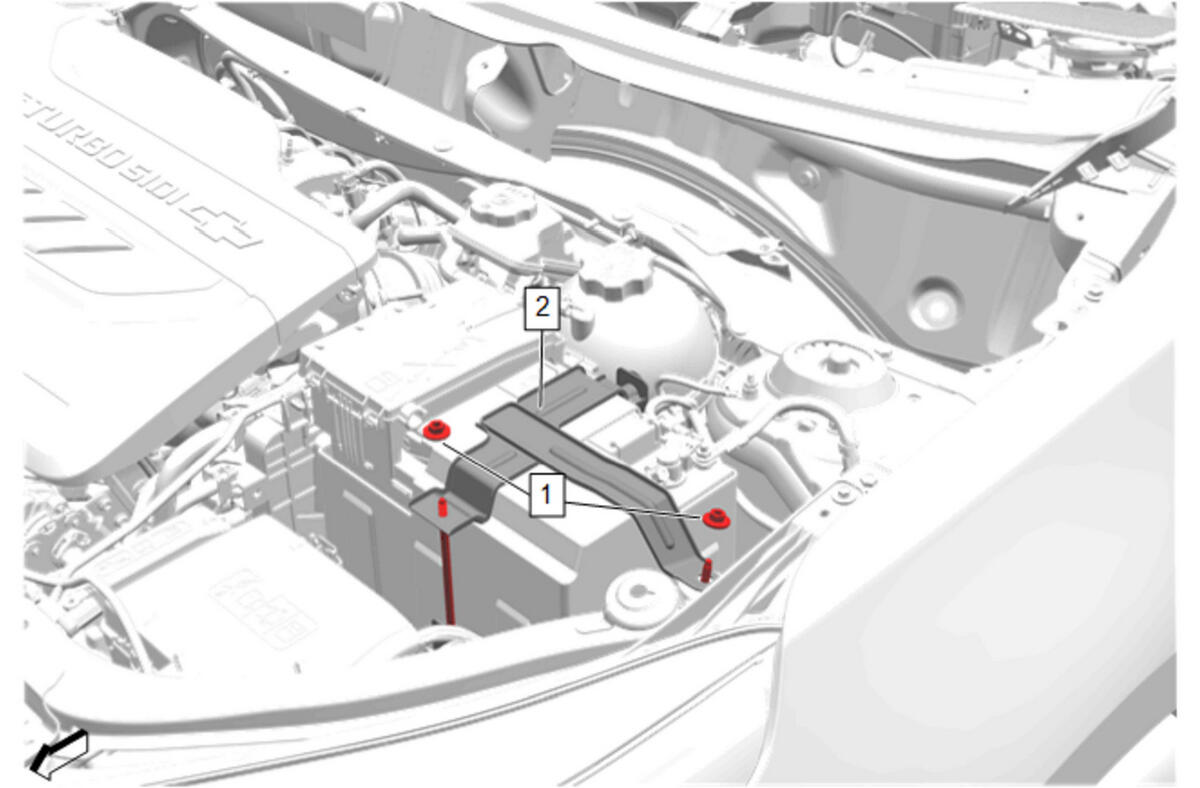

Battery Hold Down Retainer (2) - Install

Courtesy of GENERAL MOTORS COMPANY
Battery Hold Down Retainer Nut (1) - Install and tighten [2x] 5 N.m (44 lb in)
CAUTION:
Refer to Fastener Caution .

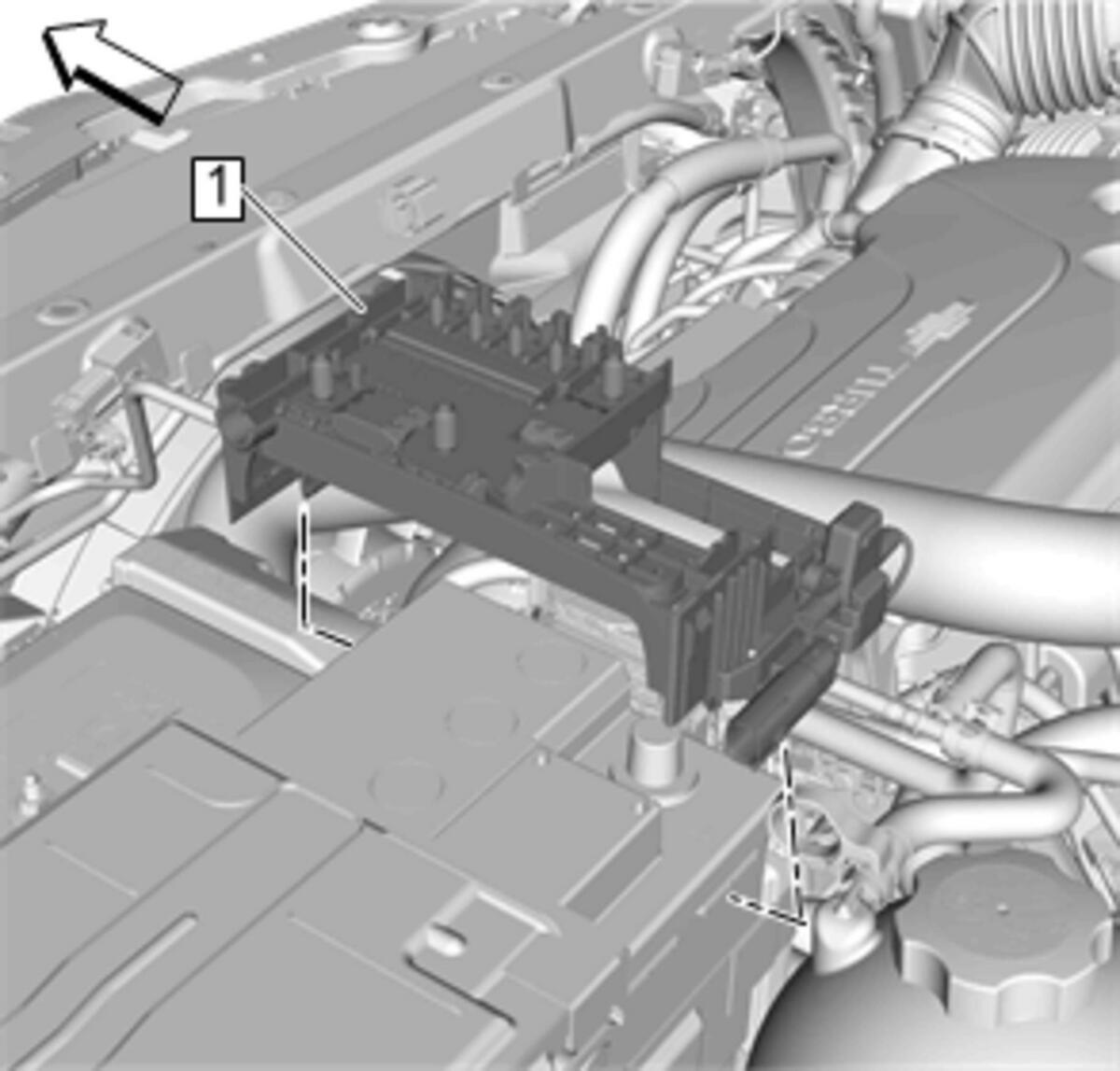

Battery Distribution Engine Compartment Fuse Block (1) - Install - Battery Distribution Engine Compartment Fuse Block Replacement .

Courtesy of GENERAL MOTORS COMPANY
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9) .
