Installation Procedure

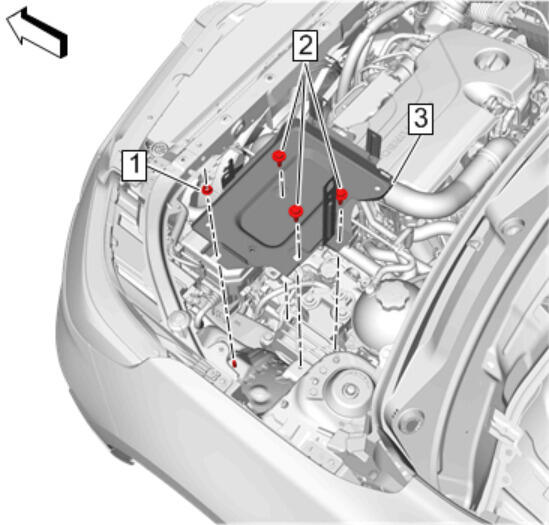

- Battery Tray (3) - Install
- Battery Tray Mounting Bolt (2) - Install and tighten [3x] 22 N.m (16 lb ft)CAUTION:
Refer to Fastener Caution .
- Battery Tray Mounting Nut (1) - Install and tighten 22 N.m (16 lb ft)

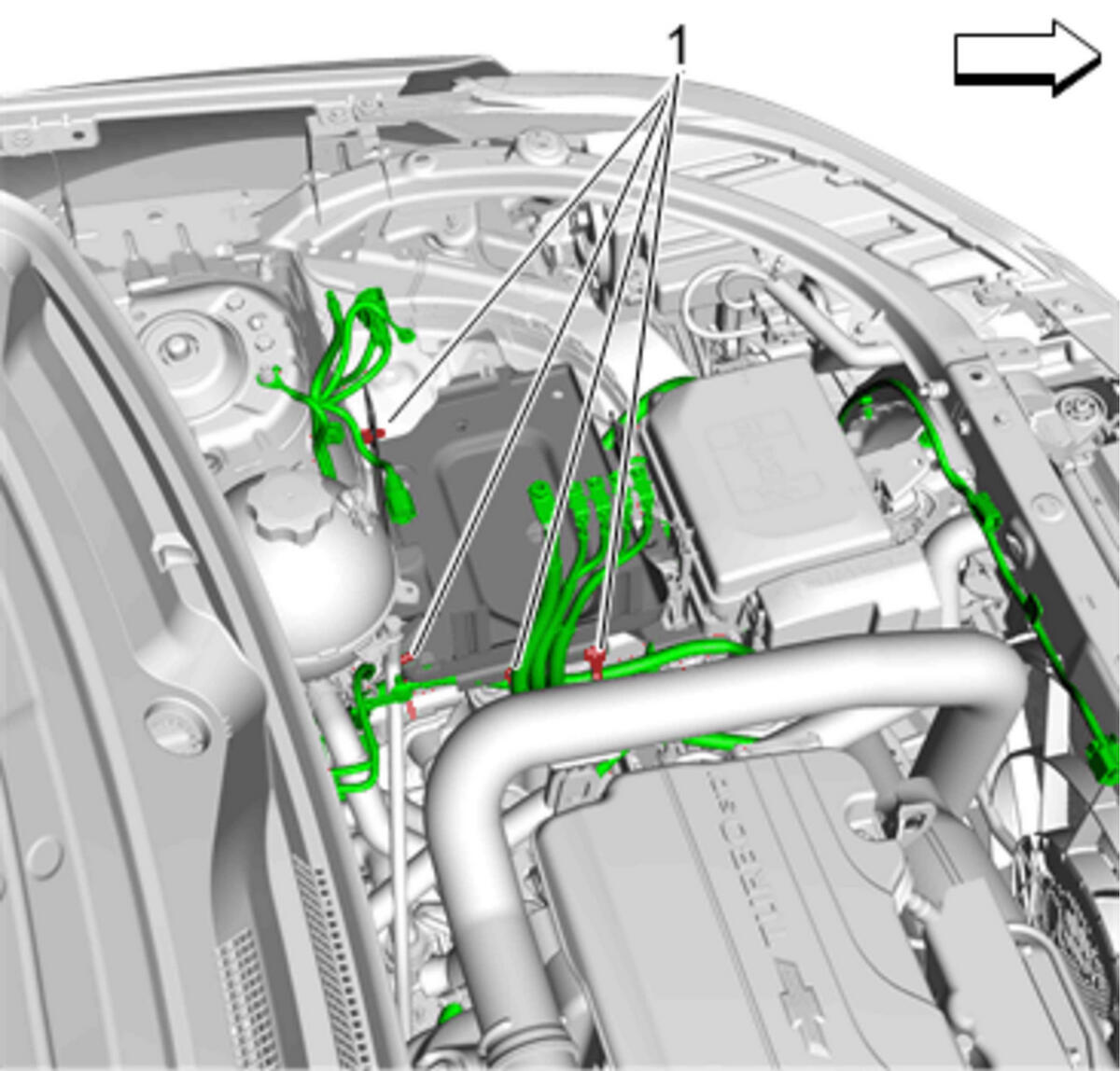

- Retainer (1) - Engage [4x]
- Install the engine control module bracket. Engine Control Module Bracket Replacement .

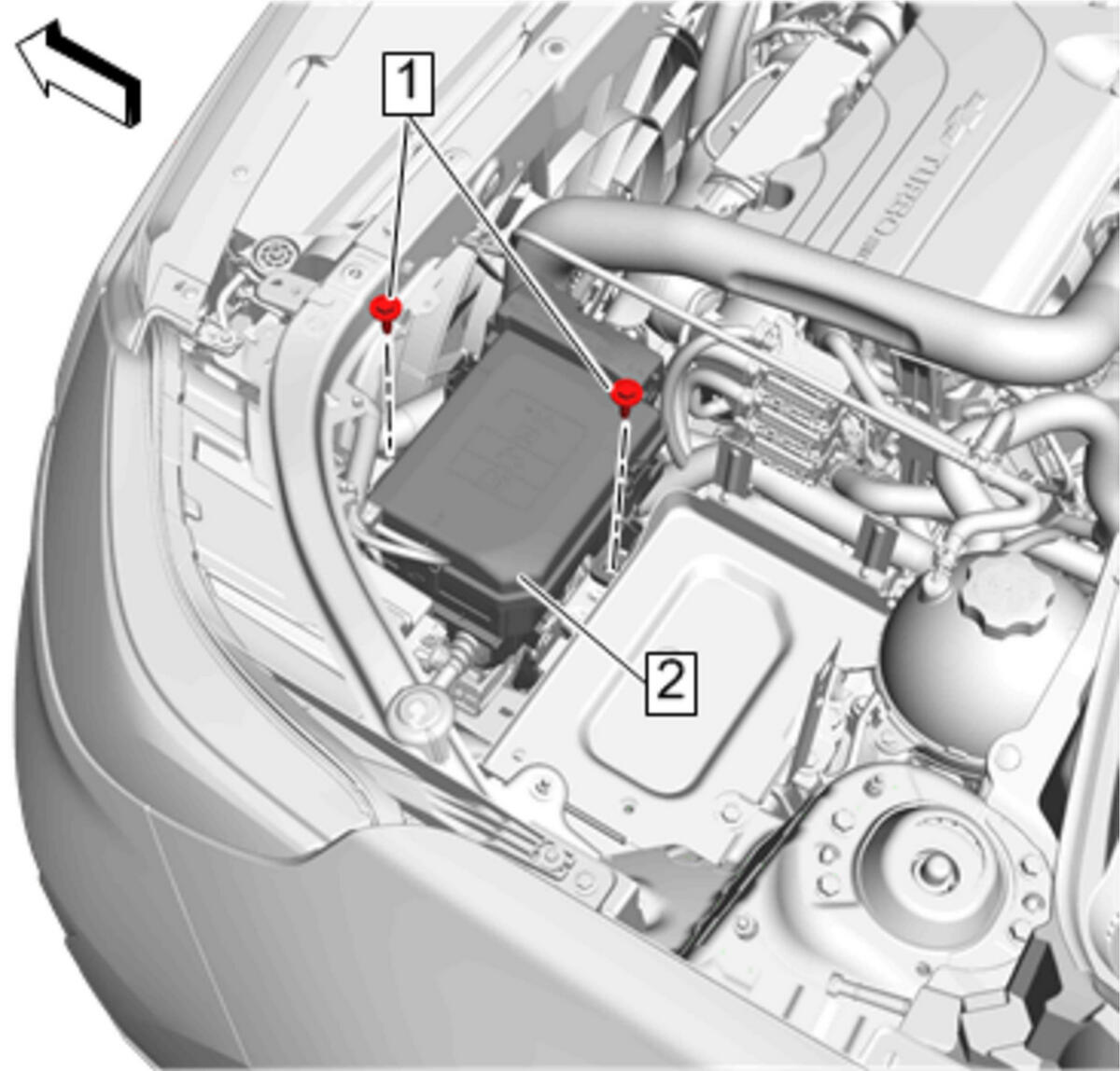

- Engine Wiring Harness Junction Block (2) - Install
- Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Battery (1) - Install - Battery Replacement .
