Installation Procedure
- Generator Shield (3) - Install
- Generator Nut (2) - Install and tighten 22 N.m (16 lb ft)CAUTION:
Refer to Fastener Caution .
- Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)
- Raise and support the vehicle. Lifting and Jacking the Vehicle .

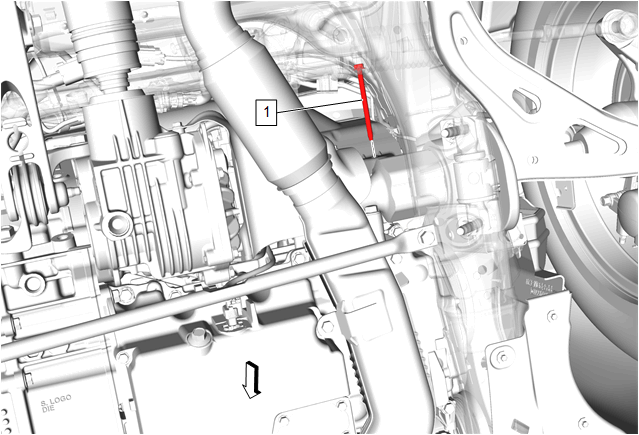

- Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)
- Lower the vehicle.
- If necessary, connect the fuel feed pipe. Fuel Feed Front Pipe Replacement .
- Intake Manifold Cover - Install - Intake Manifold Cover Replacement .

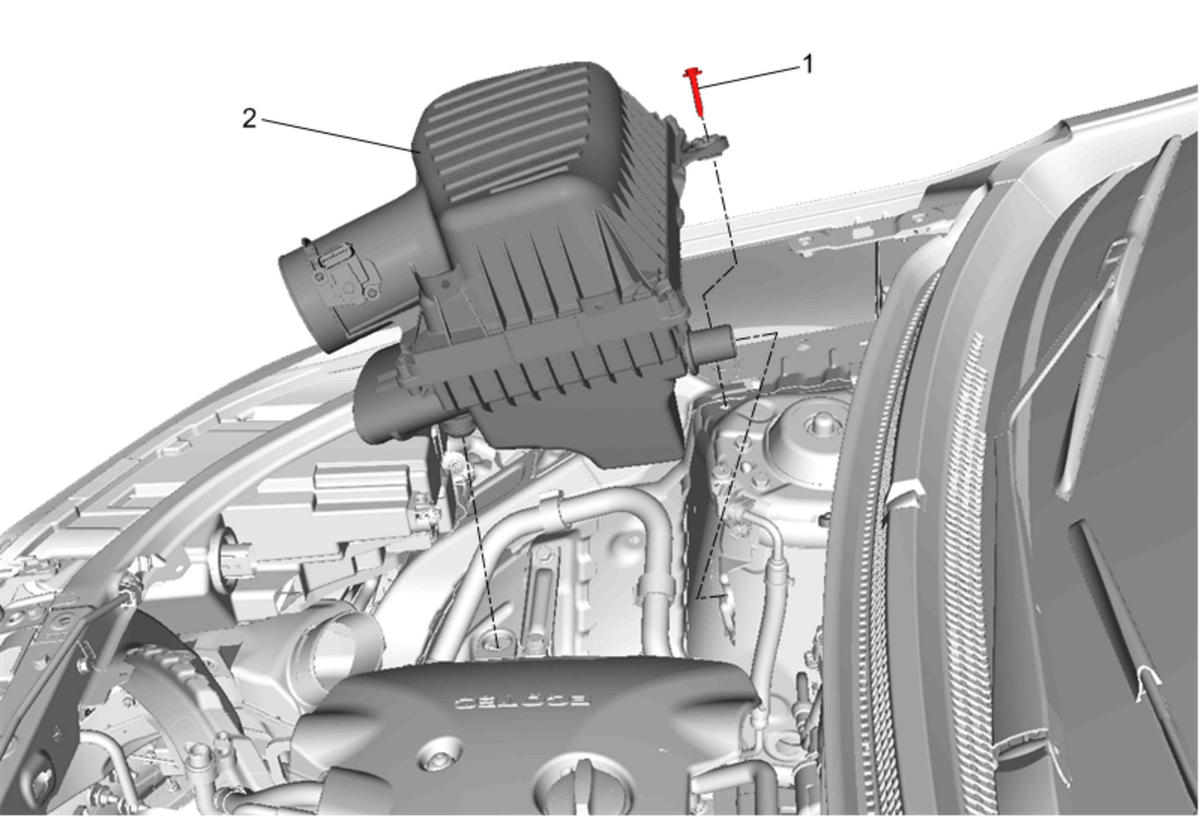

- Air Cleaner Assembly (2) - Install - Air Cleaner Assembly Replacement
.
