Driver Door Components

WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

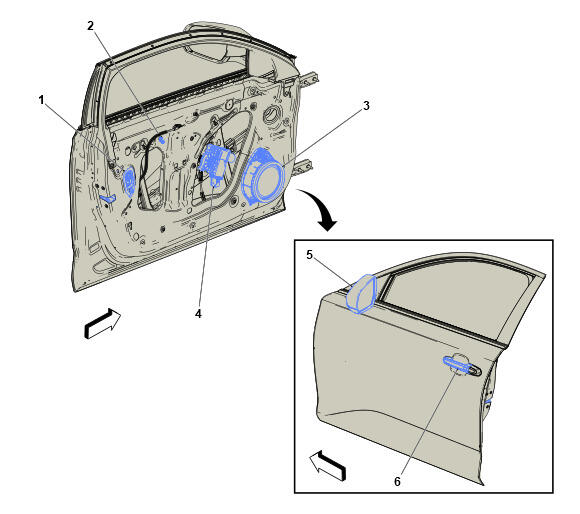

GM5393486Courtesy of GENERAL MOTORS COMPANY
Driver Door Components

Component Name Callout
A23D Front Side Door Latch - Driver A23D Front Side Door Latch - Driver 1
B63LF Airbag Side Impact Sensor - Left Front Door B63LF Airbag Side Impact Sensor - Left Front Door 2
P19AG Radio Front Side Door Speaker - Left P19AG Radio Front Side Door Speaker - Left (UQG) , or P19AG Radio Front Side Door Speaker - Left (UQS) 3
M74D Front Side Door Window Regulator Motor - Driver M74D Front Side Door Window Regulator Motor - Driver 4
A9A Outside Rearview Mirror - Driver 5
A24D Front Side Door Outside Handle - Left A24D Front Side Door Outside Handle - Left 6
