Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:

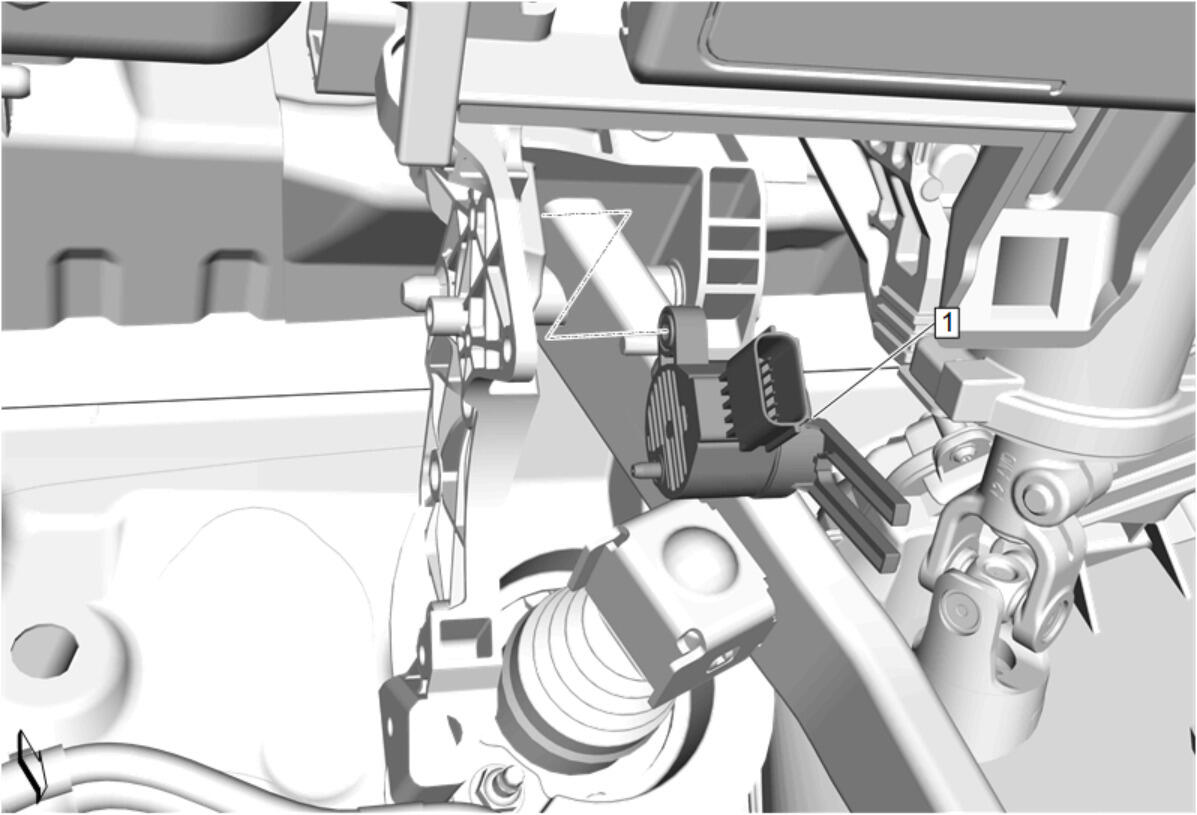

Position the fork of the brake pedal position sensor over the brake pedal arm pin.
Brake Pedal Position Sensor (1) - Install
- CAUTION:

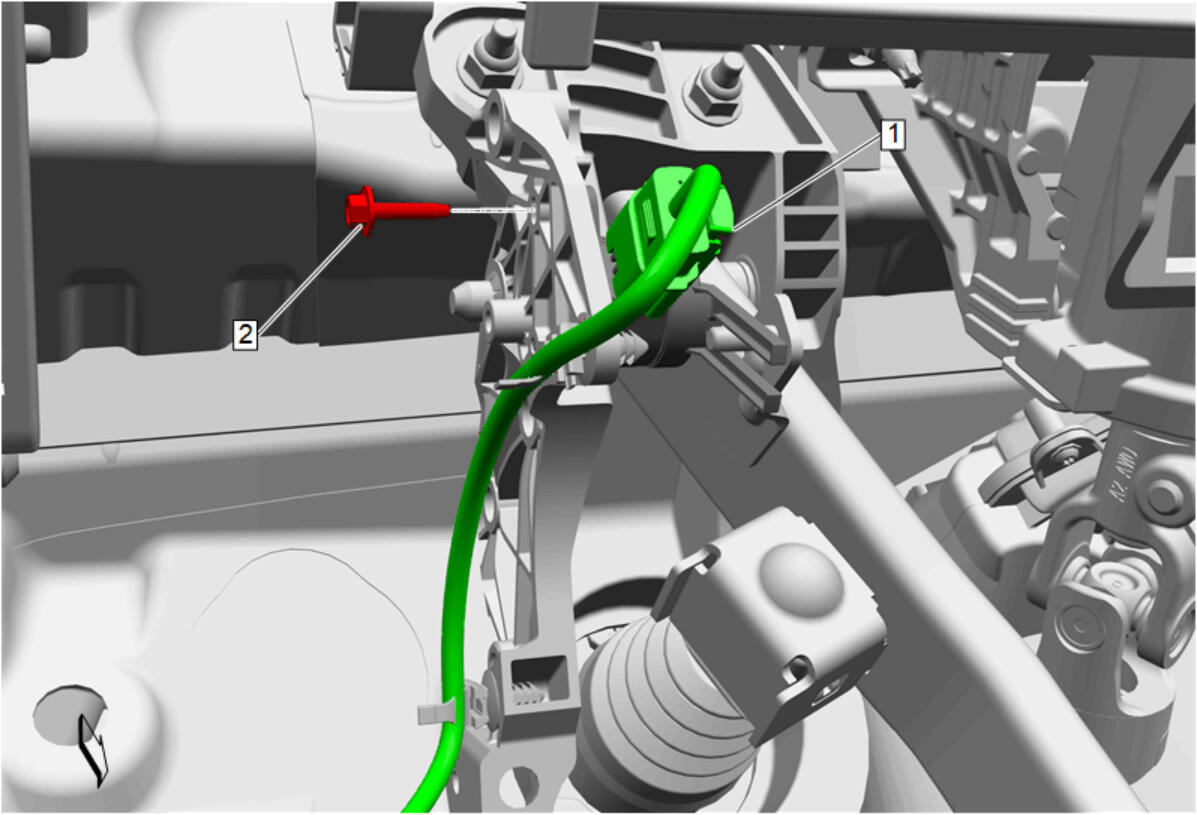

Brake Pedal Position Sensor Bolt (2) - Install and tighten to 3 N.m (27 lb in)
- Brake Pedal Position Sensor Electrical Connector (1) - Connect
- Instrument Panel Lower Trim Panel Insulator - Left Side - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
