Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

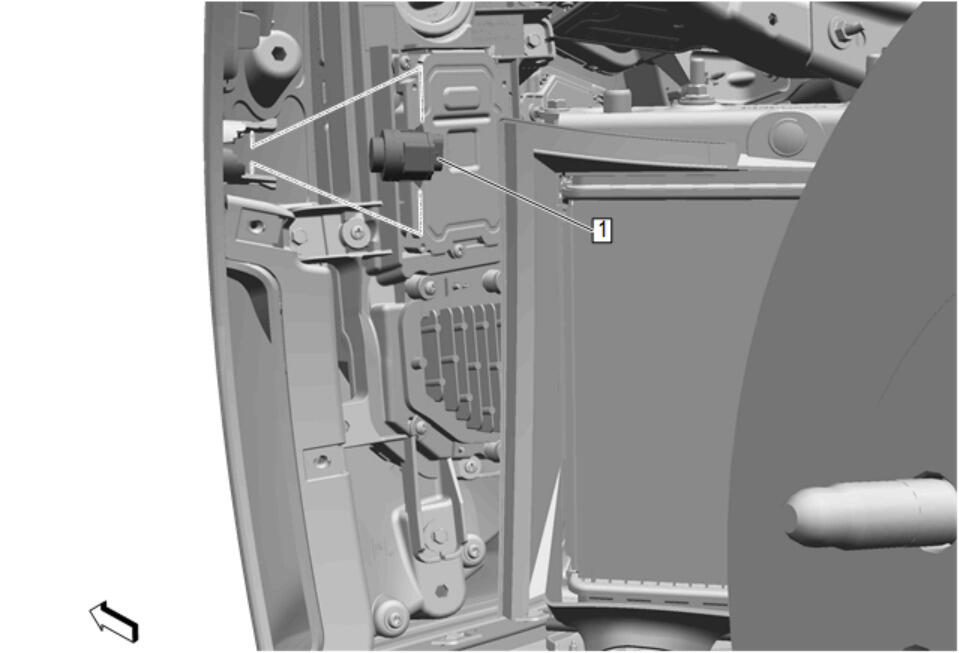

Insert the advanced parking assist front object sensor (1) into the housing.
- Connect the electrical connector.
- Install the front wheelhouse liner. Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
