Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5332049Courtesy of GENERAL MOTORS COMPANY

    Front Floor Panel Carpet-Right Side (2) - Remove - Front Floor Panel Carpet Replacement - Right Side

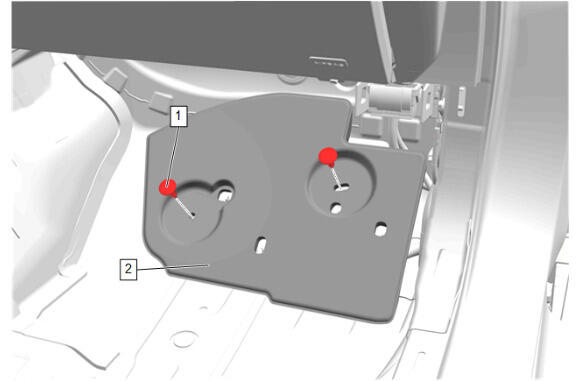

  2. GM5865939Courtesy of GENERAL MOTORS COMPANY

    Front Floor Panel Carpet Filler Retainer (1) - Remove [2x]

  3. Footrest Energy Absorber (2) - Remove

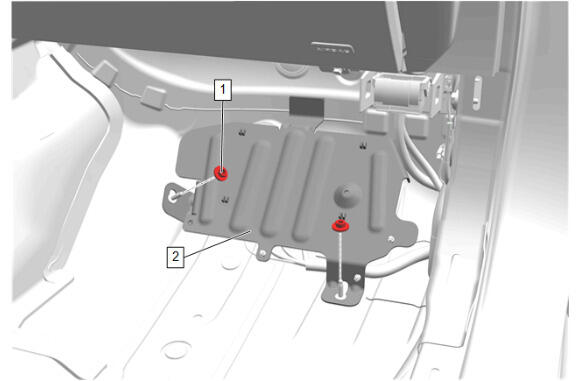

  4. GM5865942Courtesy of GENERAL MOTORS COMPANY

    Vehicle Performance Data Recorder Bracket Nut (1) - Remove [2x]

  5. Vehicle Performance Data Recorder Bracket (2) - Remove

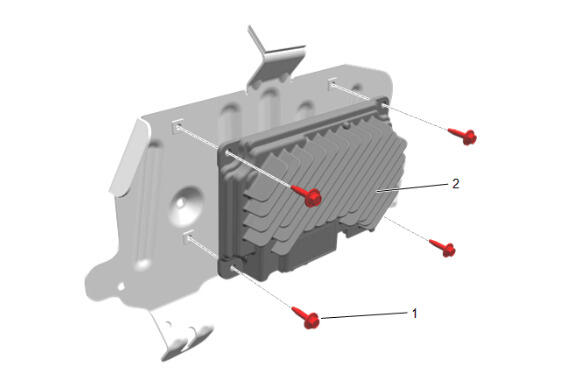

  6. GM5865944Courtesy of GENERAL MOTORS COMPANY

    Vehicle Performance Data Recorder Bolt (1) - Remove [4x]

  7. Vehicle Performance Data Recorder (2) - Remove
