Multimedia Receptacle Replacement
WARNING: This page is about a different car, the 2021 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

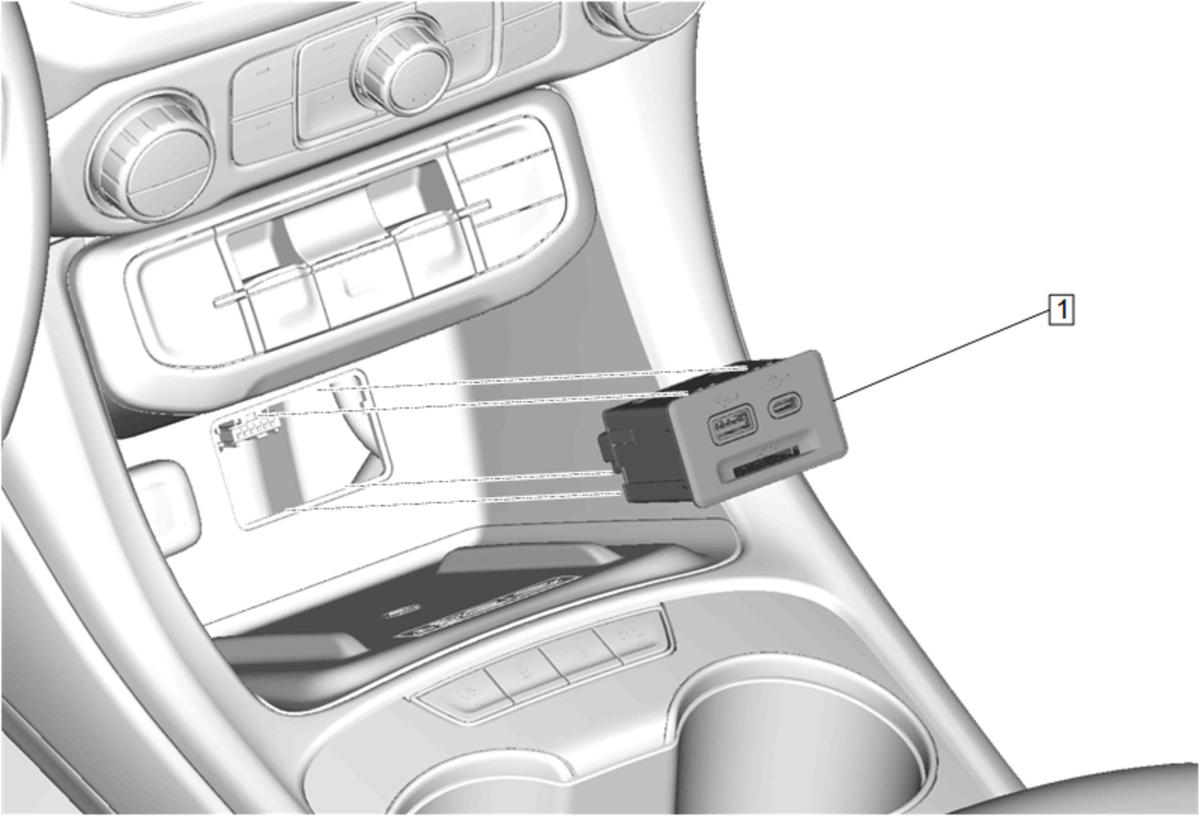

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Multimedia Receptacle Procedure
- Use a flat bladed plastic tool to remove.
- Disconnect the electrical connector.
|
