Installation Procedure

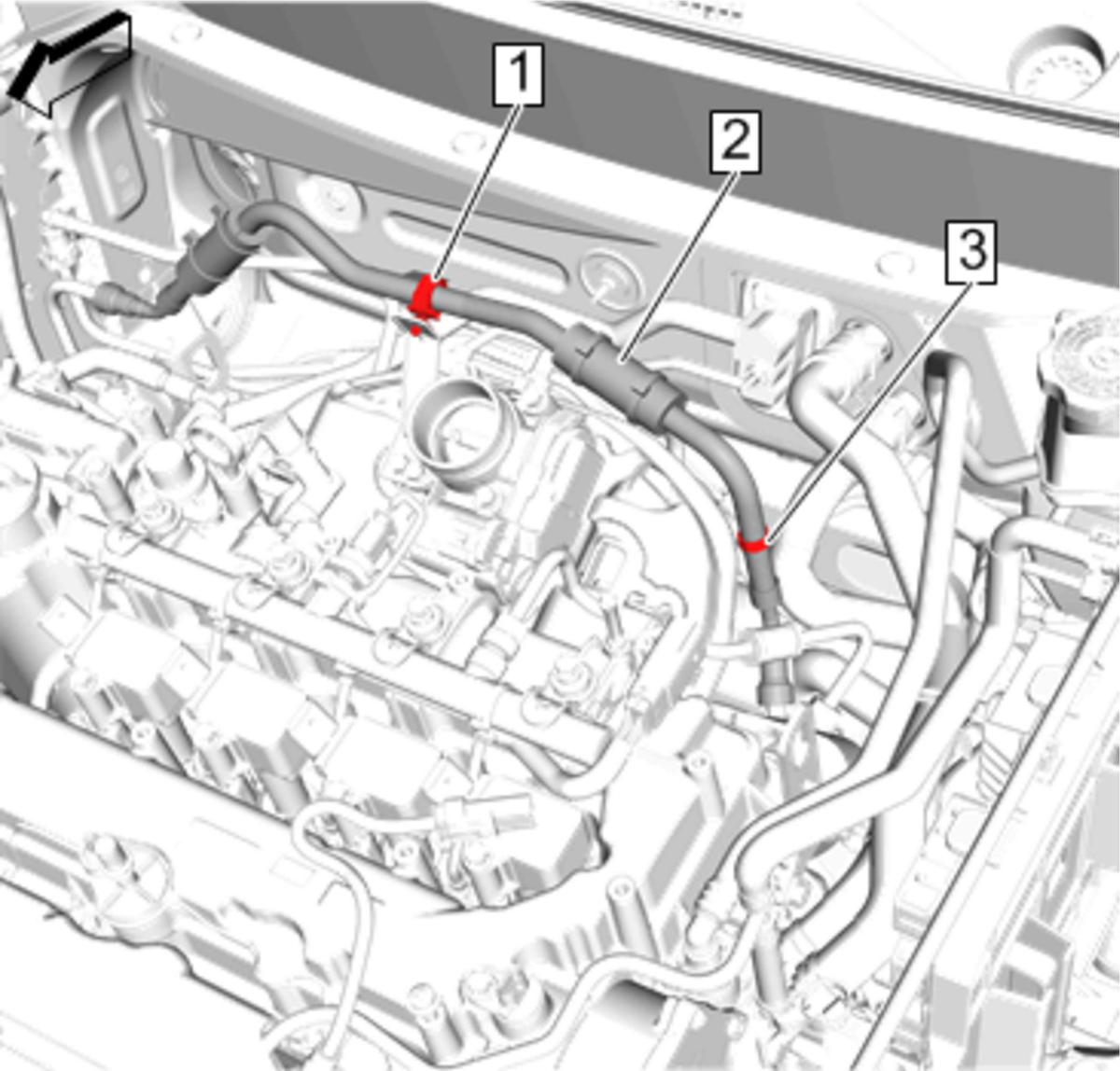

  1. GM5131694Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Fuel feed front pipe contains a check valve and needs to be installed properly to prevent engine performance issues.
    • The fuel feed front pipe end with Oetiker clamp (3) must be connected to the high pressure pump on the engine.

    Fuel Feed Front Pipe(2) - Connect[2x] - Metal Collar Quick Connect Fitting Service

  2. Fuel Feed Front Pipe Retainer (1) - Install
  3. GM4918721Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module and Engine Wiring Harness Bracket(2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Engine Control Module and Engine Wiring Harness Bracket Bolt(1) - Install and tighten[2x]9 N.m (80 lb in)
  5. Charge Air Cooler Outlet Air Tube - Install - Charge Air Cooler Outlet Air Tube Replacement
  6. Intake Manifold Cover - Install - Intake Manifold Cover Replacement
  7. Cycle ignition to pressurize fuel system and check for fuel leaks.
