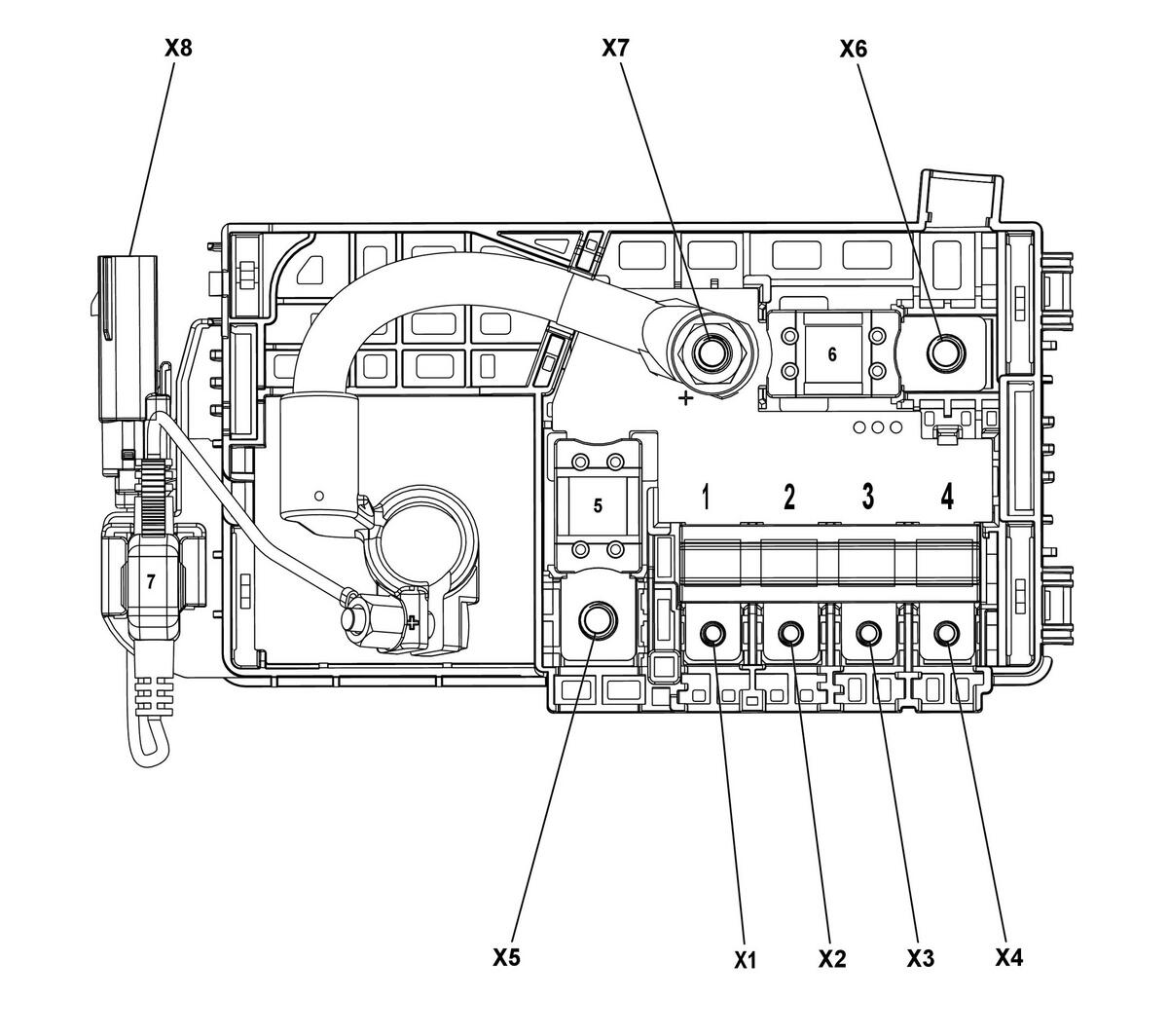

X50D Fuse Block - Battery Top View

GM4567857Courtesy of GENERAL MOTORS COMPANY
X50D Fuse Block - Battery Usage

No. Device Label Name Device Assigned Name Rating Description
1 - F1BA Fuse 100A
  • X51A Fuse Block - Instrument Panel
2 - F2BA Fuse 100A
  • X51A Fuse Block - Instrument Panel
3 - F3BA Fuse 40A
  • T19 Power Supply Transformer
4 - F4BA Fuse 100A
  • E40 Electrical Auxiliary Heater (C32)
5 - F5BA Fuse 500A
  • G13 Generator
  • M64 Starter Motor
6 - F6BA Fuse 250A
  • X50A Fuse Block - Underhood
7 - F7BA Fuse 5A
  • B110 Battery Sensor Module (KL9)
