B94RF Side Object Sensor - Right Front (UFQ)
WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

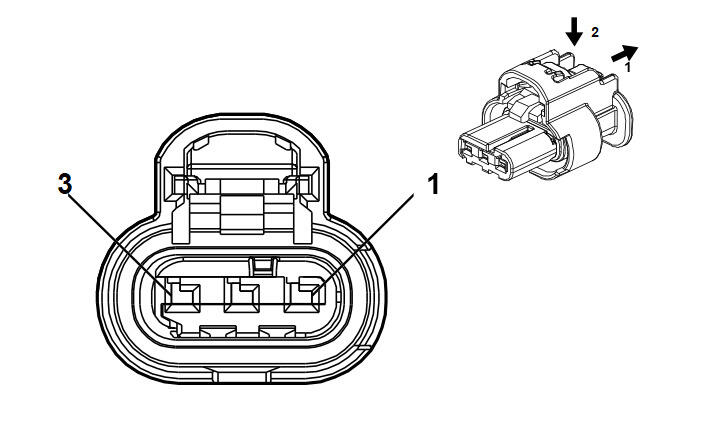

Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 1-2296695-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/VT |
5213 |
Front Parking Left/Right/Mid Sensor |
I |
UFQ |
| 2 |
0.5 |
GN |
3155 |
Right Front Advanced Parking Assist Side Object Sensor Signal |
I |
UFQ |
| 3 |
0.5 |
BK/BU |
5214 |
Front Parking Sensor Low Reference |
I |
UFQ |
