Radiator Lower Insulator Replacement

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

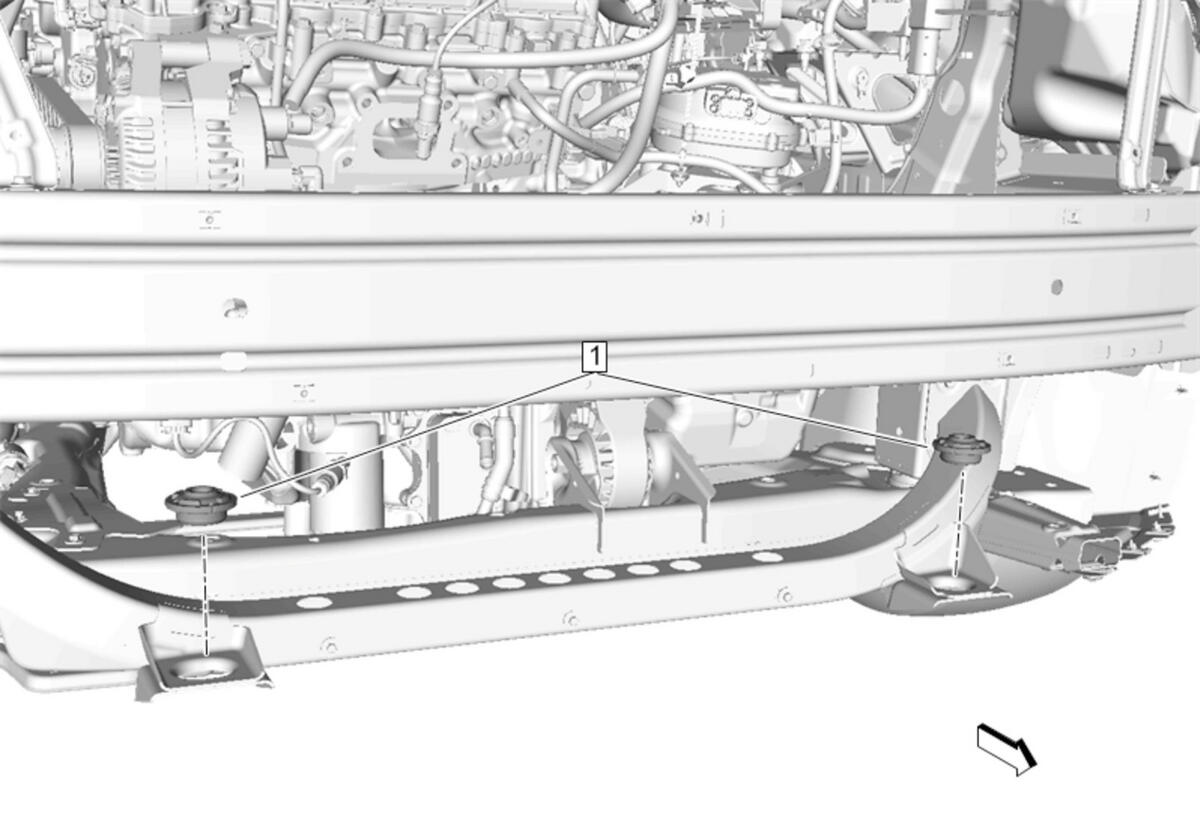

GM4293907Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Engine Coolant Fan Module Radiator Assembly Removal and Installation (LSY) , or Engine Coolant Fan Module Radiator Assembly Removal and Installation (LGX with V08) , or Engine Coolant Fan Module Radiator Assembly Removal and Installation (LGX without V08)
1 Radiator Lower Insulator [2x]
