Steering Column Upper Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

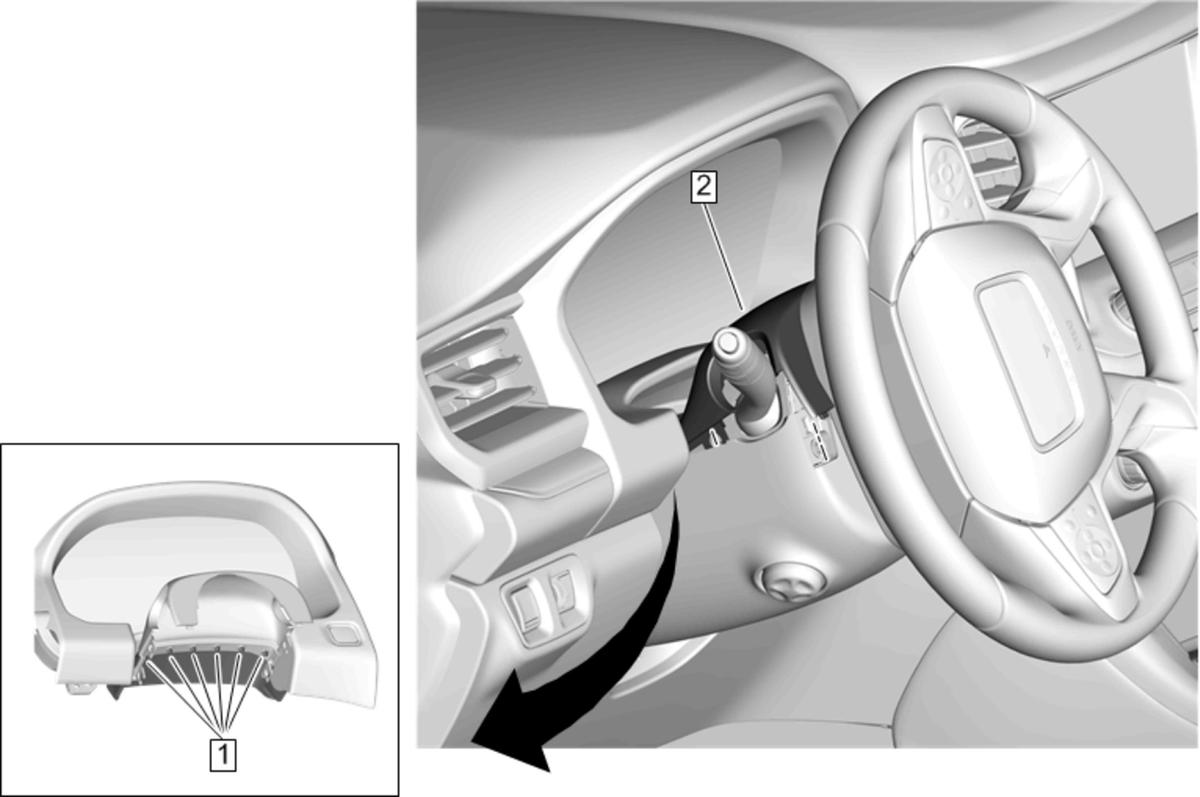

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Instrument Panel Steering Column Opening Closeout
2	Steering Column Upper Trim Cover Procedure Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover. Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.

Callout

Component Name

Instrument Panel Steering Column Opening Closeout

Steering Column Upper Trim Cover

Procedure

Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.
Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.
