Removal Procedure

  1. GM4741732Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Replacement (Terrain)

  2. GM4570315Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (2) - Remove - Front Floor Console Rear Trim Panel Replacement (Terrain)

  3. GM4743952Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel - Left Side (1) - Remove

  4. GM4743953Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel - Right Side (1) - Remove

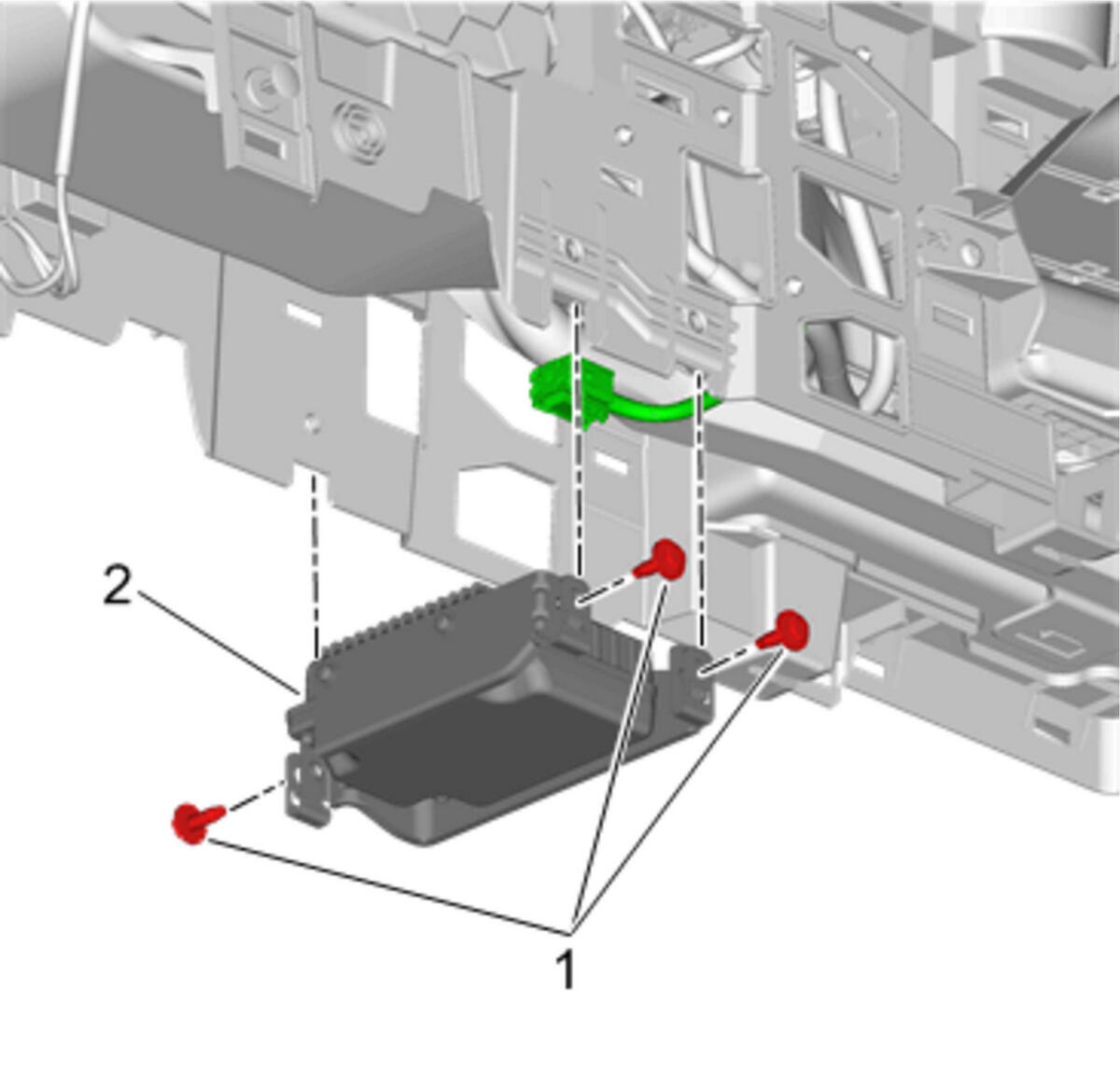

  5. GM4738599Courtesy of GENERAL MOTORS COMPANY

    Accessory AC and DC Power Control Module Bolt (1) - Remove [ 3x ]

  6. Disconnect the electrical connector.
  7. Accessory AC and DC Power Control Module (2) - Remove
