Wireless Charging System Module Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

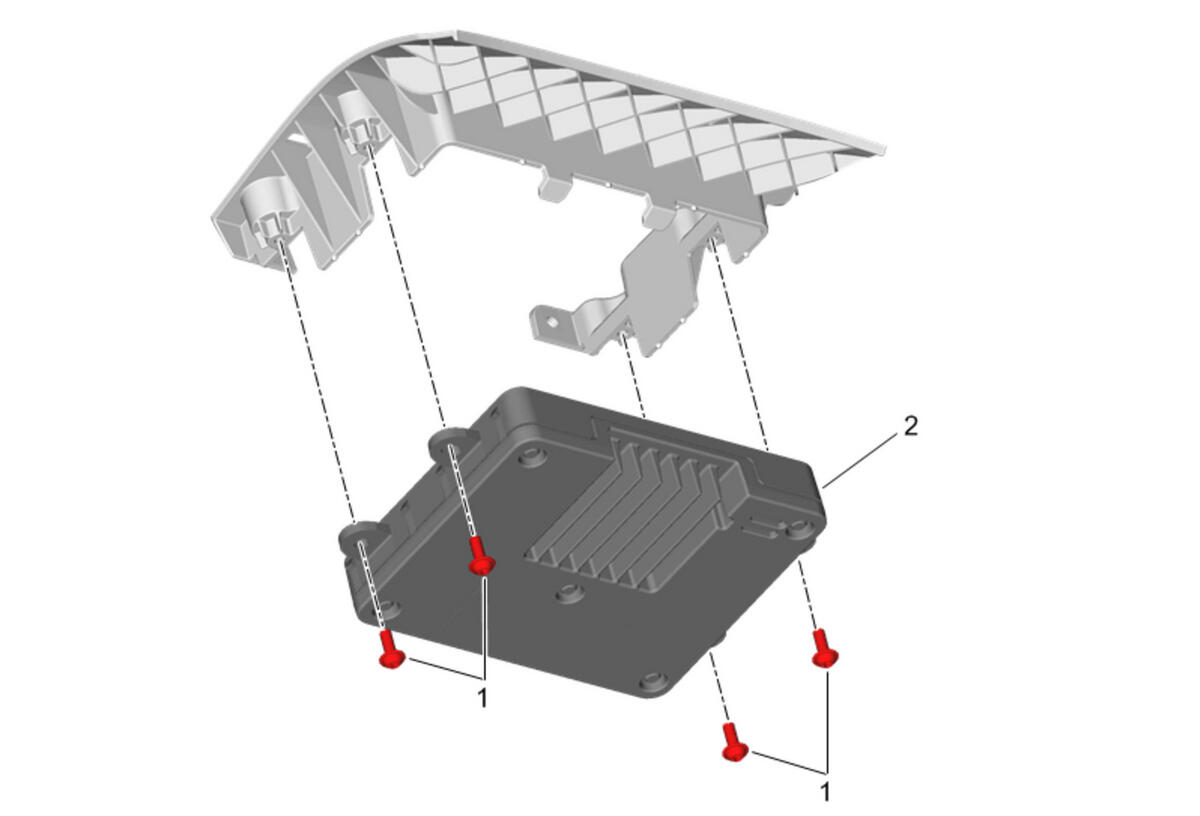

Callout	Component Name
Preliminary Procedure  Wireless Charging System Module Bracket Replacement (Equinox)
1	Wireless Charging System Module Bracket Bolt [ 4x ] CAUTION: Fastener Caution 1 N.m (9 lb/in)
2	Wireless Charging System Module
