Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install fuse block and tabs (1) to the battery.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

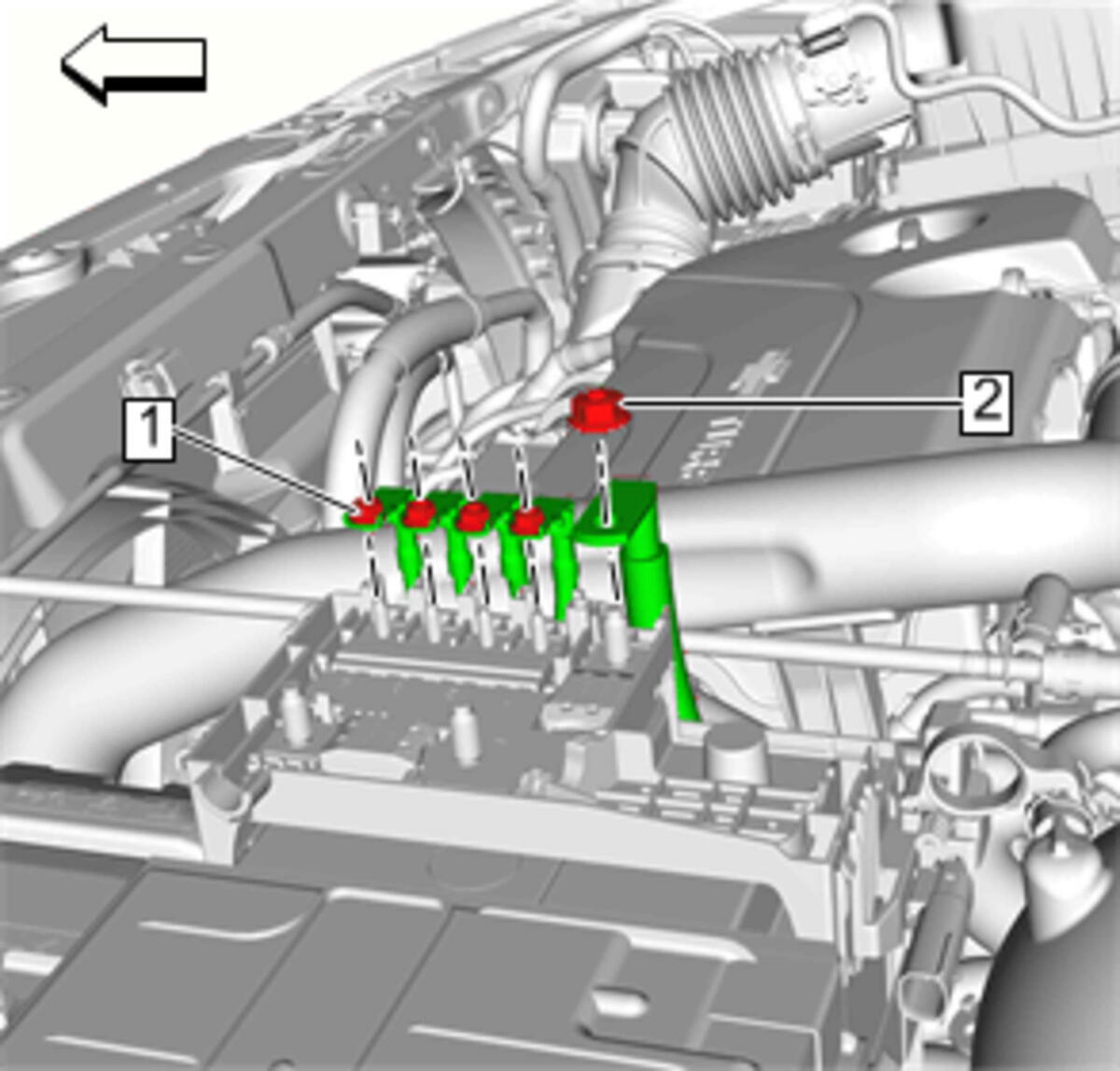

Fuse Block Wiring Harness Terminal - Install [ 5x ]
Body Wiring Harness Terminal Nut (1) - Install and tighten [ 4x ] 9 N.m (80 lb/in)
Starter and Generator Positive Cable Nut (2) - Install and tighten 12 N.m (106 lb/in)
Courtesy of GENERAL MOTORS COMPANY

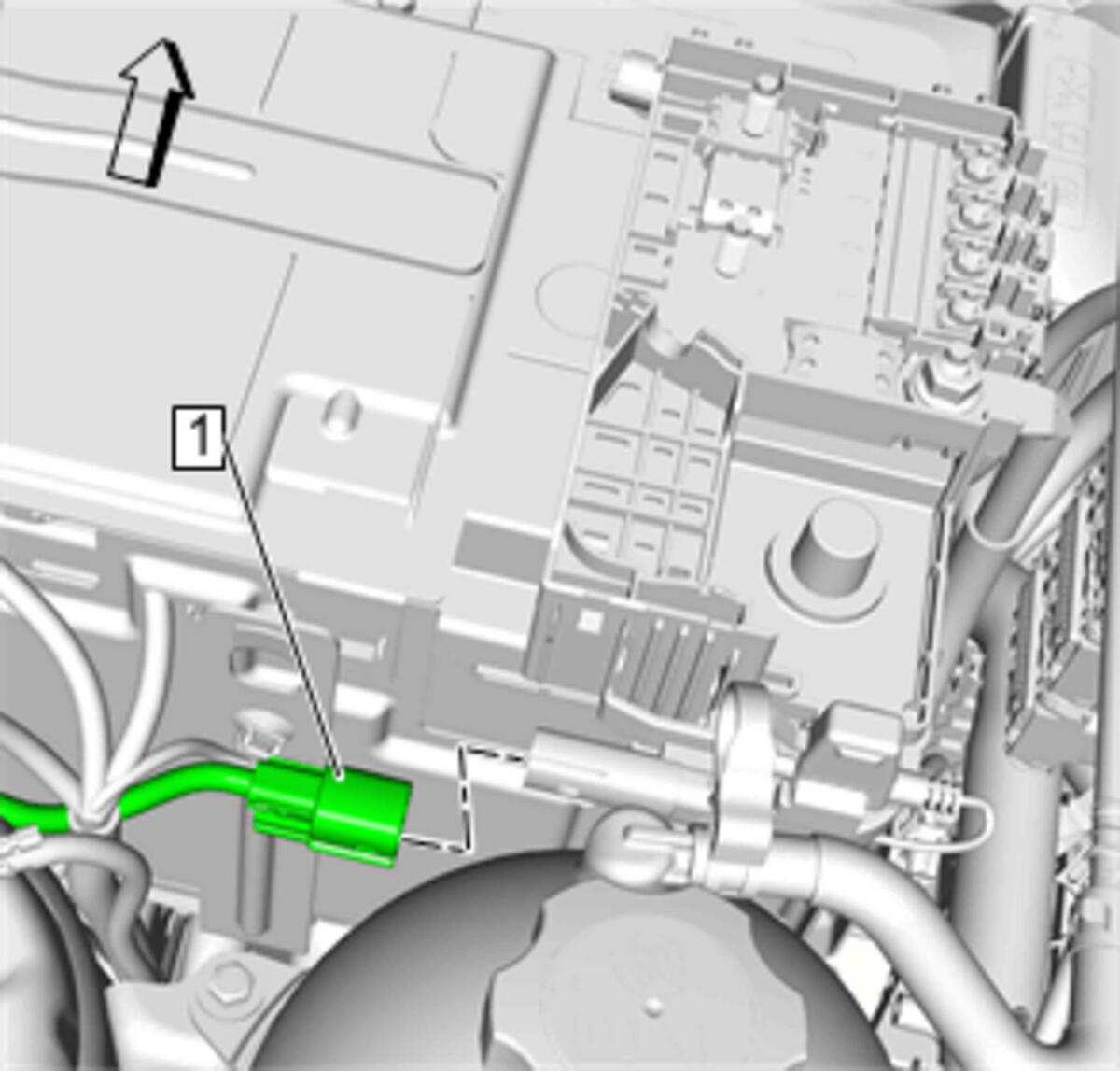

Connect the body wiring harness connector. (1)
Courtesy of GENERAL MOTORS COMPANY

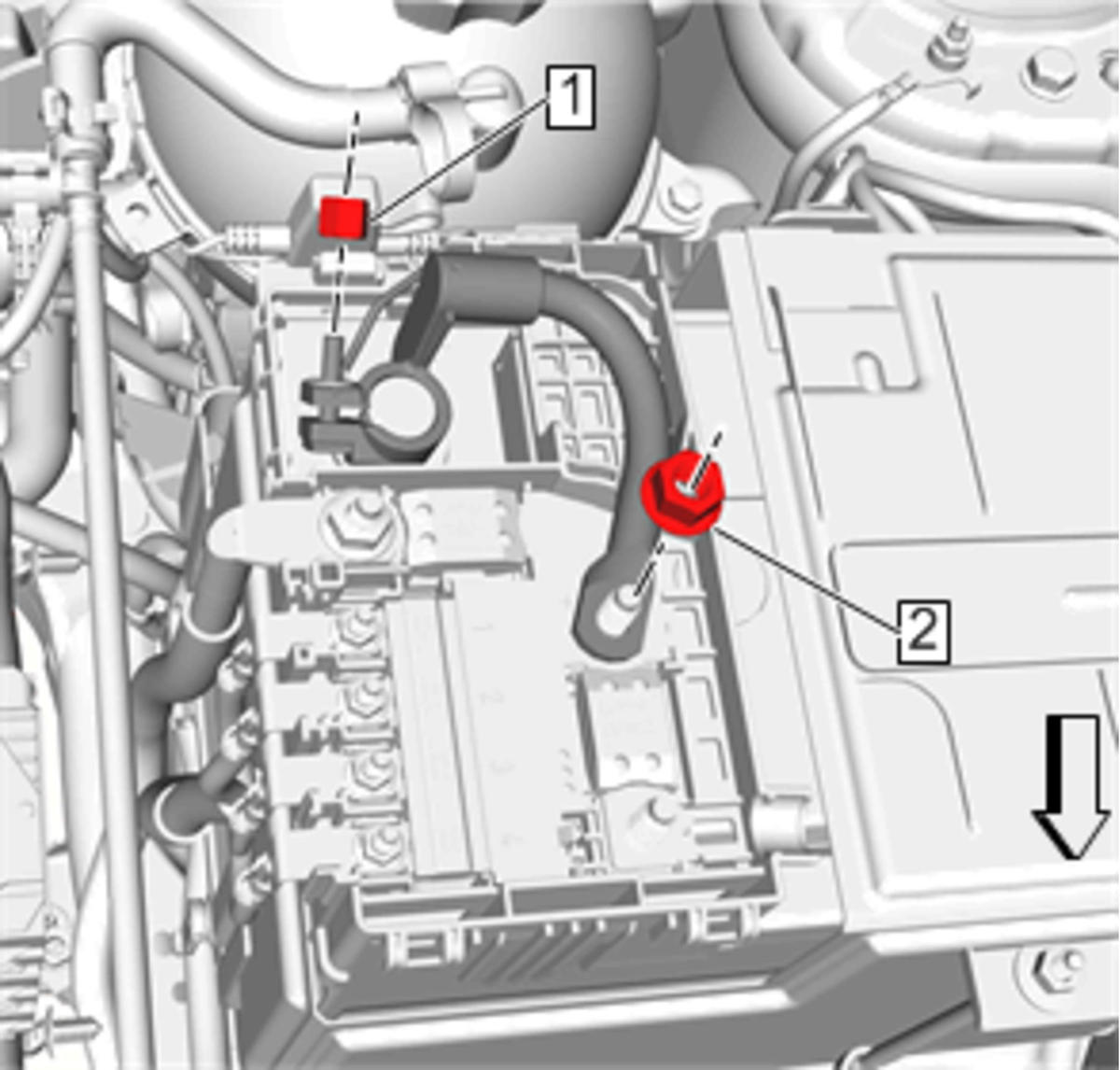

Battery Positive Cable - Install
Battery Positive Cable and Nut (2) - Install and tighten 9 N.m (80 lb/in)

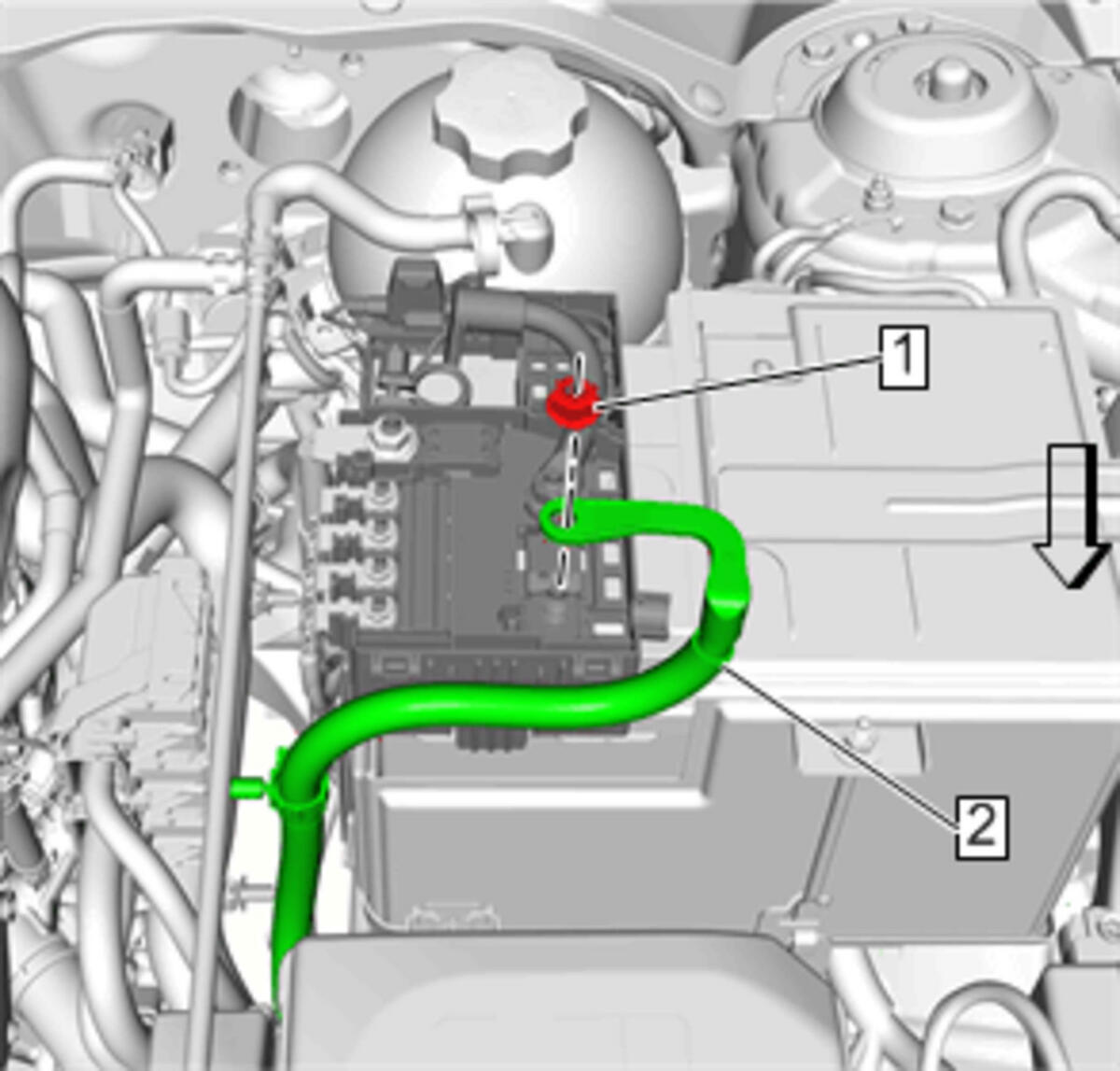

Install the small wire.
Positive Battery Cable Nut (1) Install and tighten 9 N.m (80 lb/in).
Courtesy of GENERAL MOTORS COMPANY

Starter Solenoid Cable (2) - Install
Starter Solenoid Cable Nut (1) - Install and tighten 12 N.m (106 lb/in).
Courtesy of GENERAL MOTORS COMPANY

Fuse Block Cover (1) - Install
Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection (KL9)
