Installation Procedure
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:

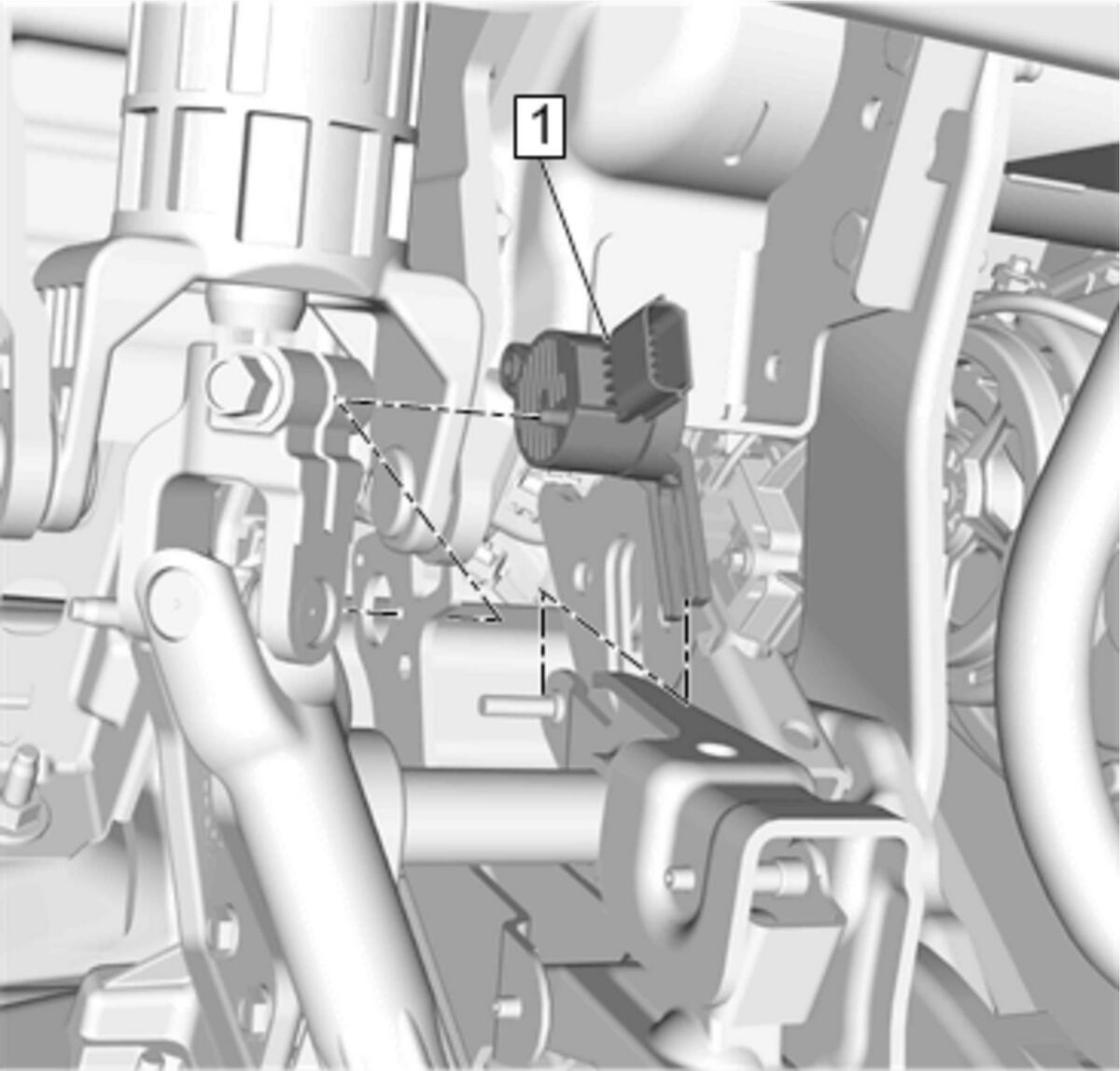

Position the fork of the brake pedal position sensor over the post on the brake pedal.
Brake Pedal Position Sensor(1) - Install
- CAUTION:
Refer to Fastener Caution .

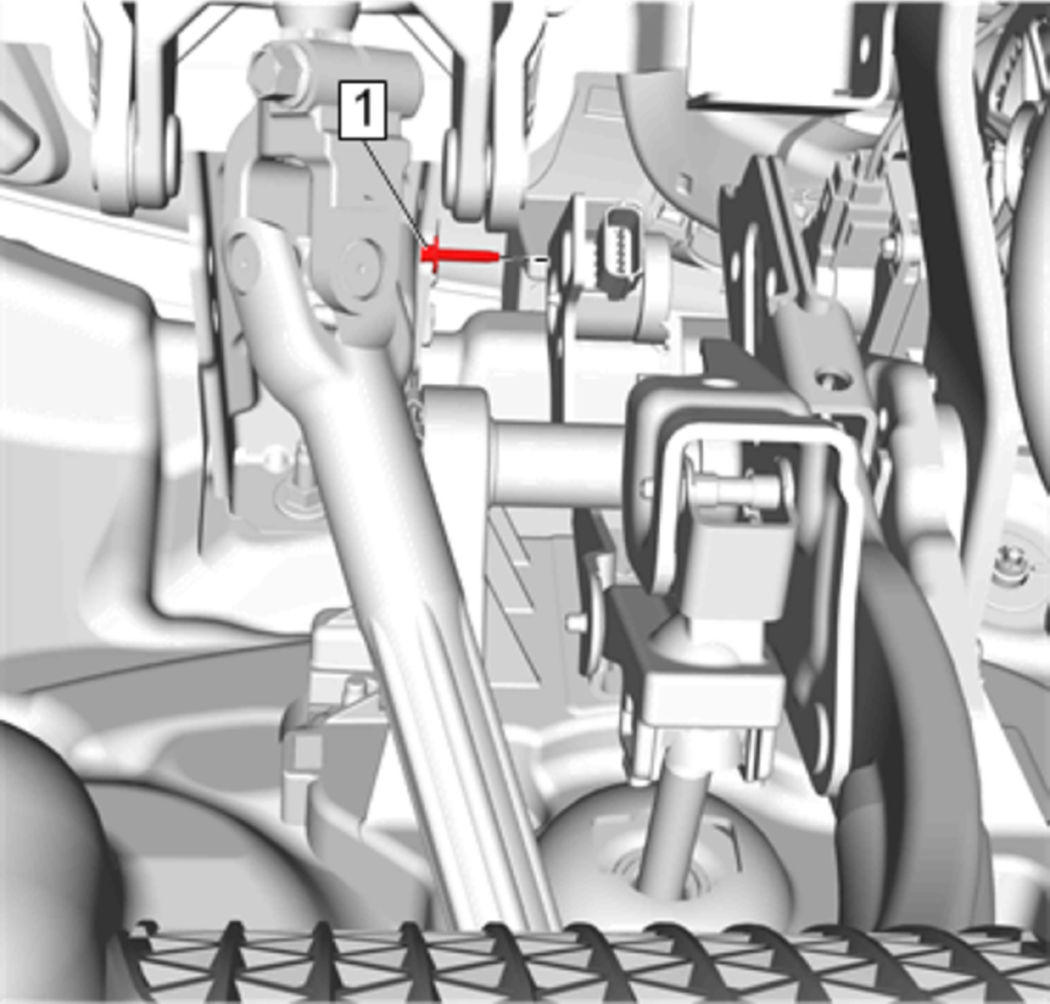

Brake Pedal Position Sensor Bolt(1) - Install and tighten3 N.m (27 lb in)

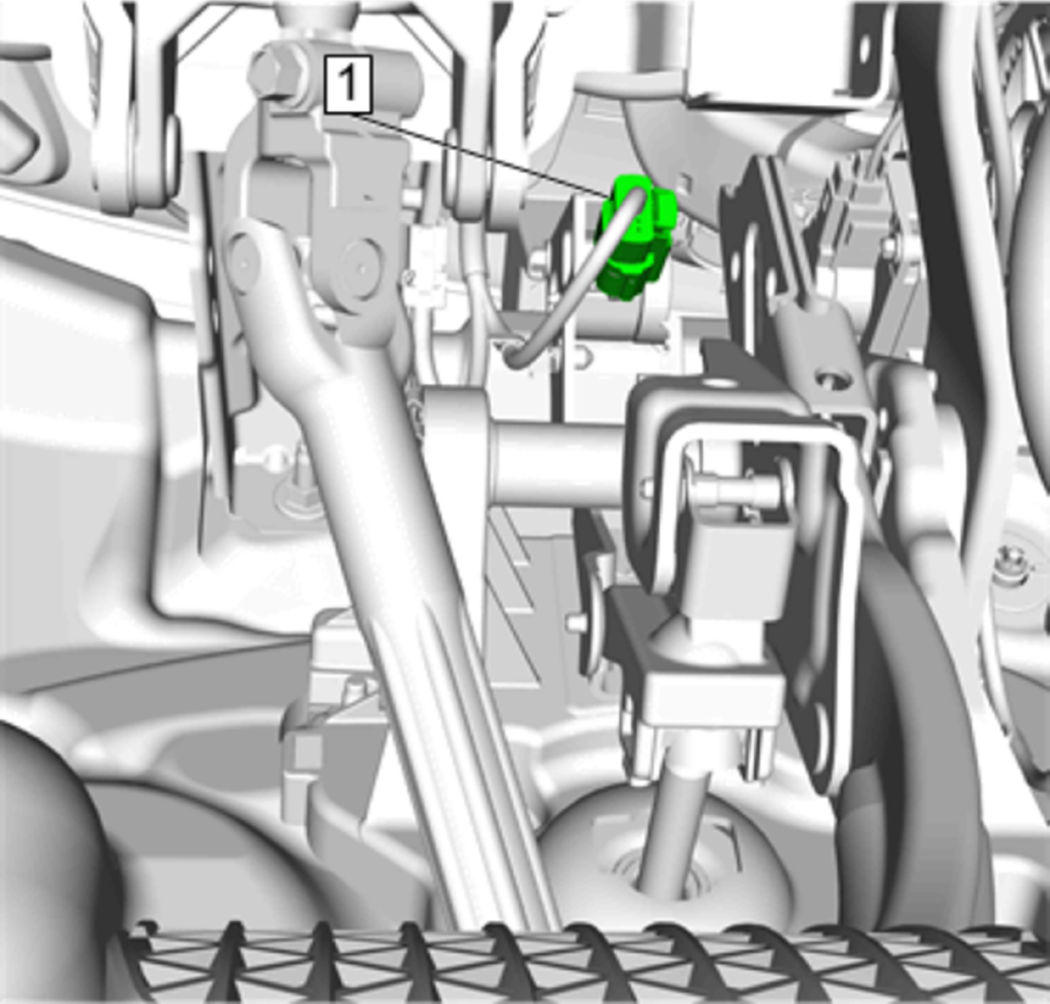

Electrical Connector(1) - Connect
- Floor Front Air Outlet Duct - Left Side - Install - Floor Front Air Outlet Duct Replacement - Left Side
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
