Forward Range Radar Bracket Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

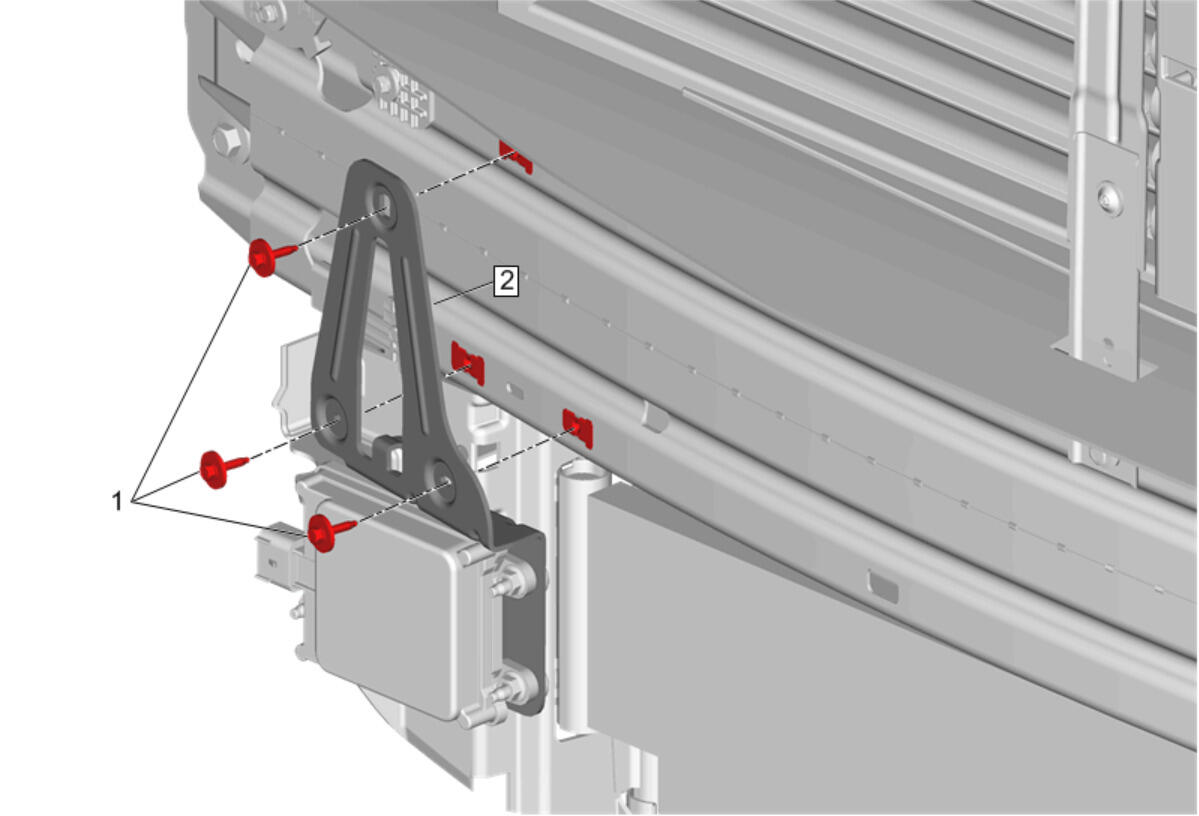

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Forward Range Radar Bracket Bolt [ 3x ] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb/in)
2	Forward Range Radar Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement

Forward Range Radar Bracket Bolt [ 3x ]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb/in)

Forward Range Radar Bracket

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
