USB Receptacle Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

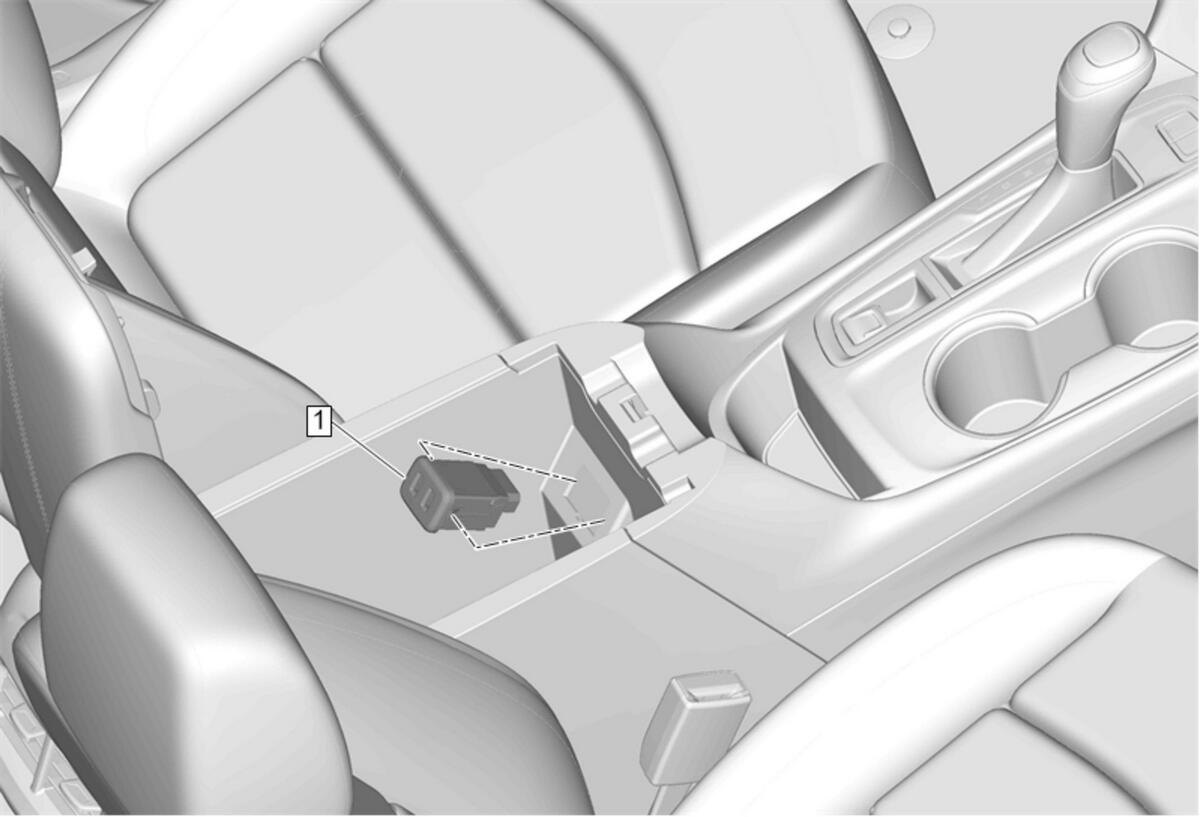

GM4587908Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 USB Receptacle

Procedure

  1. Depress the tabs on the receptacle to remove.
  2. Use a suitable tool.
  3. Disconnect the electrical connectors.
