Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the door lock status indicator (1).
Courtesy of GENERAL MOTORS COMPANY

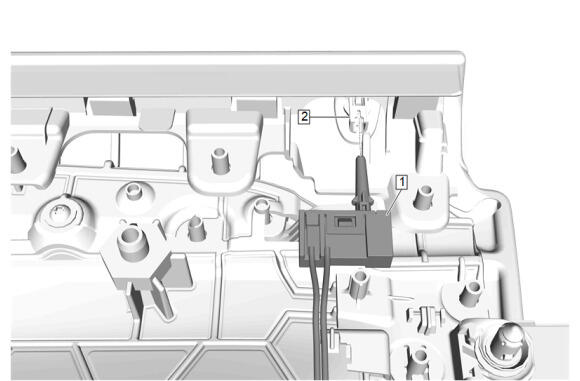

Install the door lock status indicator (1) into the front side door lock bezel (2).
Courtesy of GENERAL MOTORS COMPANY

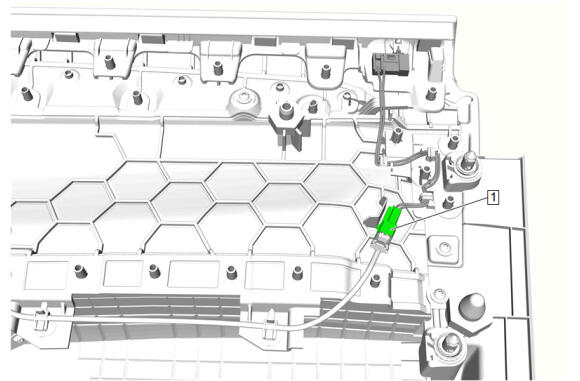

Install the wire harness and connect the electrical connector (1).
Install the front side door trim panel insulator.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Door trim installation is hook and swing. Install integral trim belt bracket to door seal.

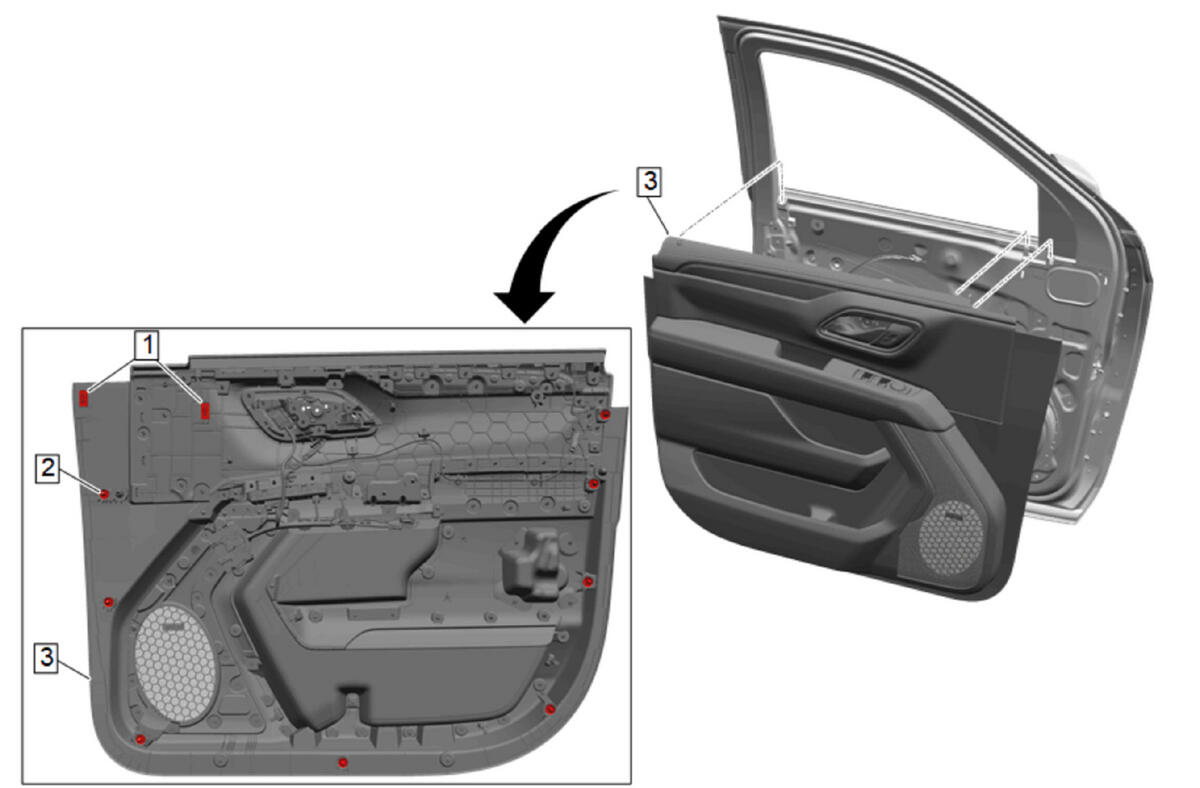

Front Side Door Trim (3) - Install
1. Connect the electrical connectors.
2. Hook the integral front side door trim belt bracket to the front side door window inner sealing strip and the front side door window garnish molding and swing in to install.
3. Connect the door lock retainer cable to the front side door trim (3) and the inside handle.
4. Engage most forward locator pin.
5. Engage remaining retainers starting from the bottom to the front and rear.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

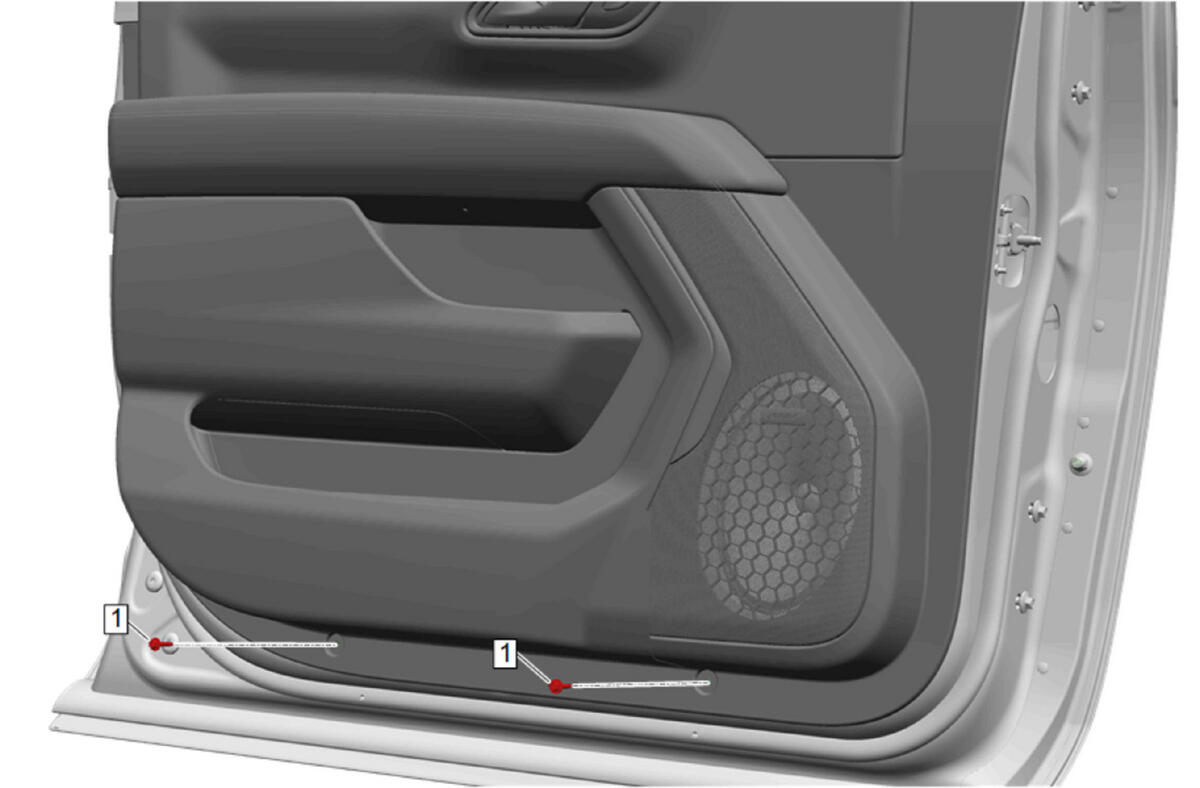

Front Side Door Trim Panel Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

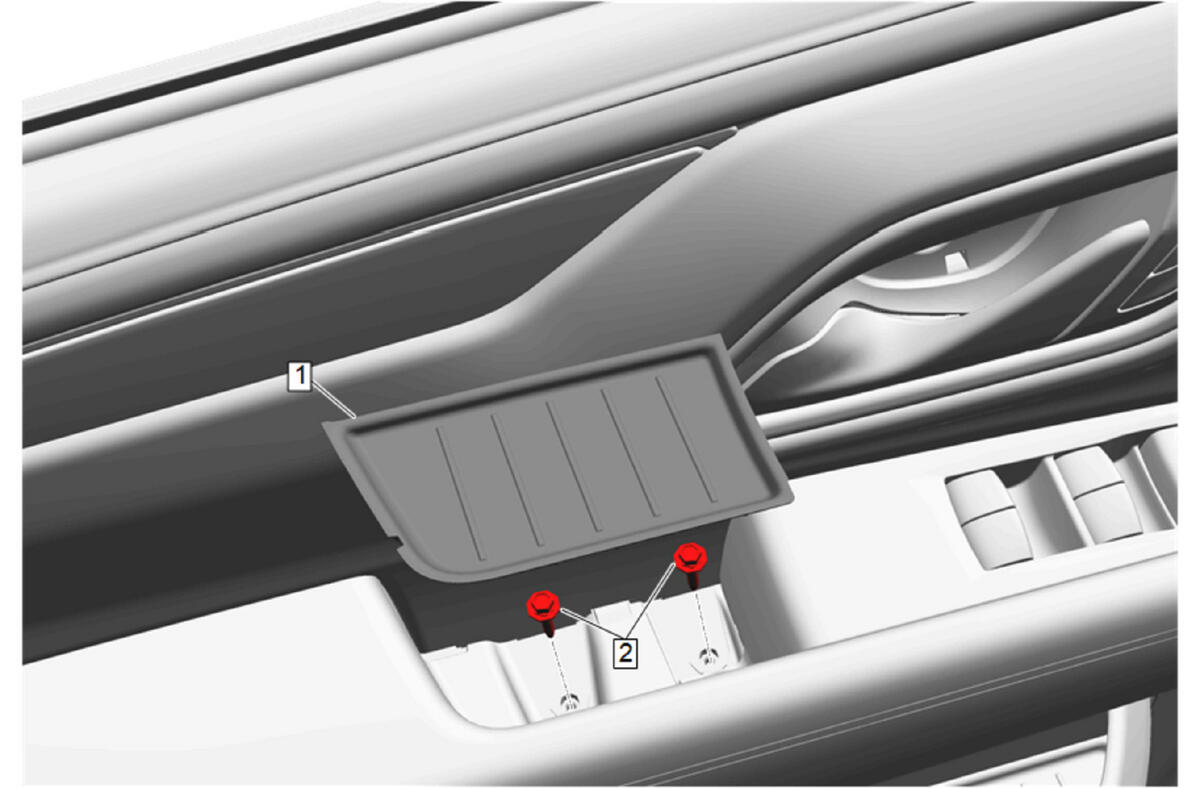

Front Side Door Armrest Pull Cup Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
Front Side Door Armrest Pull Cup Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

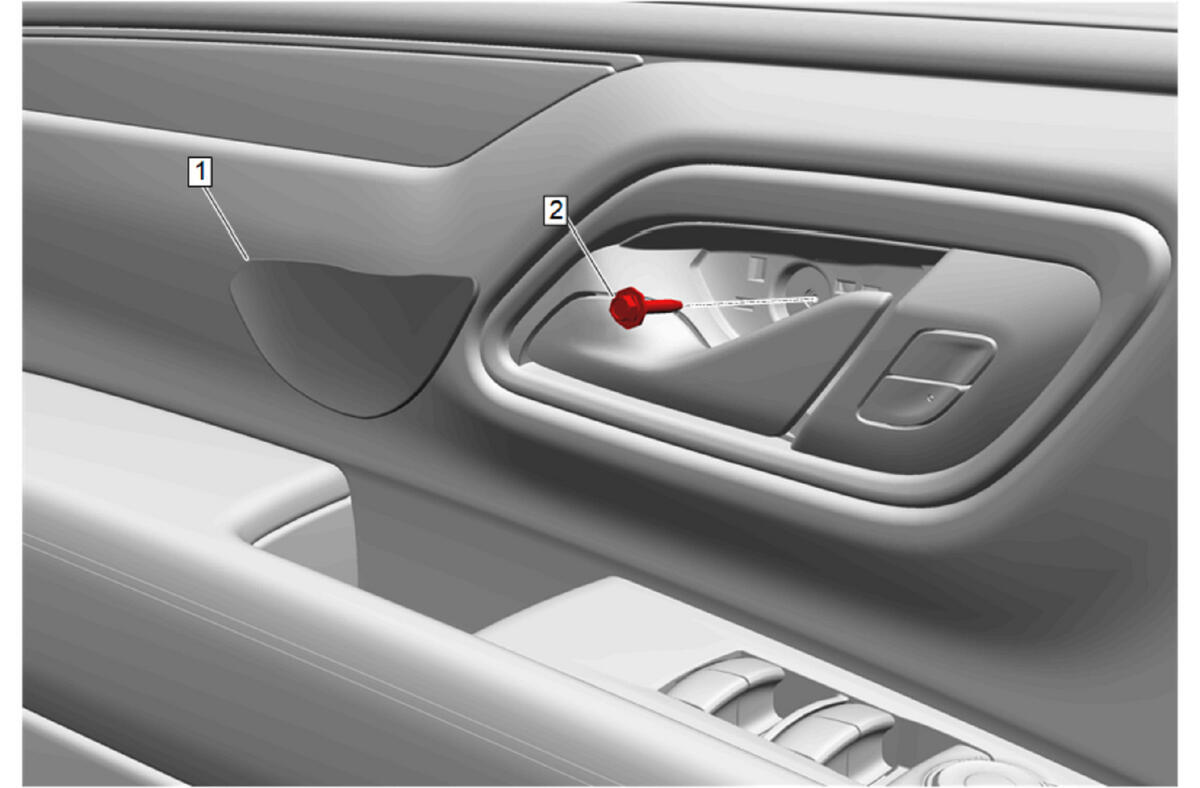

Front Side Door Inside Handle Bolt (2) - Install and tighten - Fastener Specifications
Front Side Door Inside Handle Bolt Finish Cap (1) - Install
