Installation Procedure

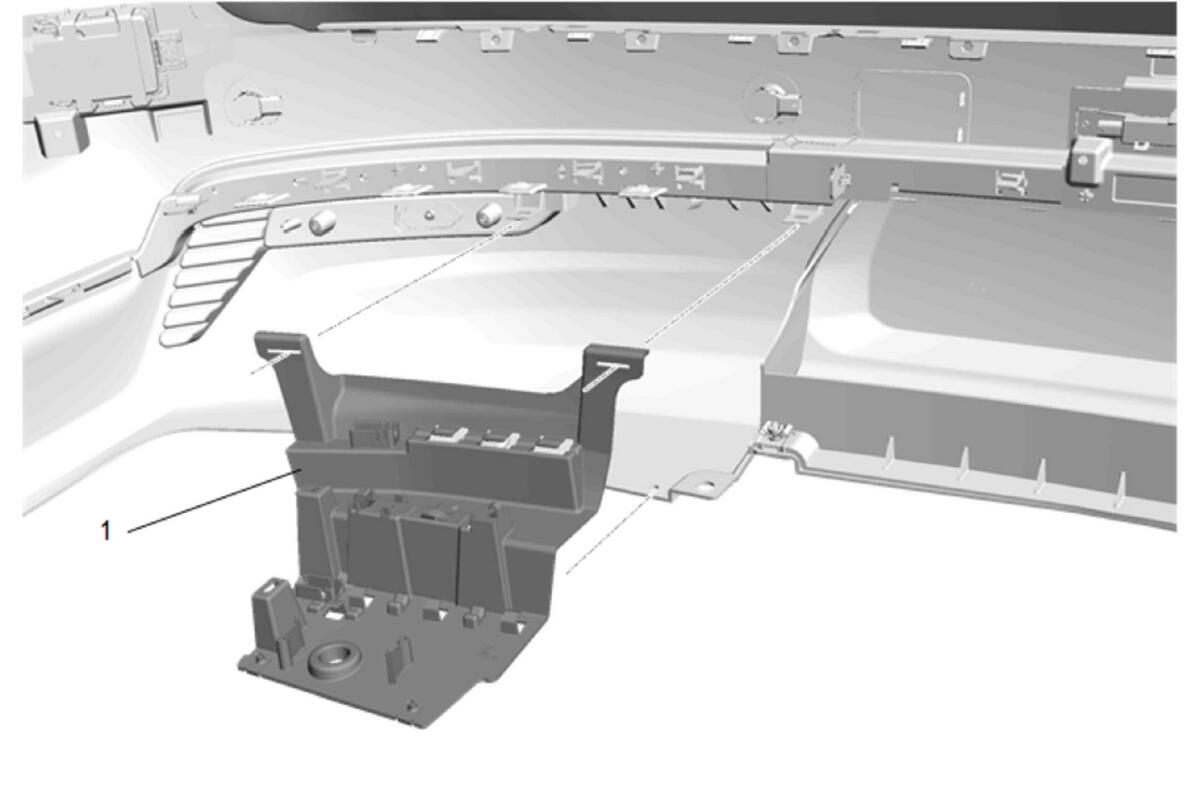

  1. GM5568973Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module Bracket (1) - Install

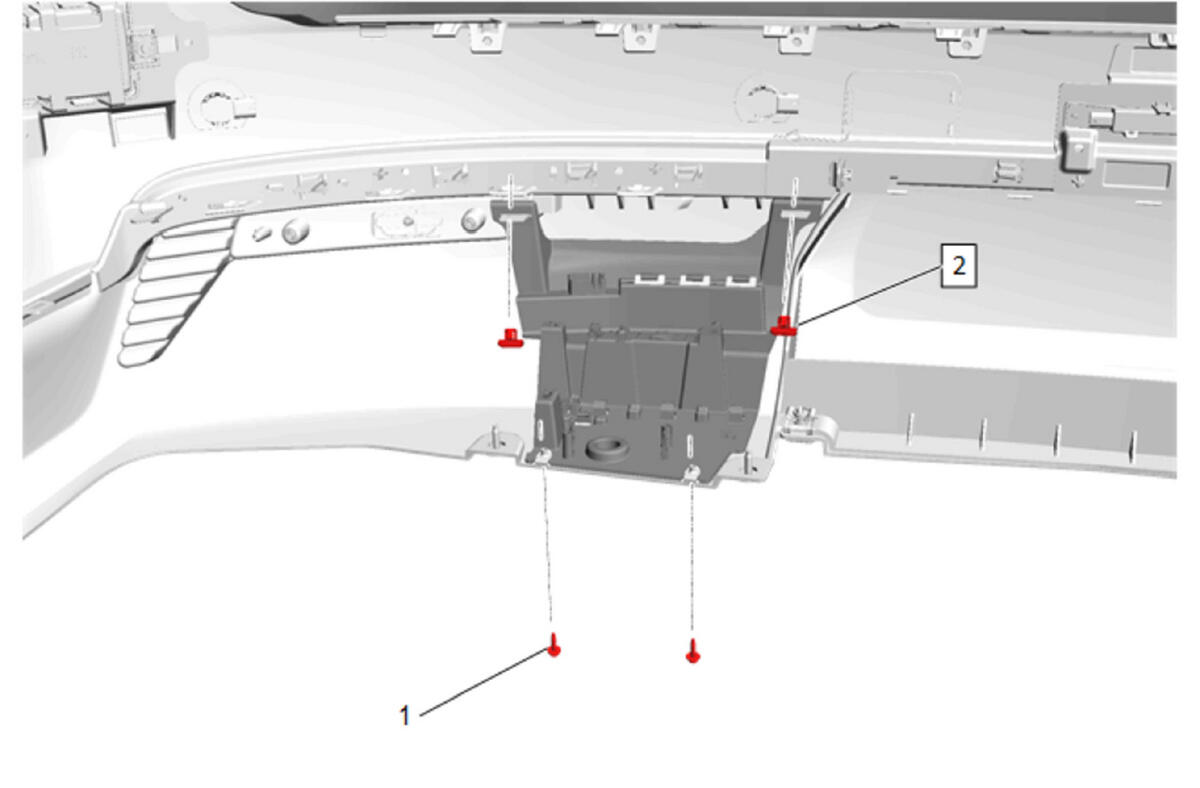

  2. GM5568971Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Closure Hands Free Module Bracket Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  3. Rear Closure Hands Free Module Retainer (2) - Install [ 2x ]

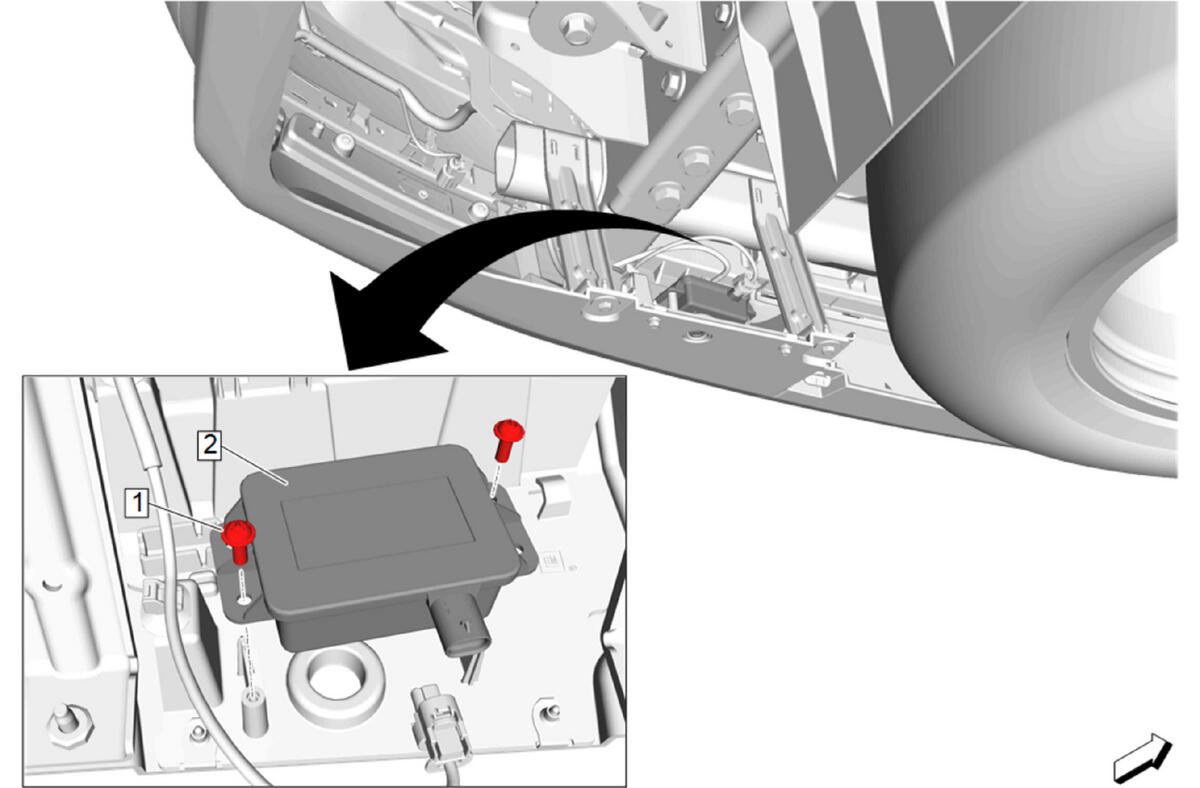

  4. GM5541456Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Lamp (2) - Install

  5. Rear Closure Hands Free Module Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  6. GM5568823Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Module (2) - Install

  7. Rear Closure Hands Free Module Bolt (1) - Install and tighten - Fastener Specifications

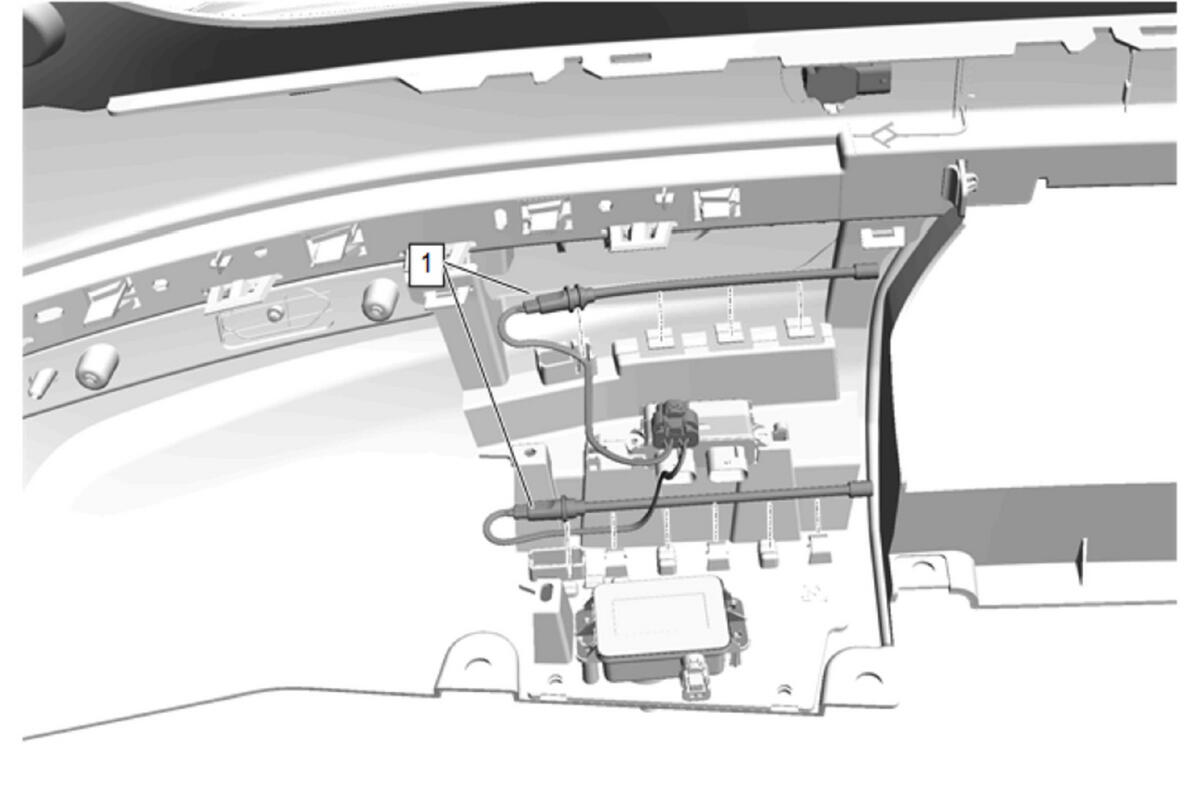

  8. GM5568874Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor (1) - Install

  9. Connect all electrical connectors.
  10. Lower the vehicle.
