Installation Procedure

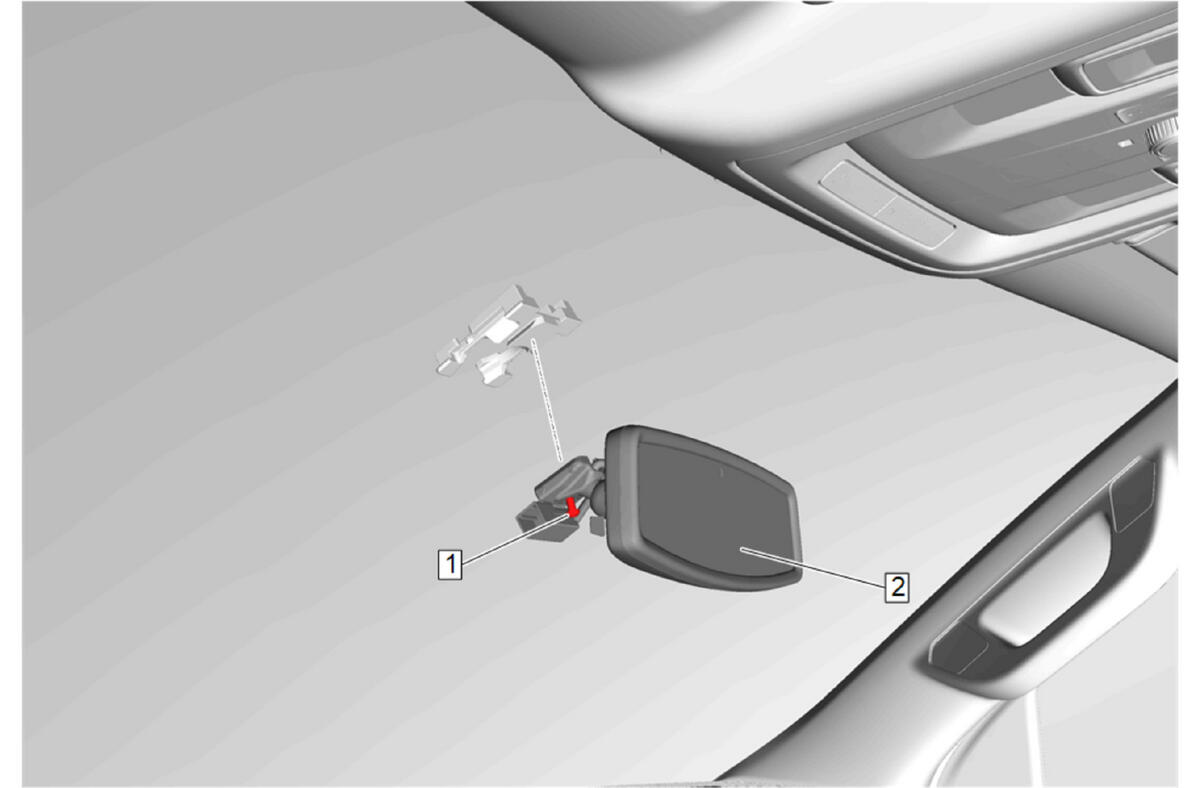

  1. GM5579680Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
  3. Secure the retaining tabs.
  4. Connect all electrical connectors.

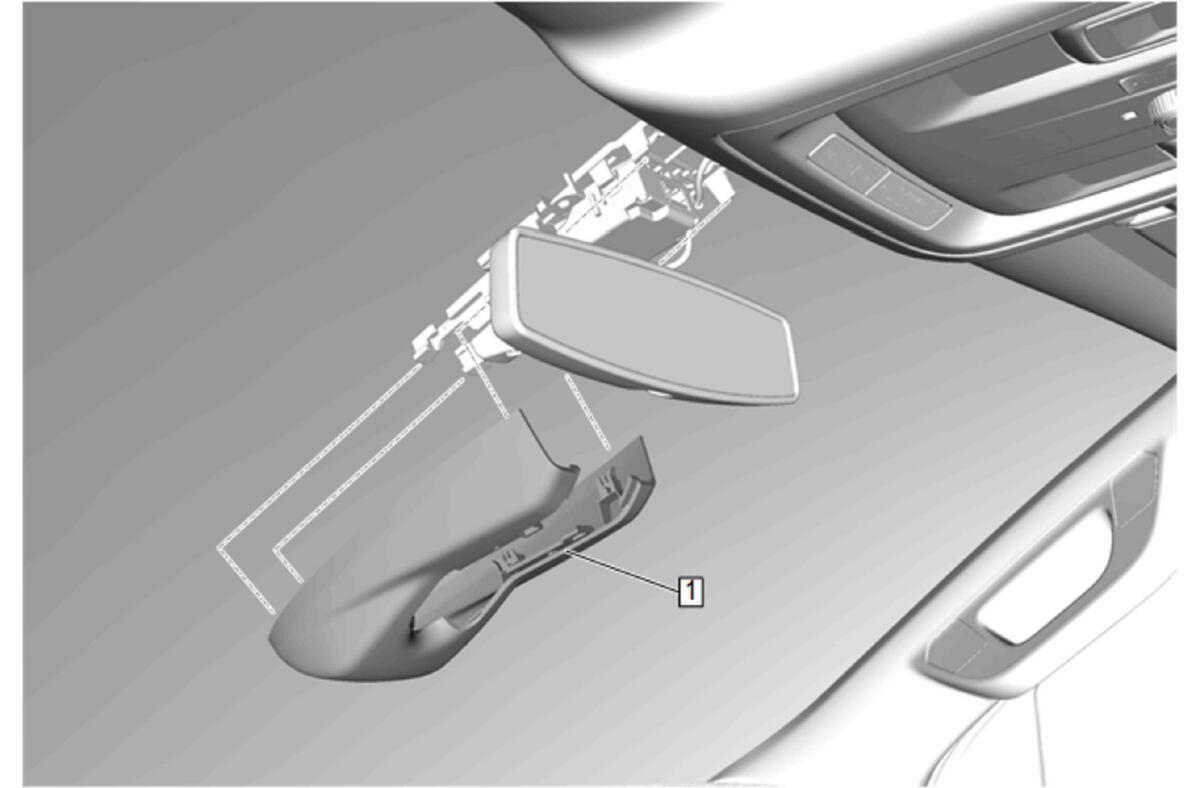

  5. GM5579676Courtesy of GENERAL MOTORS COMPANY

    Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.

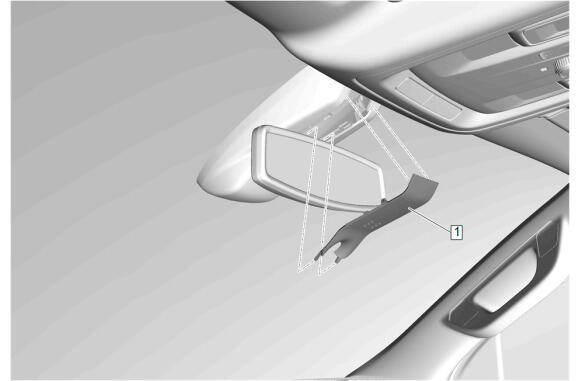

  6. GM5579675Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  7. Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
