Installation Procedure

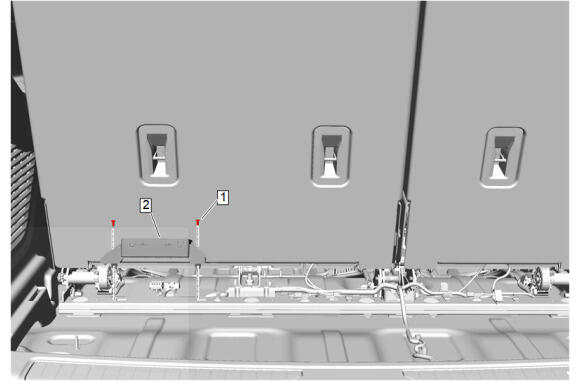

Courtesy of GENERAL MOTORS COMPANY

Folding 3rd Row Seat Module (2) - Install
Connect the electrical connectors.

CAUTION:

Refer to Fastener Caution .

Folding 3rd Row Seat Module Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

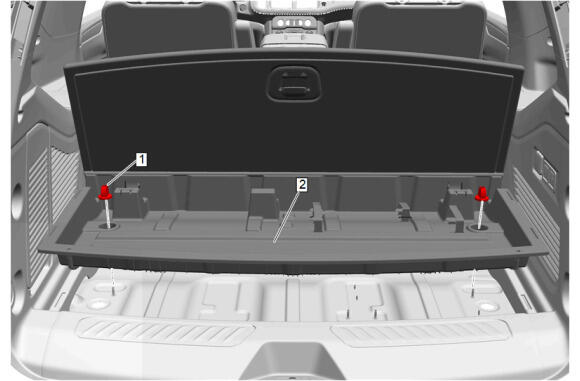

Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Trim Compartment (2) - Install

NOTE:

Quantity of retainers may vary based on option content.

Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [ 2x ] - Fastener Specifications
