Module Power, Ground, Serial Data, Indicators, and Subsystem References
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

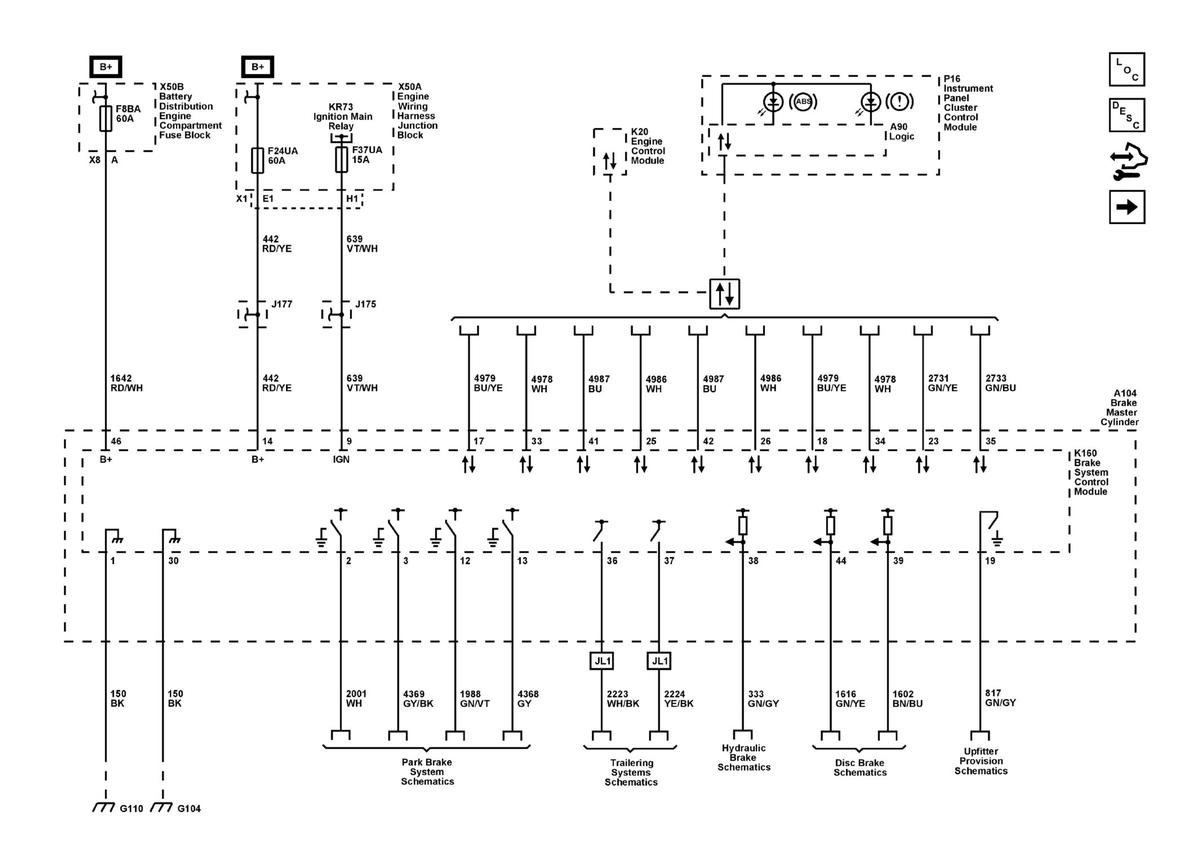

Module Power, Ground, Serial Data, Indicators, and Subsystem References
Courtesy of GENERAL MOTORS COMPANY
