Installation Procedure

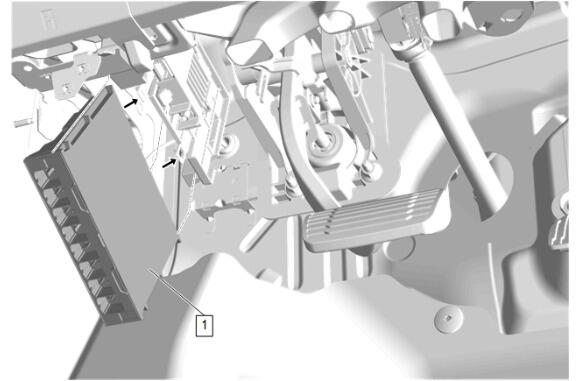

  1. GM5778399Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Body Control Module (1) - Install
  3. Secure the retaining tabs.
  4. Perform the necessary programming and setup procedure: Control Module References
