Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Inside Handle Cable (1) - Install

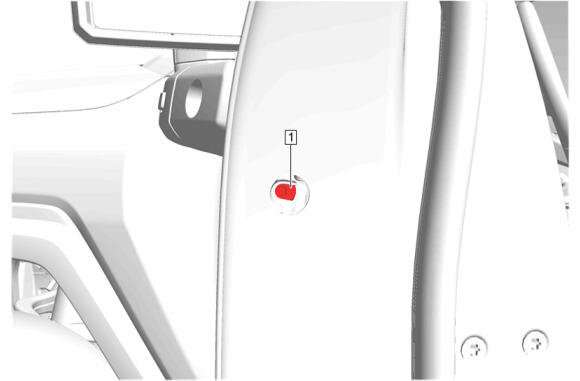

Using the appropriate tool, close the front side door latch access cover.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

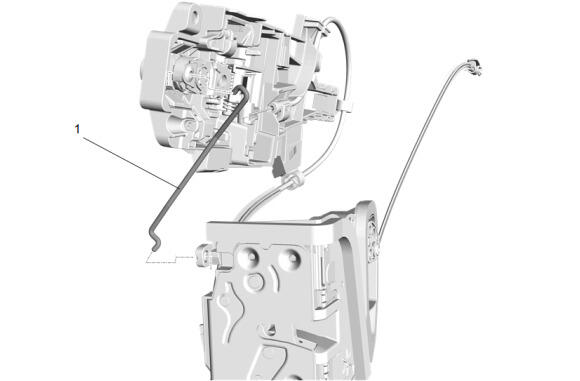

Front Side Door Lock Cylinder Rod (1) - Install
Courtesy of GENERAL MOTORS COMPANY

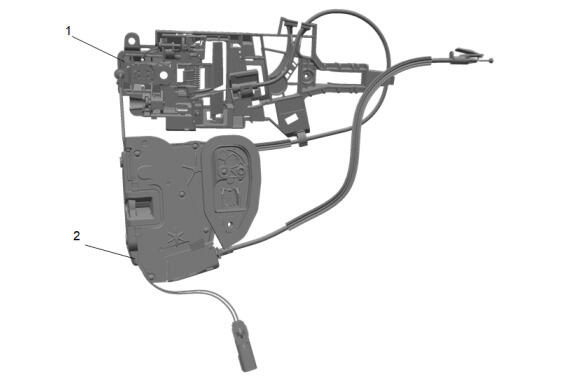

Install the front side door outside handle bracket (1) and the front side door latch (2) as an assembly.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

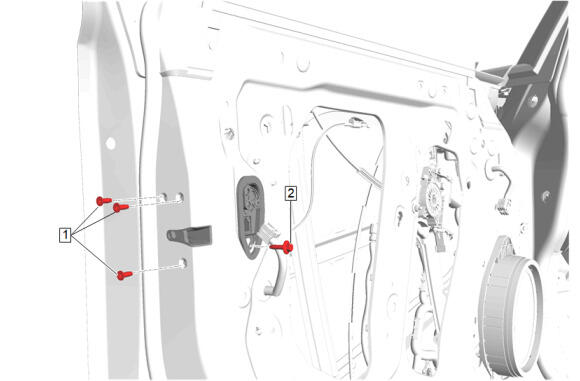

Front Side Door Latch Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Side Door Latch Bolt (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

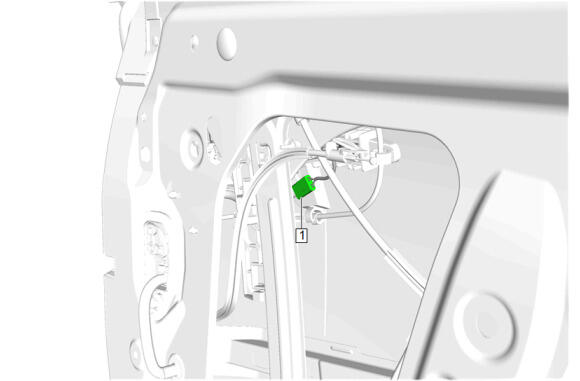

Connect the front side door latch electrical connector (1) to the front side door wiring harness.
Courtesy of GENERAL MOTORS COMPANY

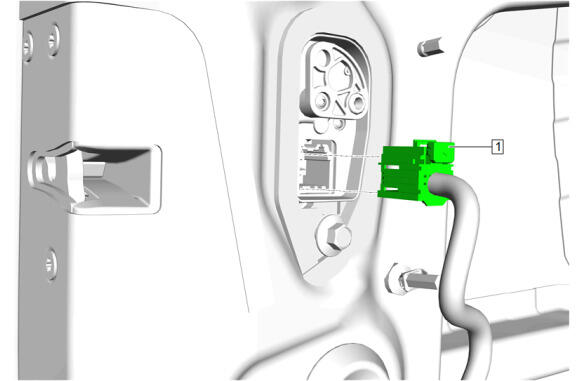

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Front Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Bezel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the front part of the front side door outside handle (1) into the front side door outside handle bracket.
Courtesy of GENERAL MOTORS COMPANY

Install the rear part of the front side door outside handle (1) into the front side door outside handle bracket and slide the front side door outside handle forward.
Courtesy of GENERAL MOTORS COMPANY

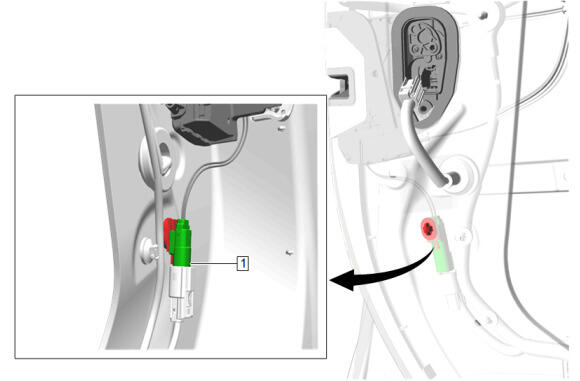

Connect the harness retainers to the front side door outside handle bracket.
Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

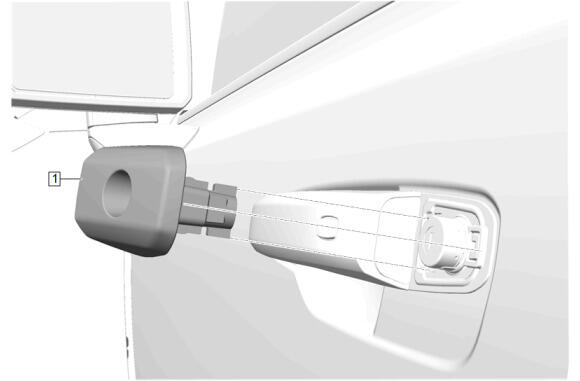

Front Side Door Lock Cylinder Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Hold the front side door outside handle outwards in the open position.
Front Side Door Outside Handle Bracket Rear Bolt (1) - Tighten - Fastener Specifications
Test door handle for correct operation. If handle does not operate correctly, adjust front side door outside handle counterbalance.
Courtesy of GENERAL MOTORS COMPANY

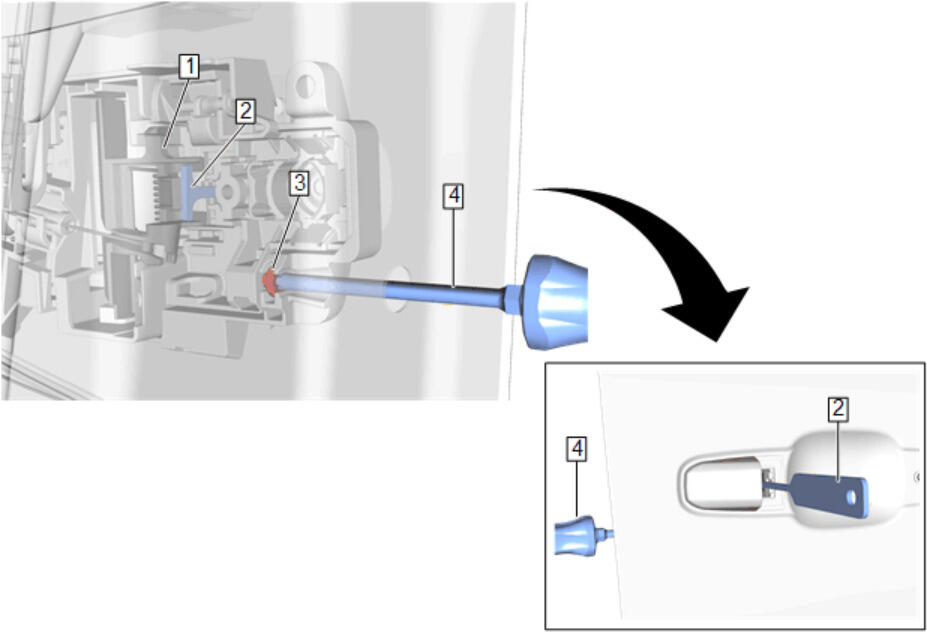

Insert the EL-42059 (2) and grasp the counterbalance lever (1).
Pull the EL-42059 (2) until the counterbalance lever (1) is fully rotated and hold in this position.
Using a T25 Torx ™ driver (4), turn the front side door outside handle bracket rear bolt (3) counterclockwise until it clicks.
Courtesy of GENERAL MOTORS COMPANY

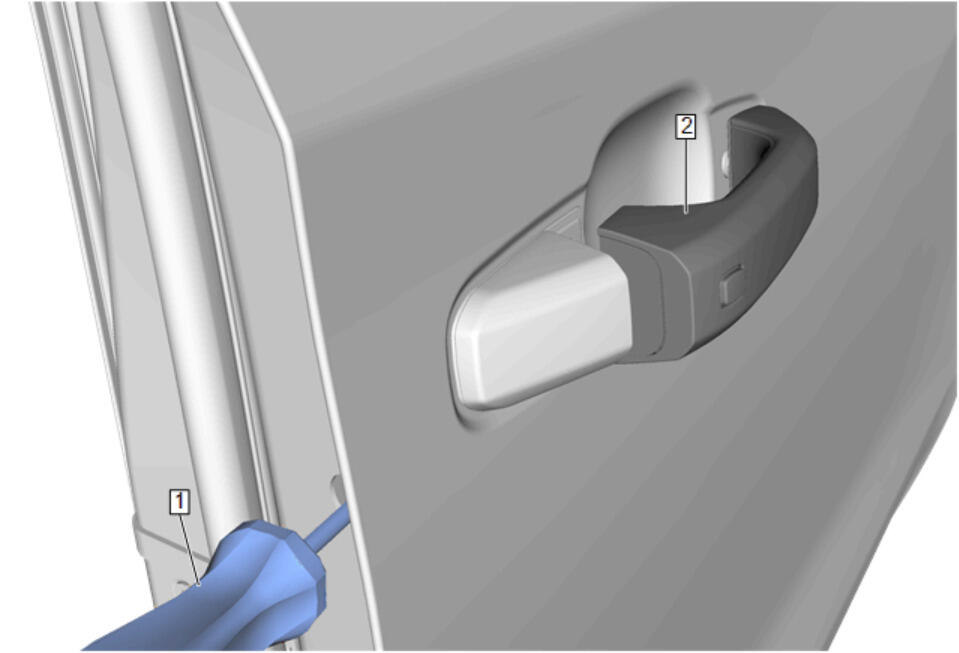

Front Side Door Outside Handle (2) - Install
Lightly press the front side door outside handle (2) to ensure it is in position.
Using a T25 Torx ™ driver (1), turn the front side door outside handle bracket rear bolt clockwise until the handle (2) is fully seated.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Rear Bolt (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

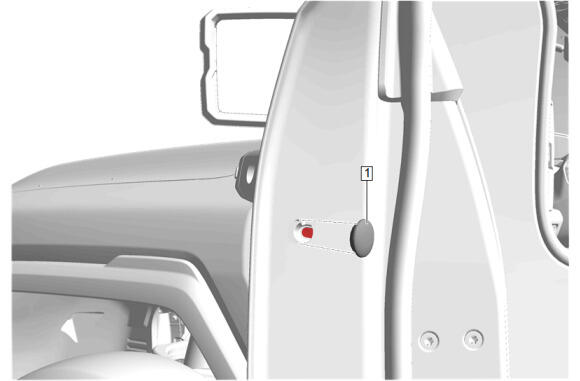

Front Side Door Outside Handle Access Hole Plug (1) - Install
Courtesy of GENERAL MOTORS COMPANY

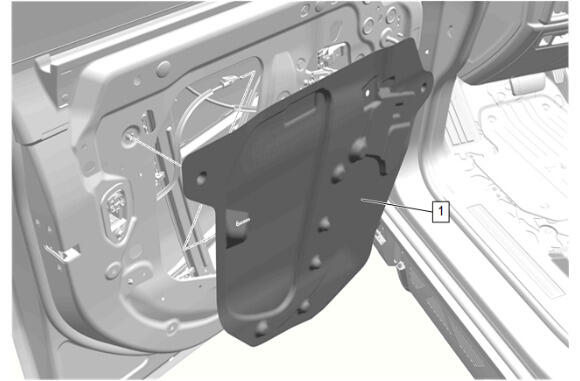

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).
Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

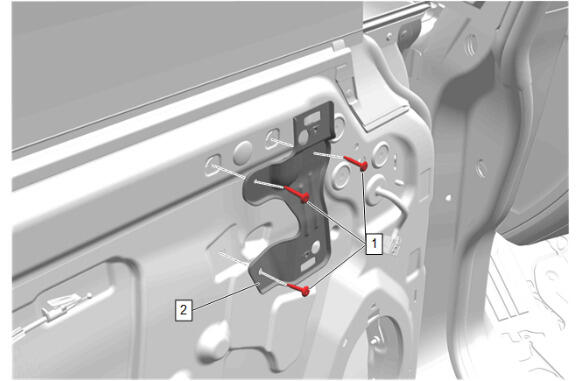

Front Side Door Armrest Bracket (2) - Install
Front Side Door Armrest Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (3) - Install - Front Side Door Trim Removal and Installation (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Removal and Installation (With Front Side Door Trim Bolt Cap)
Enable the SIR System. SIR Disabling and Enabling
