Pickup Box Endgate Striker Replacement: Notes

Removal Procedure

1. Courtesy of GENERAL MOTORS COMPANY

   With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation

2. Courtesy of GENERAL MOTORS COMPANY

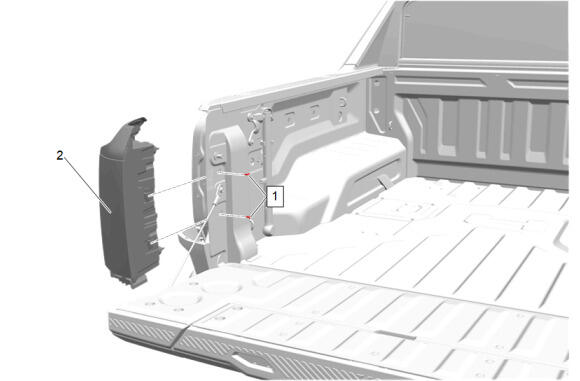

   Rear Body Structure Stop Lamp Bolt (1) - Remove [2x]

3. Rear Body Structure Stop Lamp (2) - Remove
4. Disconnect the electrical connector.
5. Unclip the wiring harness.

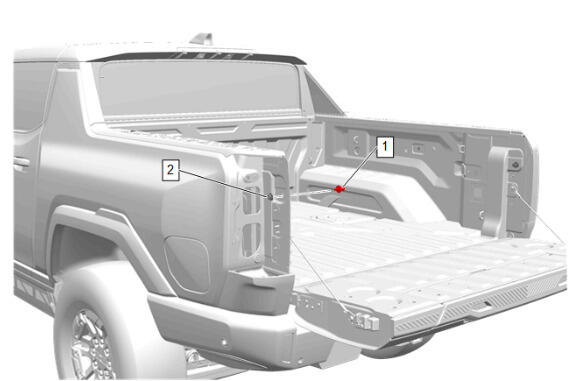

6. Courtesy of GENERAL MOTORS COMPANY

   Pickup Box Endgate Striker (1) - Remove

7. Pickup Box Endgate Striker Nut (2) - Remove
