Drive Motor Battery System Description: Notes

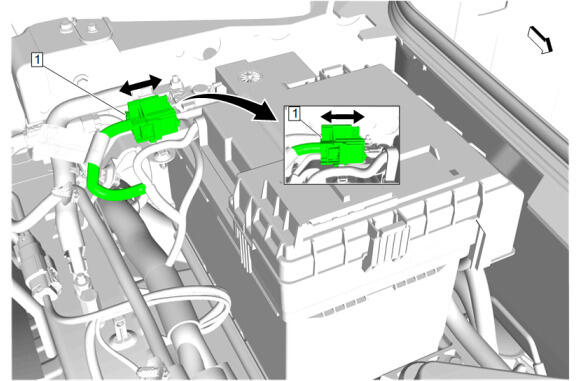

Lockout Connector
| Callout | Schematic Reference or Generic Name |
Scan Tool Reference | Service Information Part Name or Electronic Part Catalog Name |
|---|---|---|---|
| 1 | X75 High Voltage Service Lockout | Not Applicable | Inline Connector - High Voltage Service Lockout |

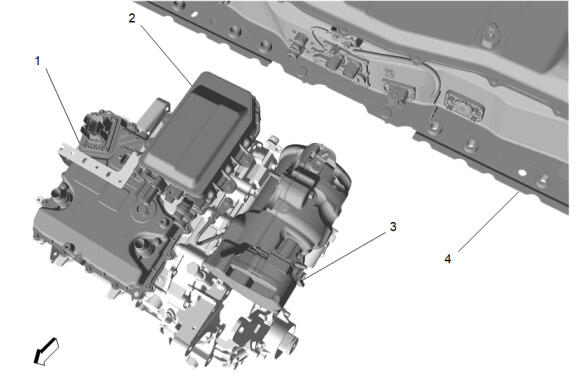

Hybrid/EV Front Components
| Callout | Schematic Reference or Generic Name |
Scan Tool Reference | Service Information Part Name or Electronic Part Catalog Name |
|---|---|---|---|
| 1 | K107 Drive Motor Control Module | Drive Motor Control Module | Drive Motor Power Inverter Module |
| 2 | E54V Hybrid/EV Coolant Heater | Hybrid/EV Battery Pack Heater parameters hosted by: Battery Energy Control Module | High Voltage Battery Heater |
| 3 | G1HV Air Conditioning With Motor Compressor | Electric A/C Compressor Control Module | Air Conditioning With Motor Compressor |
| 4 | A4 Hybrid/EV Battery Pack | Hybrid/EV Battery Pack parameters hosted by: Battery Energy Control Module | Hybrid/Electric Vehicle Battery Pack |

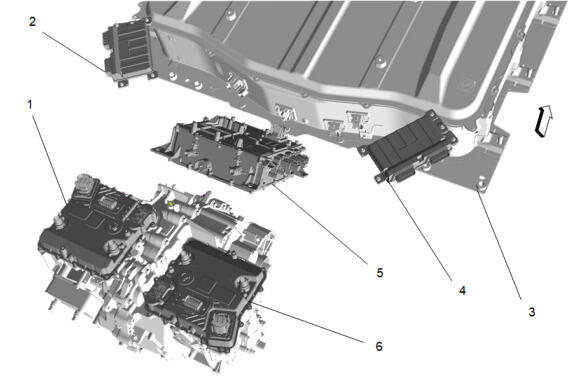

Hybrid/EV Rear Components
| Callout | Schematic Reference or Generic Name | Scan Tool Reference | Service Information Part Name |
|---|---|---|---|
| 1 | K107C Drive Motor Control Module 3 | Drive Motor Power Inverter Module | Drive Motor Power Inverter Module |
| 2 | K16 Battery Energy Control Module | Battery Energy Control Module 1 | Battery Energy Control Module 1 |
| 3 | A4 Hybrid/EV Battery Pack | Hybrid/EV Battery Pack parameters hosted by: Battery Energy Control Module | Hybrid/Electric Vehicle Battery Pack |
| 4 | K16B Battery Energy Control Module 2 | Battery Energy Control Module 2 | Battery Energy Control Module 2 |
| 5 | T18 Battery Charger | Battery Charger parameters hosted by: Battery Energy Control Module | Battery Charger |
| 6 | K107B Drive Motor Control Module 2 | Drive Motor Control Module 2 | Drive Motor Power Inverter Module |

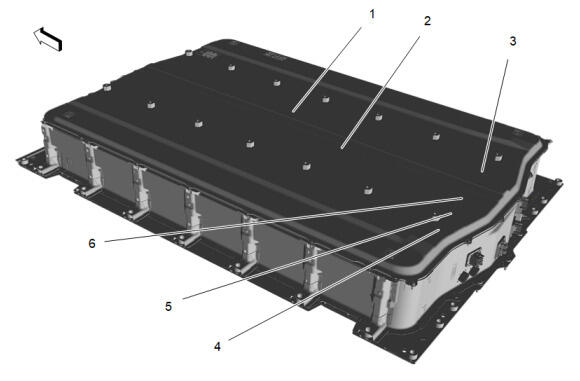

Hybrid/EV Battery Internal Components
| Callout | Schematic Reference or Generic Name | Scan Tool Reference | Service Information Part Name |
|---|---|---|---|
| 1 | C4AA Hybrid/Electric Vehicle Battery Pack Sections 1- Upper | Not Applicable | Internal component of: High Voltage Battery |
| 2 | C4BA Hybrid/Electric Vehicle Battery Pack Sections 2- Lower | Not Applicable | Internal component of: High Voltage Battery |
| 3 | K112 Hybrid/EV Battery Interface Control Module | Not Applicable | Internal component of: High Voltage Section Battery |
| 4 | K291 Hybrid/Electric Vehicle Battery Pack Communication Module | Not Applicable | Internal component of: High Voltage Battery |
| 5 |
|
Not Applicable | Internal component of: Hybrid/Electric Vehicle Battery Disconnect Relay |
| 6 | A28 Hybrid/Electric Vehicle Battery Disconnect Relay | Not Applicable | Internal component of: High Voltage Battery |
