Removal Procedure

  1. GM5902903Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Cradle (1) - Remove - Rear Suspension Cradle Removal and Installation

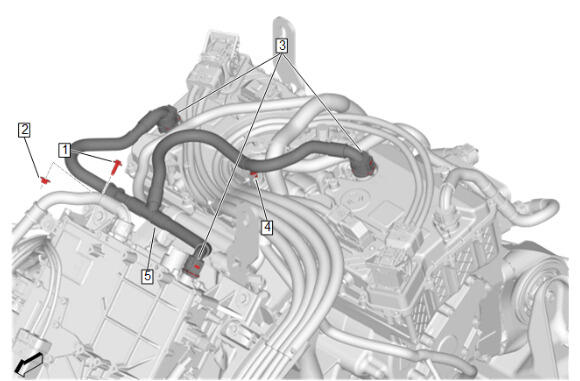

  2. GM5869207Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Bolt (1) - Remove

  3. Rear Electric Drive Transmission Module Coolant Hose (2) - Disconnect [3x]
  4. Remove the rear electric drive transmission module coolant hose retainer (3).
  5. Rear Electric Drive Transmission Module Coolant Hose (4) - Remove

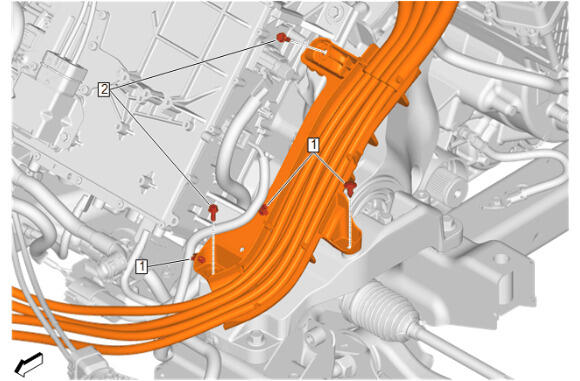

  6. GM5869208Courtesy of GENERAL MOTORS COMPANY

    Remove the battery positive cable shield bolt retainers (1).

  7. Battery Positive Cable Shield Bolt (2) - Remove [2x]

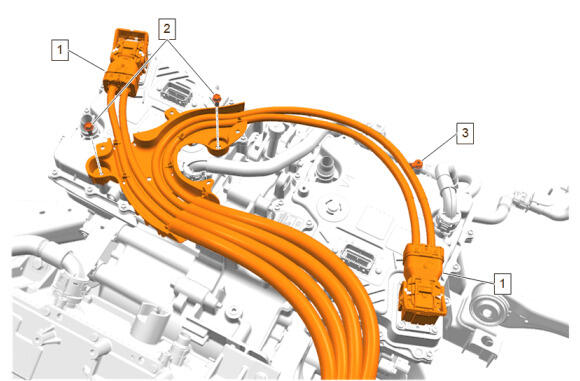

  8. GM5869209Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Disconnect the electrical connectors. (1)

  9. Battery Positive Cable Shield Bolt (2) - Remove [2x]
  10. Remove the battery positive and negative cable extension cable retainer (3).

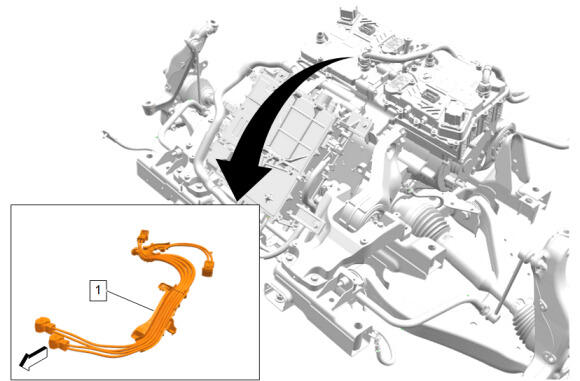

  11. GM5869210Courtesy of GENERAL MOTORS COMPANY

    Battery Positive and Negative Cable Extension Cable (1) - Remove
