Removal Procedure

  1. Using the scan tool, deflate the automatic level control air supply reservoir
  2. GM5807720

    With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation

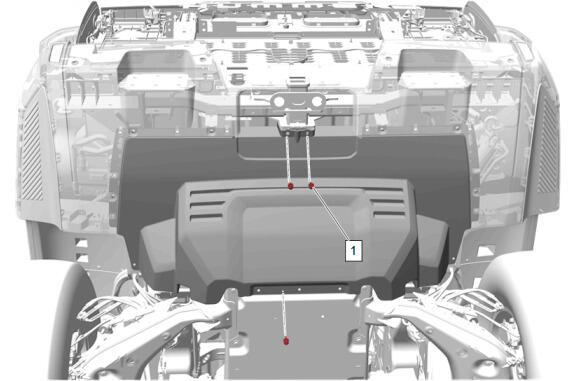

  3. GM6051511

    Underbody Rear Air Deflector Retainer (1) - Remove [3x]

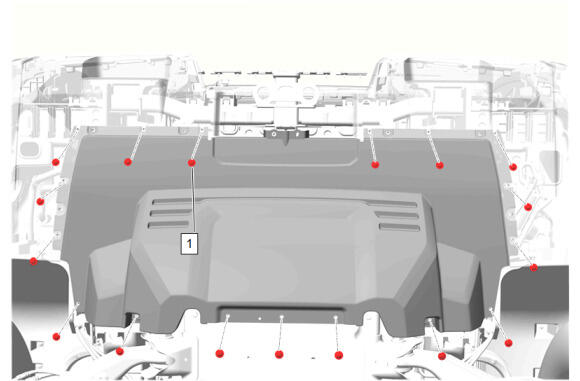

  4. GM6051510

    Underbody Rear Air Deflector Bolt (1) - Remove [17x]

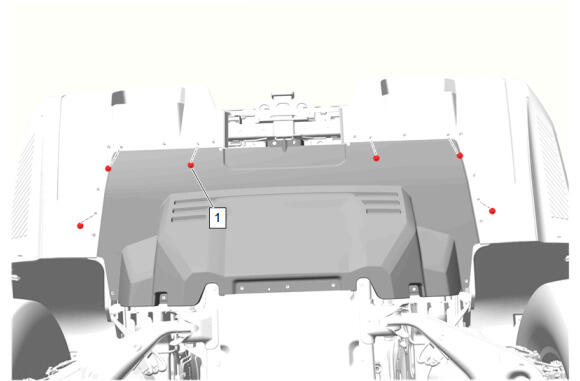

  5. GM6051509

    Underbody Rear Air Deflector Bolt (1) - Remove [6x]

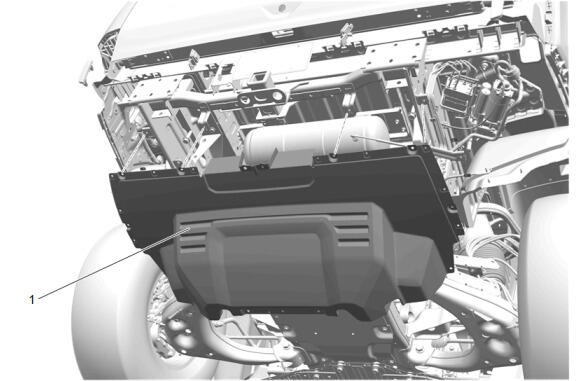

  6. GM5834765

    Underbody Rear Air Rear Deflector (1) - Remove

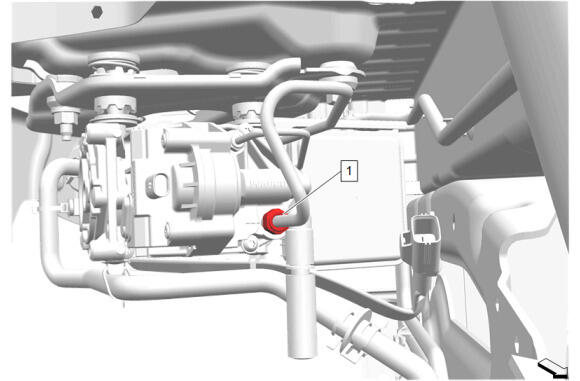

  7. GM6058007

    Automatic Level Control Air Compressor Tube (1) - Remove

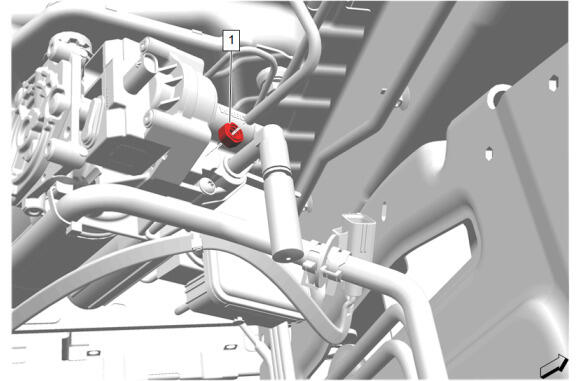

  8. GM6058012

    Automatic Level Control Air Compressor Tube Fitting (2) - Remove
