Front Suspension 4 Corner Leveling System Position Sensor Replacement: Removal

Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

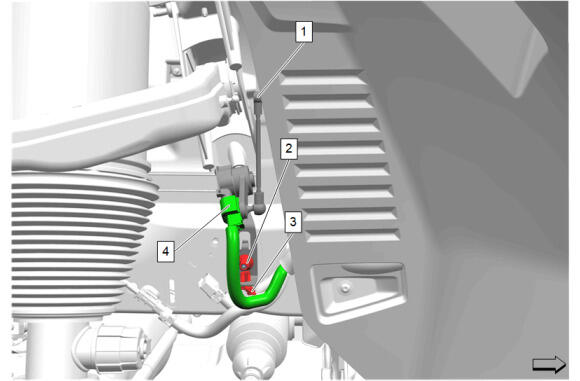

Disconnect the front suspension 4 corner leveling system position sensor link (1) from the front upper control arm.
Disconnect the electrical connector (4).

NOTE:

The nut is integral to the sensor, Do NOT remove separately.

Loosen the front suspension 4 corner leveling system position sensor (2).
Remove the front suspension 4 corner leveling system position sensor retainer (3).

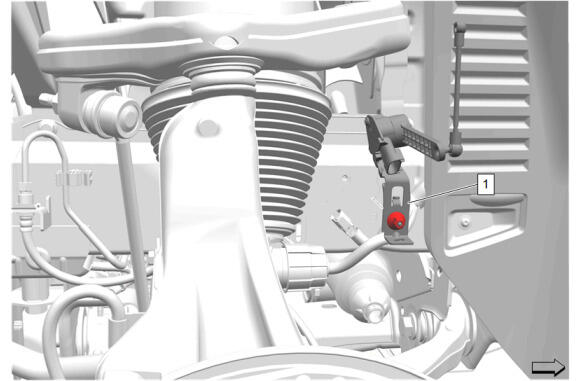

Remove the front suspension 4 corner leveling system position sensor (1) from the keyhole slot at the frame.
