Drive Motor Power Inverter Module Terminal Insulator Block Installation

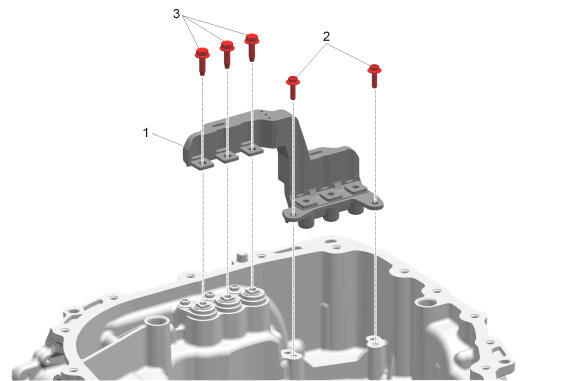

  1. GM5777848Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Terminal Insulator Block (1) - Install

  2. Drive Motor Power Inverter Module Connector Bolt (2) - Install and tighten [2x] - Fastener Specifications
  3. Drive Motor Power Inverter Module Connector Bolt (3) - Install and tighten [3x] - Fastener Specifications
