Installation Procedure

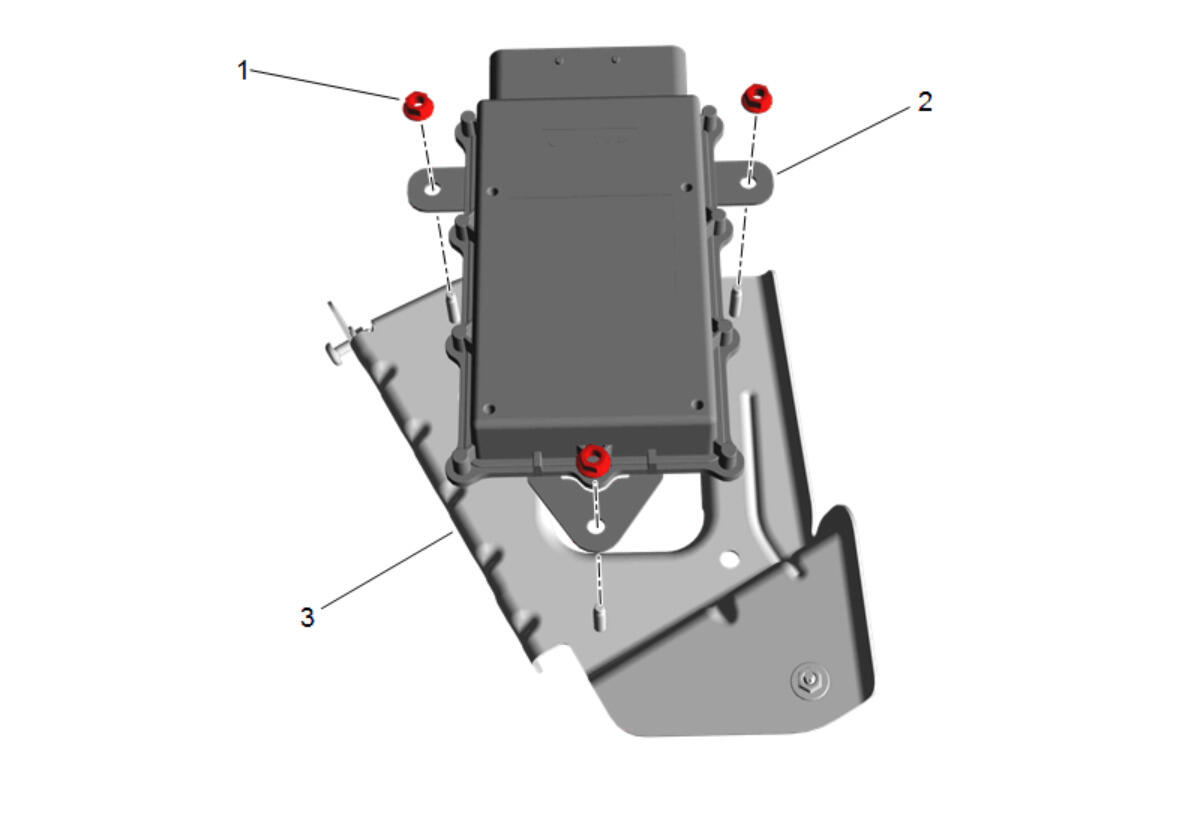

  1. GM5000840

    Electronic Suspension Control Module (2) @ Electronic Suspension Control Module Bracket (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Suspension Control Module Bracket Nut (1) - Install and tighten [3x] - Fastener Specifications

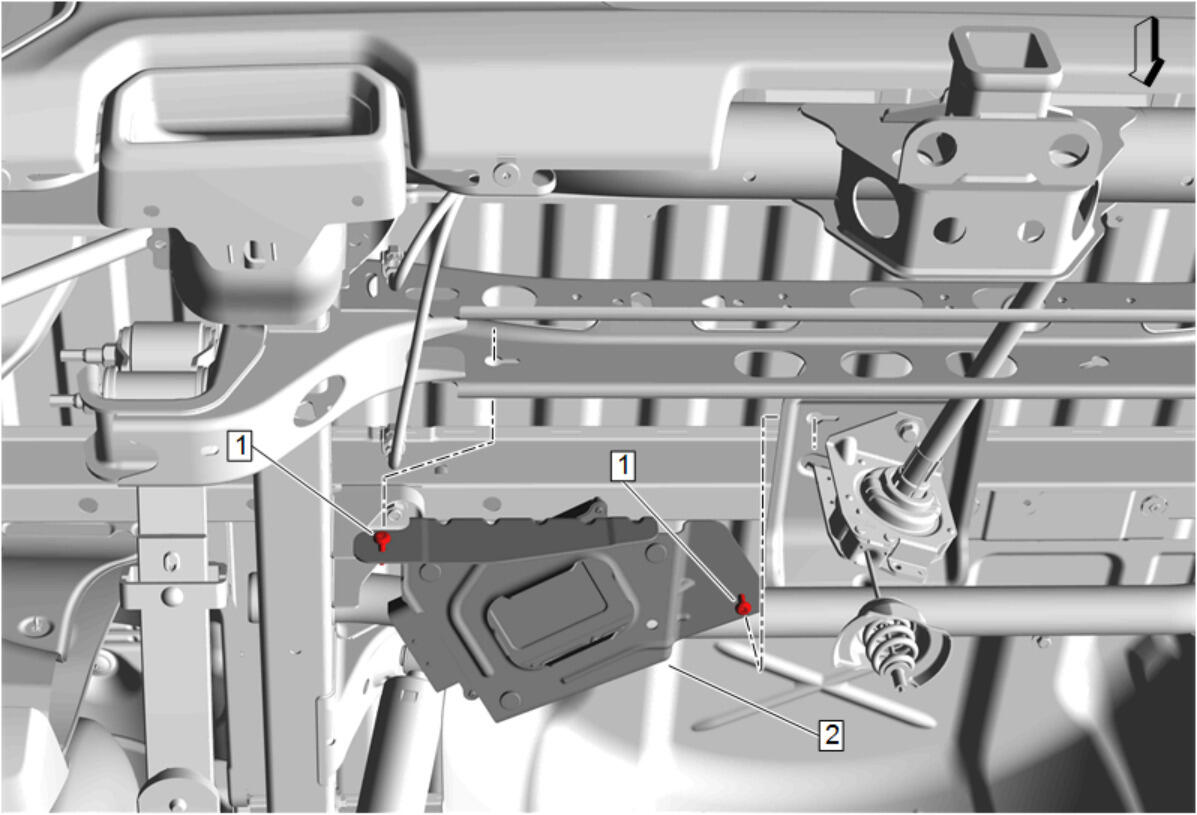

  3. GM5000838

    Electronic Suspension Control Module Bracket (2) - Install

  4. Electronic Suspension Control Module Bracket Bolt (1) - Tighten [2x] - Fastener Specifications
  5. Connect the electrical connector.
  6. Spare Tire - Install
  7. Remove the support and lower the vehicle.
  8. Perform the necessary programming and setup procedure: Control Module References
