Installation Procedure

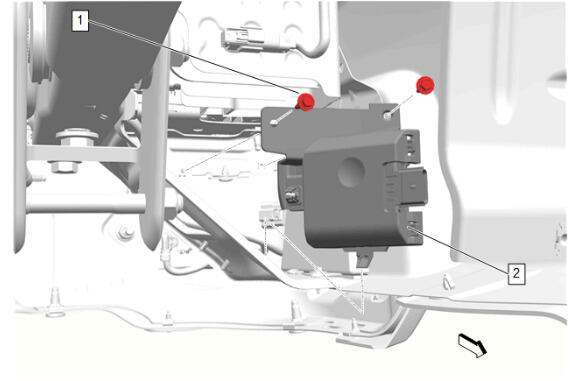

Courtesy of GENERAL MOTORS COMPANY

Side Obstacle Detection Control Module (2) - Install

CAUTION:

Side Object Sensing Alert Module Bolt (1) - Install and tighten - Fastener Specifications

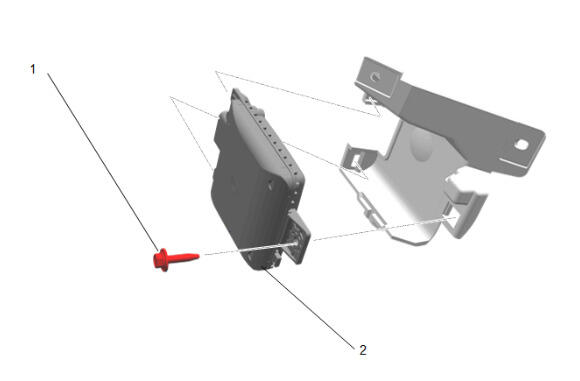

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Rear Parking Assist Alarm Sensor Bracket (2) - Install
Side Object Sensing Alert Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
Lower the vehicle.
Perform the necessary programming and setup procedure: Control Module References
