Installation Procedure

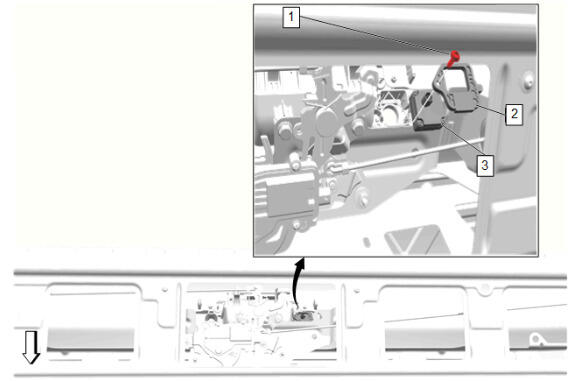

  1. GM6174080Courtesy of GENERAL MOTORS COMPANY

    Rearview Driver Information Camera (3) - Install

  2. Rearview Driver Information Camera Bracket (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rearview Driver Information Camera Bolt (1) - Install and tighten - Fastener Specifications
  4. Connect the electrical connector.
  5. GM6162805Courtesy of GENERAL MOTORS COMPANY

    Endgate Lock Cylinder (2) - Install

  6. Endgate Lock Cylinder Clip (1) - Install

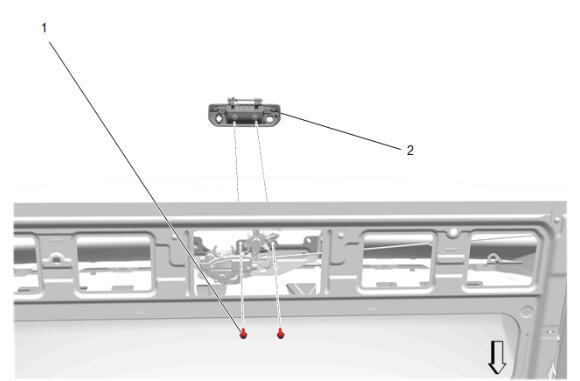

  7. GM6162816Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Latch Handle (2) - Install

  8. Pickup Box Endgate Latch Handle Bolt (1) - Install and tighten [2x] - Fastener Specifications

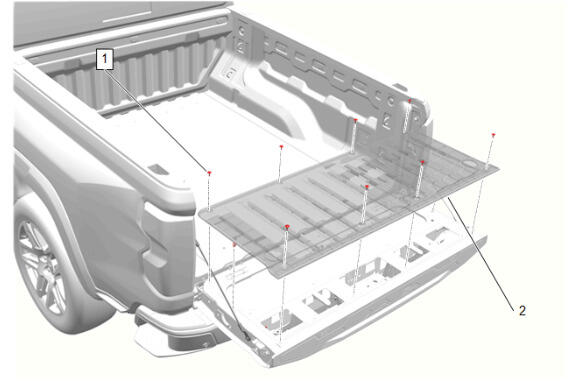

  9. GM6145434Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover (2) - Install

  10. Pickup Box Endgate Inner Panel Access Hole Cover Bolt (1) - Install and tighten [8x] - Fastener Specifications
  11. Close The Endgate
