Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. Spare Tire - Remove
  4. GM6182600Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Trailer Lamp Control Module - Disconnect

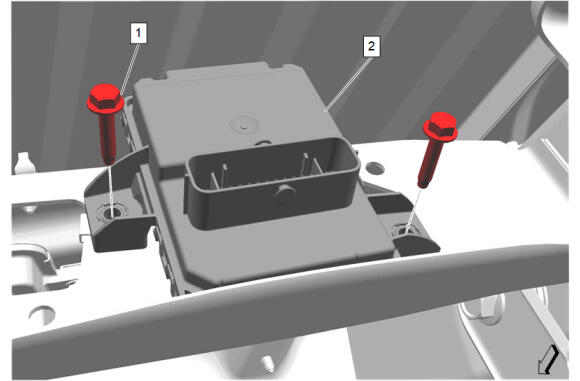

  5. GM6182602Courtesy of GENERAL MOTORS COMPANY

    Trailer Lamp Control Module Bolt (1) - Remove [2x]

  6. Trailer Lamp Control Module (2) - Remove
