Installation Procedure
Fuel Feed Front Pipe (1) - Install

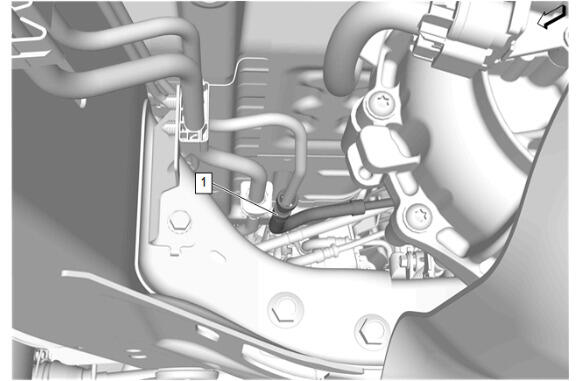

- Fuel Feed Front Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service

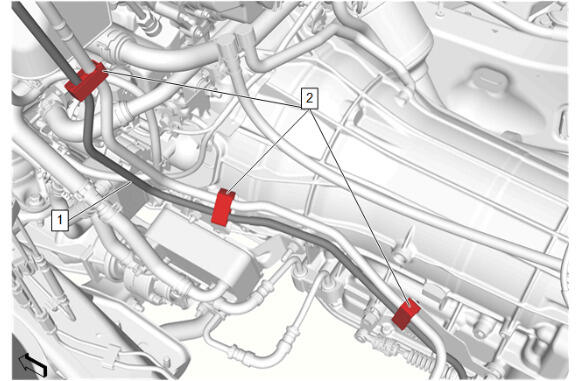

Fuel Feed Front Pipe (1) @ Fuel Feed and Evaporative Emission Canister Vent Pipe Clip (2) - Engage [3x]
- Remove the support and lower the vehicle.
- CAUTION:
Refer to Fastener Caution .

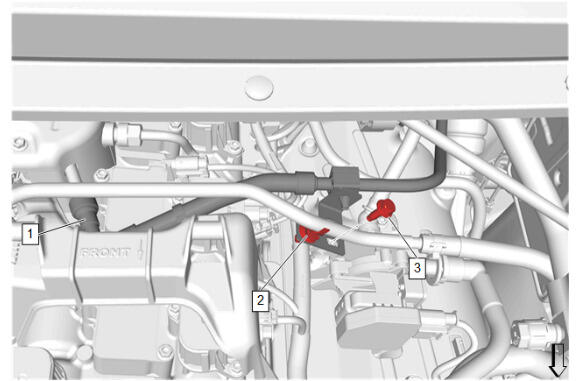

Fuel Feed Pipe Bolt (3) - Install and tighten - Fastener Specifications
- Transmission Vent Hose Clip (2) - Engage
- Fuel Feed Front Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service
{If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
If equipped, push down on the front of the intake manifold cover (2).
- {If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
