Removal Procedure
- Relieve the fuel system pressure. Fuel Pressure Relief
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
{If equipped} Intake Manifold Cover Bolt (1) - Remove [2x]
- If equipped, lift up on the front of the intake manifold cover (2).
{If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

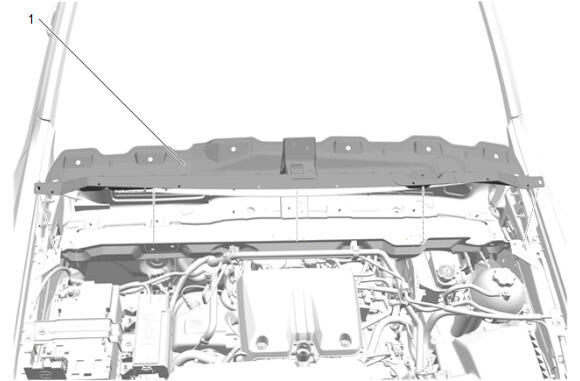

Plenum Front Panel Outer Reinforcement (1) - Remove - Plenum Front Panel Removal and Installation (UXA) , or Plenum Front Panel Removal and Installation (-UXA)

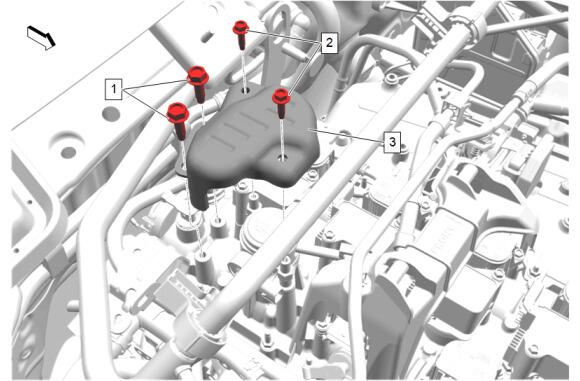

Fuel Pump Shield Bolt (1) - Remove [2x]
- Fuel Pump Shield Bolt (2) - Remove [2x]
- Fuel Injection Pump Bracket (3) - Remove
- WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise canceling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

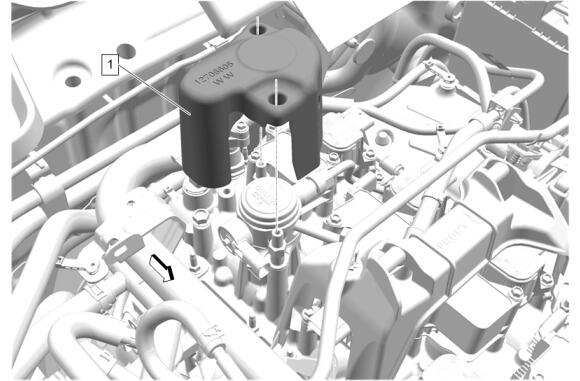

Fuel Pump Insulator (1) - Remove
Fuel Feed Intermediate Pipe Nut (1) @ Fuel Feed Intermediate Pipe - Loosen [2x]
Fuel Injection Fuel Feed Pipe Bracket Bolt (1) - Remove
- Fuel Feed Intermediate Pipe (2) - Remove and DISCARD
Fuel Feed Front Pipe (1) - Disconnect - Metal Collar Quick Connect Fitting Service
- Transmission Vent Hose Clip (2) - Disengage
- Fuel Feed Pipe Bolt (3) - Remove
- CAUTION:
Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage
Disconnect the electrical connector.

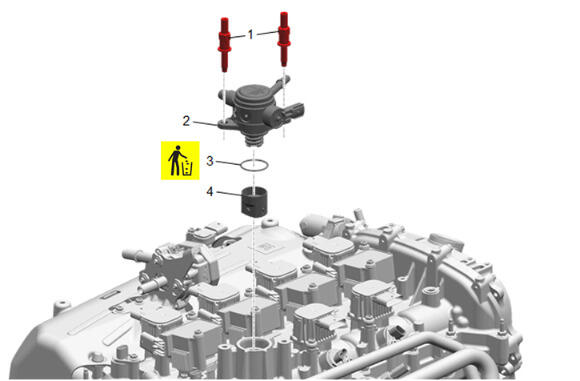

- Fuel Pump Stud (1) - Remove [2x]
- Fuel Pump (2) - Remove
- Fuel Pump Housing Seal (3) - Remove and DISCARD
- Valve Lifter Follower (4) - Remove
