Installation Procedure

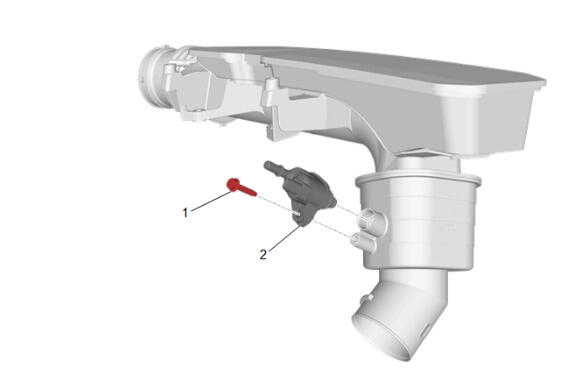

  1. GM6141720Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Solenoid Valve (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Evaporative Emission Canister Purge Solenoid Valve Bolt (1) - Install and tighten - Fastener Specifications
  3. GM6141089Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Install

  4. GM6141084Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications

  5. Evaporative Emission Canister Purge Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service
  6. Connect the electrical connector.
  7. GM6141079Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications

  8. Positive Crankcase Ventilation Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  9. Air Cleaner Outlet Duct Nut (1) - Install and tighten [2x] - Fastener Specifications
  10. GM6148346Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  11. GM6148335Courtesy of GENERAL MOTORS COMPANY

    If equipped, push down on the front of the intake manifold cover (2).

  12. {If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
