Installation Procedure

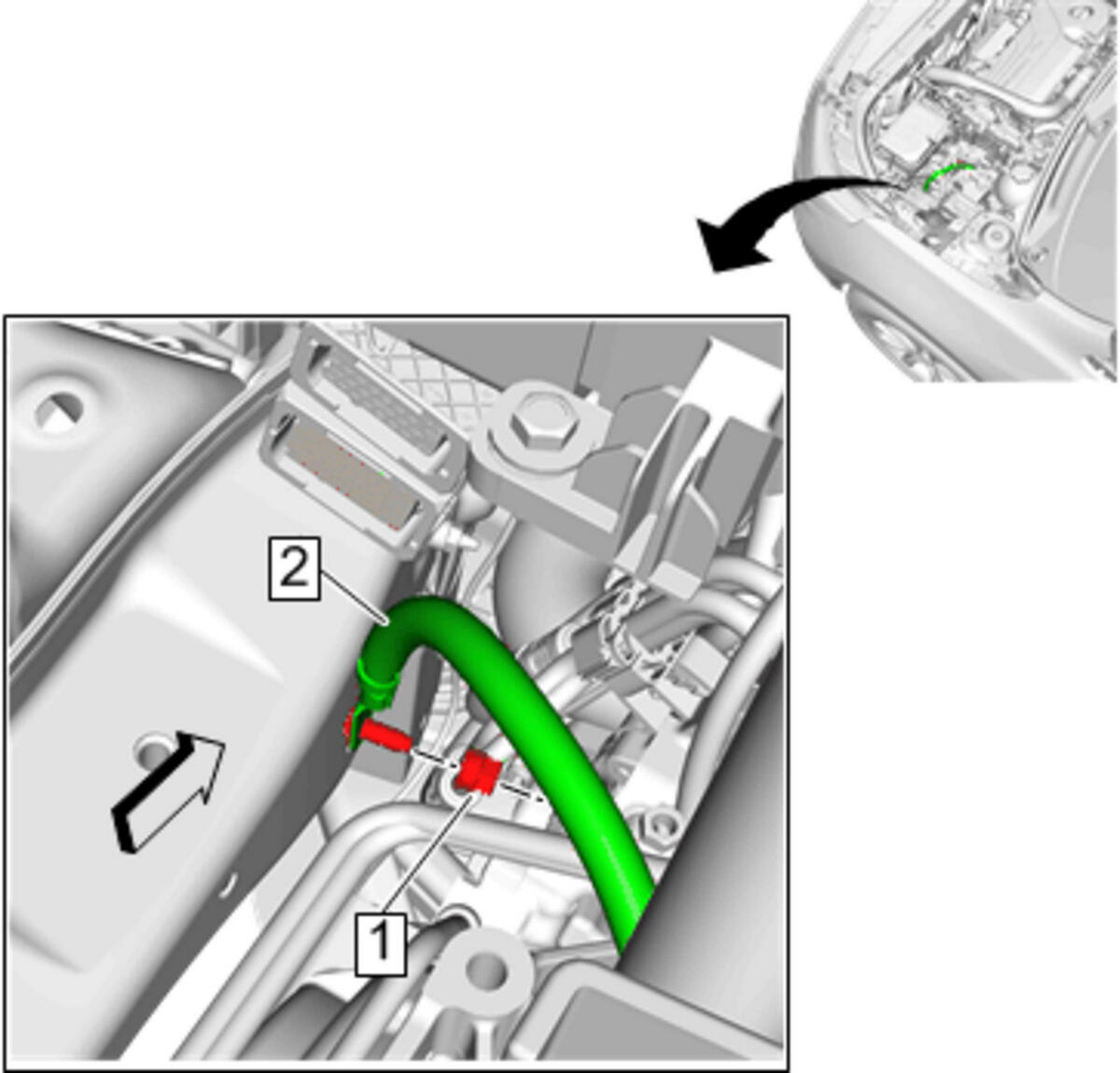

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Battery Negative Cable Extension Cable (2) - Install
Battery Negative Cable Ground Nut (1) - Install and tighten 9 N.m (80 lb in)

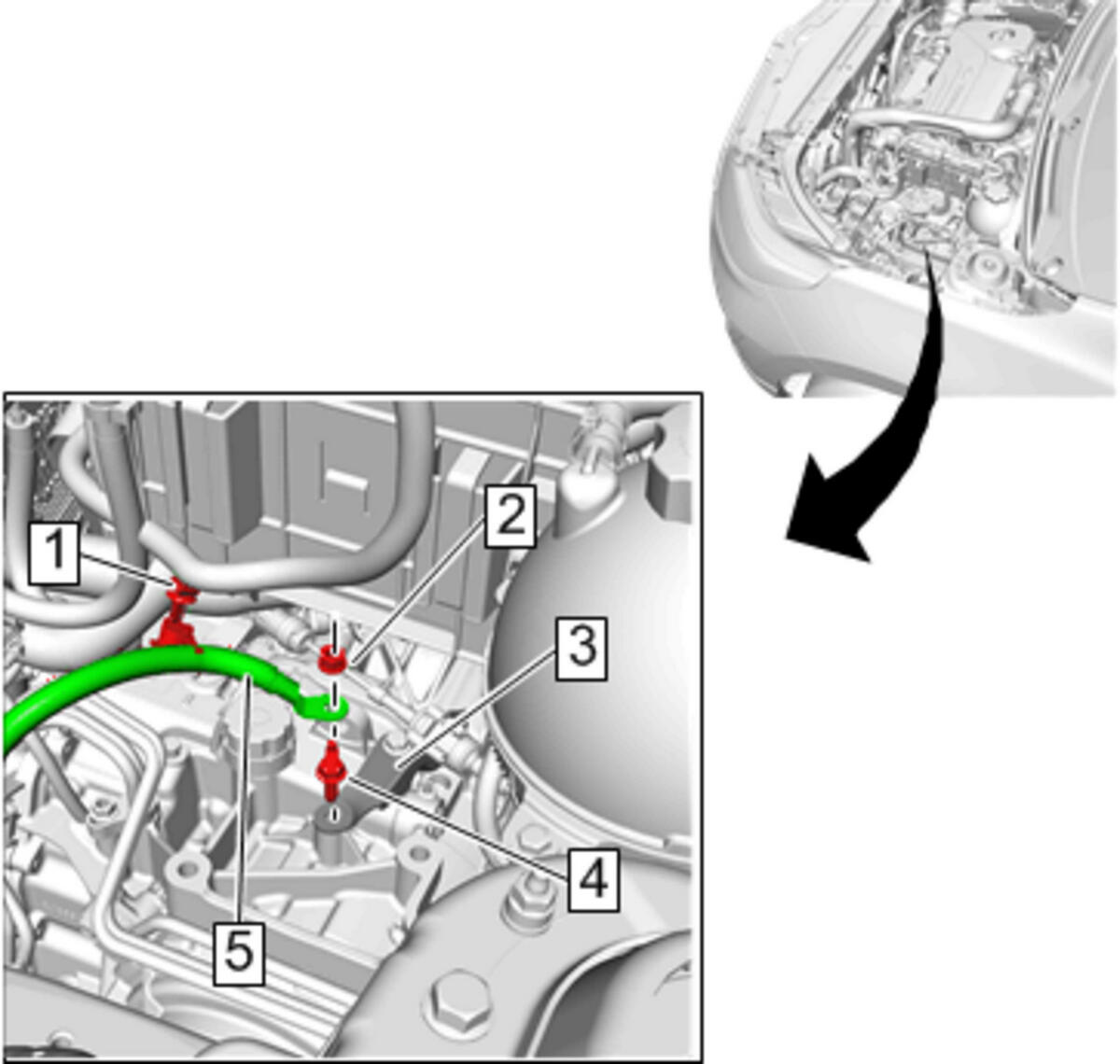

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Transmission mounts removed for clarity.

Automatic Transmission Range Selector Lever Cable Bracket Stud (4) - Install and tighten 22 N.m (16 lb ft)
Battery Negative Cable Extension Cable (5) - Install
Battery Negative Cable Ground Nut (2) @Transmission Case - Install and tighten 22 N.m (16 lb ft)
Install the battery tray. Battery Tray Replacement
