Power Transfer Unit Input Shaft Seal and Idler Gear Shaft Tube O-ring Removal

Courtesy of GENERAL MOTORS COMPANY

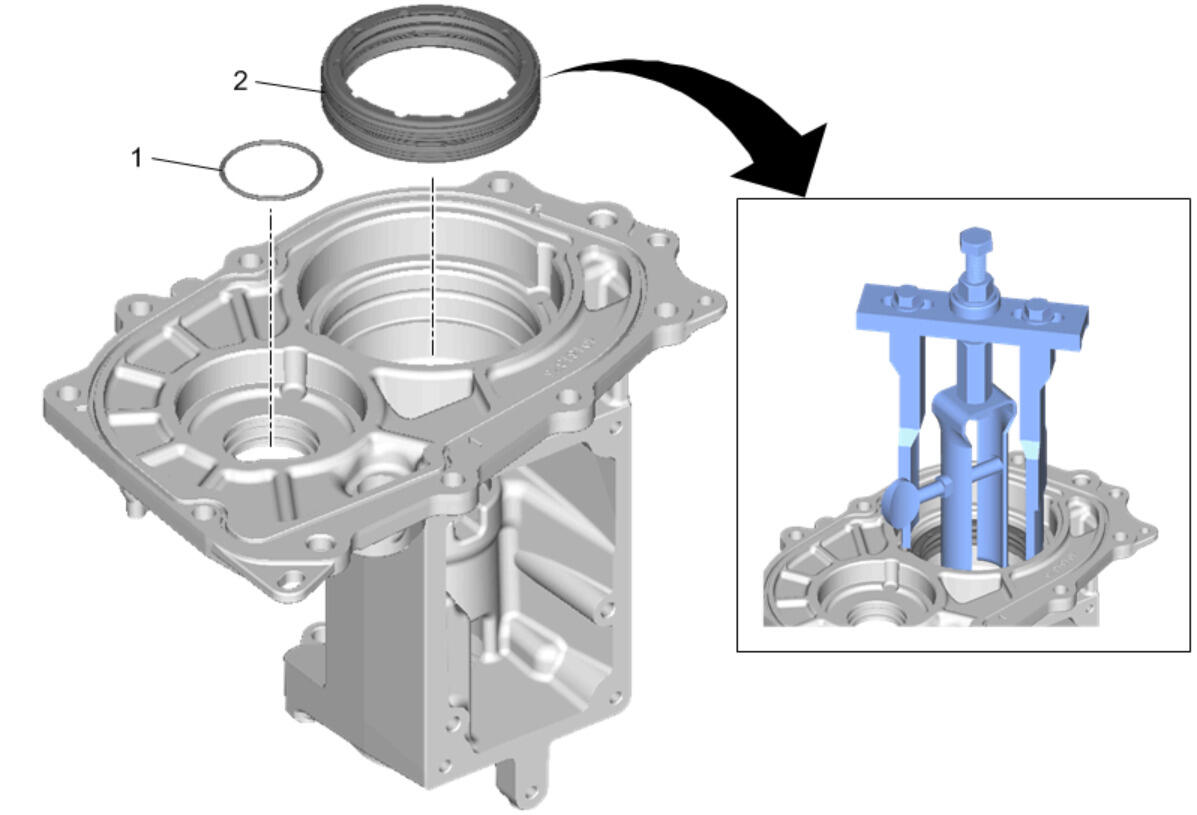

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Power Transfer Unit Input Shaft Seal- Rear Procedure Remove and DISCARD the seal.
2	Power Transfer Unit Input Shaft Seal - Rear Special Tools DT-26941 Bushing and Bearing Remover DT-45124 Removal Bridge Equivalent regional tools: Special Tools

Callout

Component Name

Power Transfer Unit Input Shaft Seal- Rear
Procedure
Remove and DISCARD the seal.

Power Transfer Unit Input Shaft Seal - Rear

Special Tools

Equivalent regional tools: Special Tools
