Installation Procedure

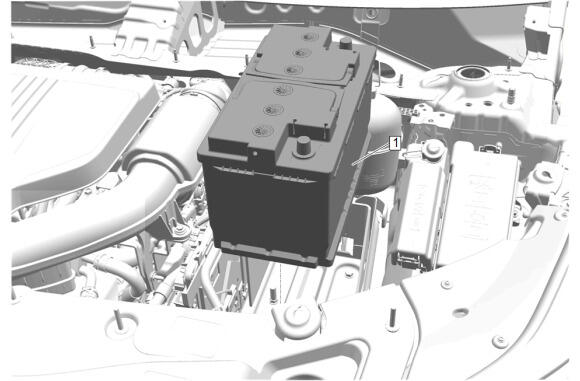

Battery (1) - Install

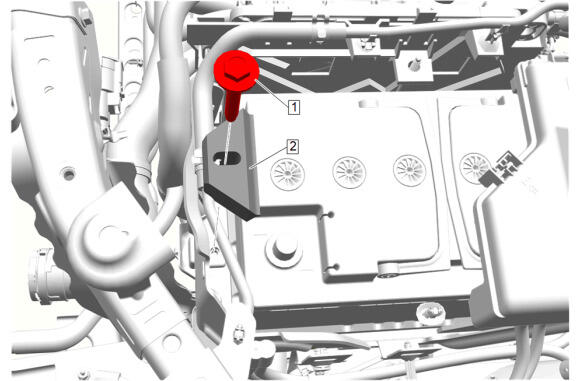

Battery Hold Down Retainer (2) - Install
- Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications

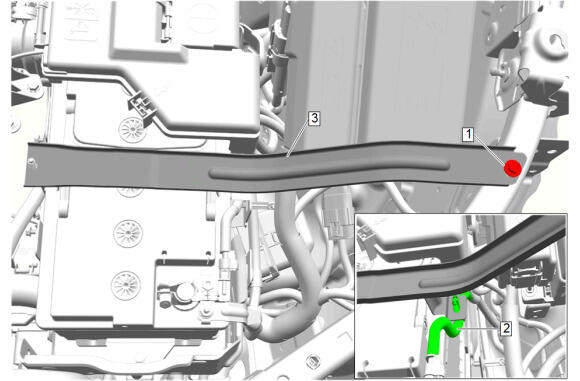

Battery Hold Down Retainer (3) - Install
- Install the electrical connector (2).
- Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
Engine Control Module Bracket (2) - Install
- Battery Hold Down Retainer Nut (1) - Install and tighten - Fastener Specifications

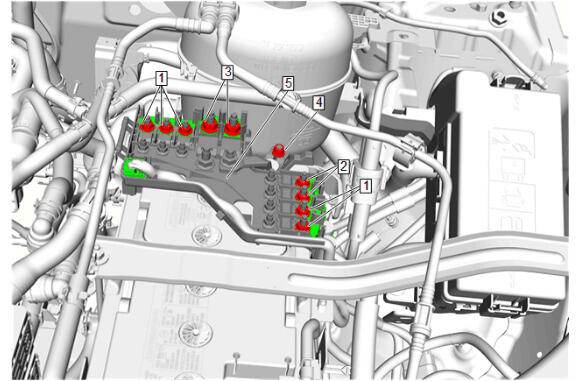

Battery Distribution Engine Compartment Fuse Block (5) - Install
- Connect the electrical connector.
- Install wiring harness terminals.
- Battery Negative Post Clamp Nut (4) - Install and tighten - Fastener Specifications
- Battery Positive Cable Junction Block Nut (3) - Install and tighten [2x] - Fastener Specifications
- Engine Wiring Harness Fuse Block Nut (2) - Install and tighten [2x] - Fastener Specifications
- Body Front Wiring Harness Nut (1) - Install and tighten [5x] - Fastener Specifications

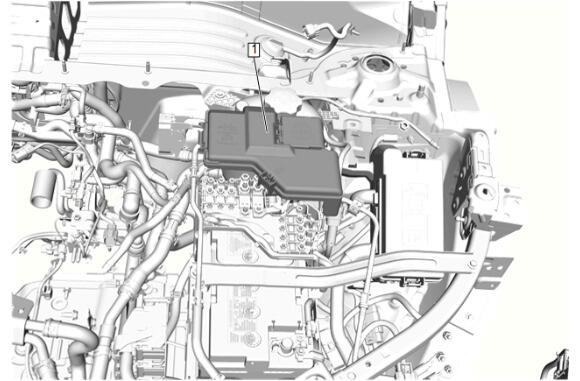

Power Distributor Fuse Block Cover (1) - Install
Battery Monitor Module (5) - Install
- Battery Negative Post Clamp Nut (4) - Tighten - Fastener Specifications
- Connect the electrical connector. (3)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
