Installation Procedure

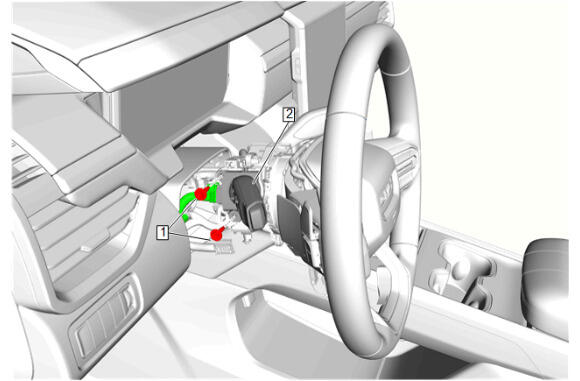

  1. GM6455256Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Fastener Caution .

  3. Turn Signal Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  4. GM6467074Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (2) - Install

  5. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  6. GM6467073Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  7. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  8. GM6467072Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  9. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  10. Turn the steering wheel to the centered position.
  11. GM6472501Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
